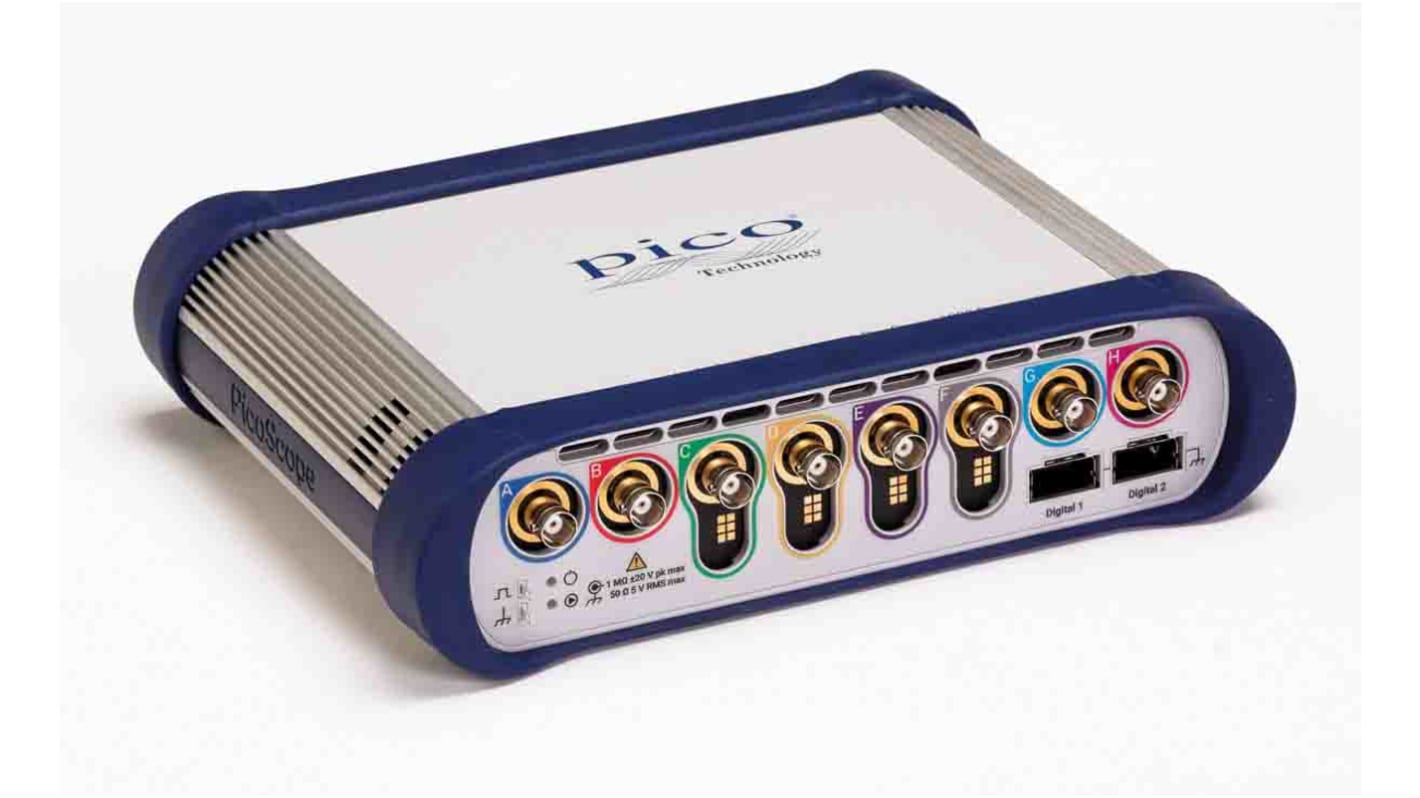

PicoScope 6000E Series, 500 MHz PC Based Oscilloscope 8-Channel
- RS Stock No.:
- 201-1829
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PicoScope 6804E
- ผู้ผลิต:
- Pico Technology
ยอดรวมย่อย (1 ชิ้น)*
THB461,699.03
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB494,017.96
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 23 พฤศจิกายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB461,699.03 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 201-1829
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PicoScope 6804E
- ผู้ผลิต:
- Pico Technology
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Pico Technology | |
| Product Type | Oscilloscope | |
| Bandwidth | 500MHz | |
| Number of Channels | 8 | |
| Model Number | 6804E | |
| Oscilloscope Type | PC Based | |
| Interface Type | USB 3.0 | |
| Series | PicoScope 6000E | |
| Height | 61.50mm | |
| Width | 192mm | |
| Standards/Approvals | REACH, RoHS, WEEE | |
| Length | 245mm | |
| Maximum Vertical Sensitivity | 4V/div | |
| Vertical Resolution | 8 bit | |
| Power Source | AC Adapter | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Minimum Time Base | 1ns/div | |
| Rise Time | 850ps | |
| Maximum Time Base | 5000s/div | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Pico Technology | ||
Product Type Oscilloscope | ||
Bandwidth 500MHz | ||
Number of Channels 8 | ||
Model Number 6804E | ||
Oscilloscope Type PC Based | ||
Interface Type USB 3.0 | ||
Series PicoScope 6000E | ||
Height 61.50mm | ||
Width 192mm | ||
Standards/Approvals REACH, RoHS, WEEE | ||
Length 245mm | ||
Maximum Vertical Sensitivity 4V/div | ||
Vertical Resolution 8 bit | ||
Power Source AC Adapter | ||
Minimum Vertical Sensitivity 2mV/div | ||
Minimum Time Base 1ns/div | ||
Rise Time 850ps | ||
Maximum Time Base 5000s/div | ||
- COO (Country of Origin):
- GB
PicoScope 6000E Series Oscilloscope, 500MHz Bandwidth, 8 Channels - PicoScope 6804E
This oscilloscope is a PC-connected instrument designed for capturing and analysing fast electrical signals in laboratory and field test setups. It connects via USB 3.0 to provide high-throughput data transfer to host software and is mains powered for continuous operation. The unit is suitable where multi-channel, time-domain examination of signals is required and supports mixed-signal workflows in a Compact footprint.
Features and Benefits:
• 500MHz bandwidth for resolving high-frequency components
• 8-channel capture enabling simultaneous signal comparison
• 1ns/div minimum time base for fine temporal detail
• 850ps rise time for accurate edge characterisation
• 2mV/div sensitivity to detect low-amplitude signals
• 8-channel capture enabling simultaneous signal comparison
• 1ns/div minimum time base for fine temporal detail
• 850ps rise time for accurate edge characterisation
• 2mV/div sensitivity to detect low-amplitude signals
Applications
• Suitable for debugging high-speed digital interfaces
• Ideal for multi-channel analogue signal acquisition
• Used with automated test systems requiring USB 3.0 throughput
• Can be used for waveform logging in development labs
• Used for validation of timing-sensitive circuitry
• Ideal for multi-channel analogue signal acquisition
• Used with automated test systems requiring USB 3.0 throughput
• Can be used for waveform logging in development labs
• Used for validation of timing-sensitive circuitry
What Interface is used to transfer captured data to a PC?
It uses a USB 3.0 connection to move waveform data rapidly to host software.
How is the instrument powered for continuous measurements?
The unit operates from mains supply to support extended test durations.
What vertical resolution does it provide for waveform quantisation?
The device samples with an 8-bit vertical resolution for amplitude representation.
What are the typical timebase and maximum time span available?
The minimum selectable timebase is 1ns/div and the maximum is 5000s/div.
What approvals or environmental standards apply to the design?
The instrument complies with REACH, RoHS and WEEE regulatory standards.
