Fluke 116 Digital Digital Multimeter True RMS, 600 μA ac, 600 μA dc, 600 V ac

ดู Multimeters ทั้งหมด
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด

ตัวเลือก

สินค้านี้ไม่มีจำหน่ายในขณะนี้ ลองดูสินค้าอื่นที่เราแนะนำ

presentation
Fluke 117 Fluke 117 Digital Digital Multimeter True RMS, 10 A ac, 10 A dc, 600 V ac
RS Stock No.
616-1460

Each

THB11,647.00

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB12,462.29

(รวมภาษีมูลค่าเพิ่ม)

RS Stock No.:
616-1476
Distrelec หมายเลขบทความ:
176-05-439
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
FLUKE-116 EUR
ผู้ผลิต:
Fluke
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Fluke

Product Type

Multimeter

Multimeter Type

Digital

Display Type

Digital

Resistance Resolution

100mΩ

Model Number

116

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature

Maximum AC Voltage Measurement

600V ac

Maximum DC Voltage Measurement

600V dc

Maximum DC Current Measurement

600μA dc

Maximum AC Current Measurement

600μA ac

Maximum Resistance Measurement

40mΩ

True RMS

Yes

AC Current Accuracy

±1.5 % rdg + 3 Digits

DC Current Accuracy

±1 % rdg + 2 Digits

AC Voltage Accuracy

±1 % rdg + 3 Digits

DC Voltage Accuracy

±0.5 % rdg + 2 Digits

AC Voltage Resolution

0.1mV ac

AC Current Resolution

0.1μA ac

DC Current Resolution

0.1μA dc

DC Voltage Resolution

0.1 mV dc

Maximum Frequency

1kHz

Minimum Operating Temperature

-10°C

Resistance Measurement Accuracy

±1.5 % rdg + 2 Digits

Maximum Operating Temperature

50°C

Battery Life

400h

Width

84mm

Standards/Approvals

No

Weight

550g

Height

167mm

Length

46mm

Safety Category Level

CAT III

Battery Type

Alkaline

Safety Category Voltage

600V

สถานะRoHS: ได้รับการยกเว้น

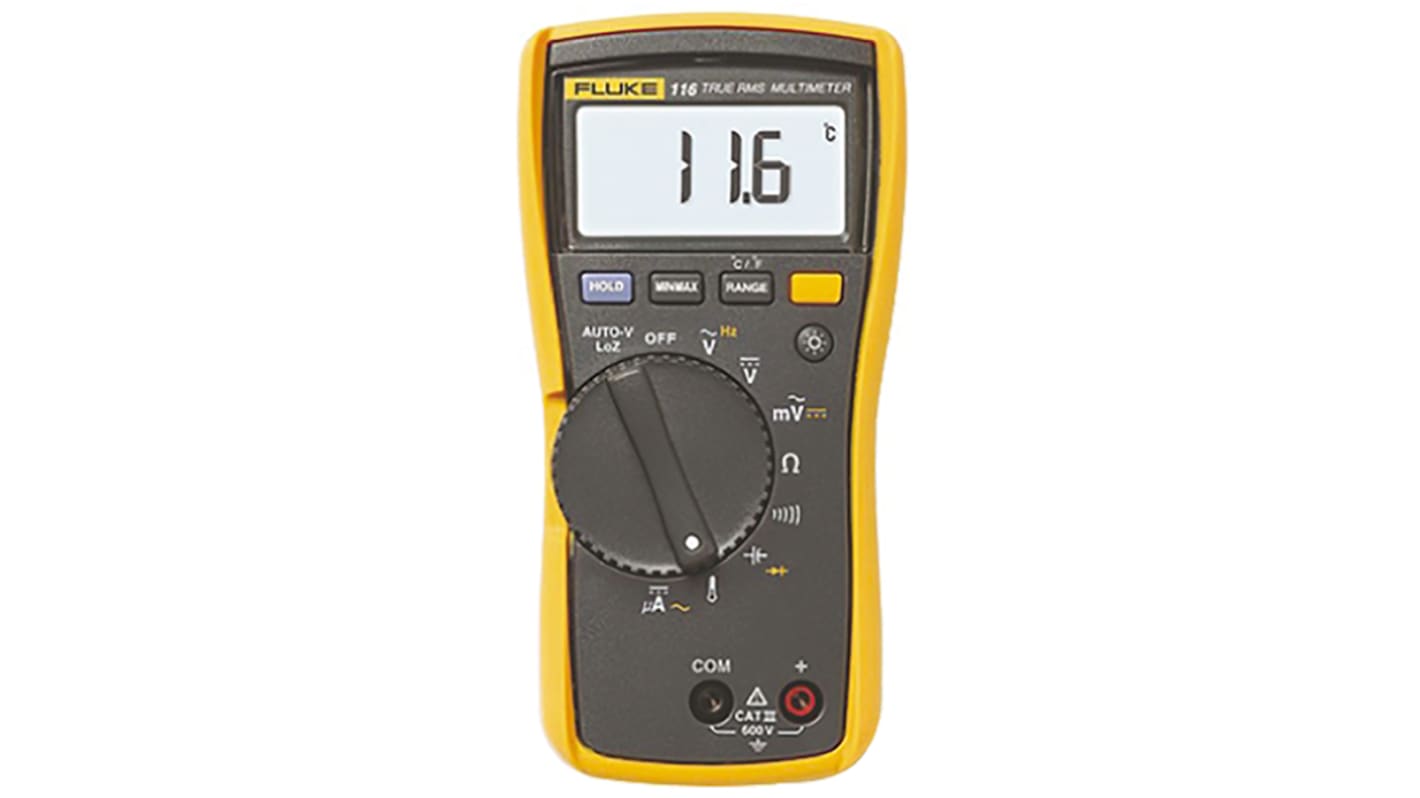

Fluke Multimeter, 600V Maximum DC Voltage Measurement, True RMS Functionality - FLUKE-116 EUR


This multimeter is a Compact handheld instrument designed for HVAC and industrial electrical troubleshooting, combining temperature measurement and microamp capability to assess flame sensors and system performance. It provides true-RMS measurements for accurate readings on non-sinusoidal signals and is intended for field use in automation, electronics and mechanical environments.

Features & Benefits


• True-RMS measurement improves accuracy on distorted waveforms
• 600V and 600A ranges support high-voltage and high-current tasks
• Microamp input checks flame sensors and low-current circuits
• 1kHz frequency range captures up to 50kHz on voltage inputs
• LoZ mode prevents false readings from ghost voltages
• 400h battery life enables extended field operation without frequent replacement

**Applications**


• Suitable for HVAC technicians diagnosing burner control systems
• Ideal for electricians verifying AC and DC supply integrity
• Used for testing flame-sensor circuits and microamp signals
• Can be used with temperature probes for refrigeration maintenance
• Used for capacitance and frequency checks in control panels

What battery type does it use and how long will it operate typically?


It uses a 9V alkaline cell and typically runs for around 400h without the backlight.

How does the instrument perform under poor lighting conditions?


A large white LED backlight illuminates the display for work in dim environments.

What protection and safety features are incorporated for field use?


It is rated for CAT III 600V with 6kV Peak surge protection per IEC 61010-1 and pollution degree 2.

Which measurements include capacitance and what ranges are available?


Capacitance is measured from 1nF to 9999μF with specified accuracy changing above 100μF.

How does the meter capture transient signal behaviour?


Min/Max/Average logging with elapsed time records signal fluctuations during monitoring.

Standards

From Fluke, the 116 is designed for heating, ventilation and Air conditioning (HVAC) engineers. The model includes temperature measurement and microamp current ranges to quickly troubleshoot HVAC problems.

Contents

TL75 Test Leads, 80BK Integrated Temperature Probe, holster, user’s manual and 9V battery (installed)
