RS PRO IDM201 Bench Digital Multimeter True RMS

ดู Multimeters ทั้งหมด
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
Every Spend Counts with RS PRO
RS Stock No.:
123-3219
ผู้ผลิต:
RS PRO
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

RS PRO

Multimeter Type

Bench

Product Type

Multimeter

Model Number

IDM201

Display Type

Digital

Functions Measured

AC Voltage, Resistance, AC Current, DC Voltage, Capacitance, Frequency, DC Current

Maximum DC Voltage Measurement

600V dc

True RMS

Yes

Maximum Frequency

20MHz

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Battery Life

1200h

Standards/Approvals

No

Weight

1.3kg

Height

73mm

Width

218 mm

Length

195mm

Safety Category Level

CAT III, CAT II

Battery Type

1.5 V AA LR6, AM3

Safety Category Voltage

500V

COO (Country of Origin):
TW

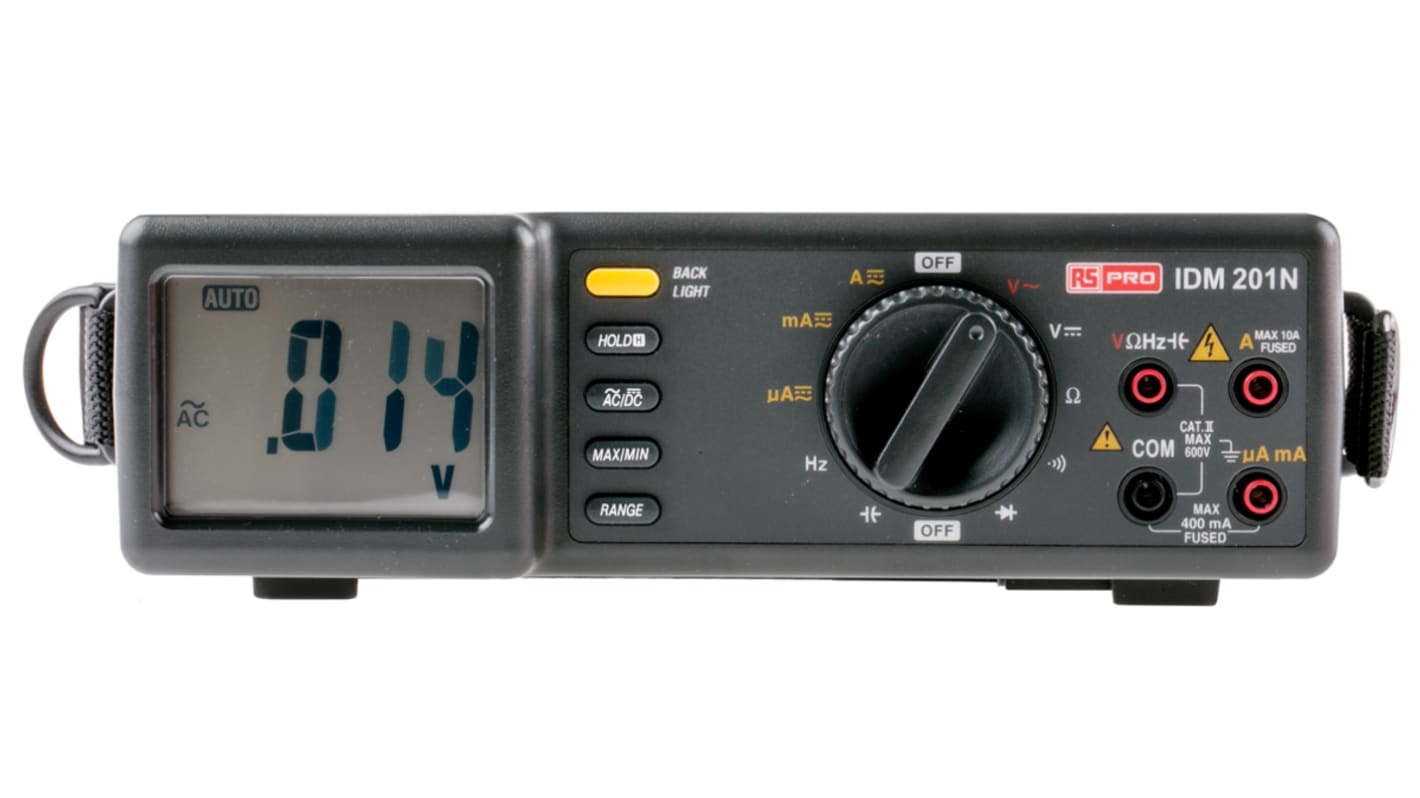

RS Pro IDM 201N Bench Multimeter


RS PRO IDM 201N multimeter is a versatile and portable bench-type measurement instrument. These meters can measure capacitance, voltage, electrical current, frequency, resistance, diode check and continuity test. Suitable for the workshop and laboratory-based engineers and technicians, as well as field service engineers who require a self-powered instrument for maintenance, test or repair activities.

The instrument can be powered from an ac mains supply between 90 V ac and 263 V ac or by internal batteries as required. An integral compartment provides storage space or test leads, spare batteries and fuses. The instrument uses a 3 digit (2000 Count) backlit LCD display with annunciators, polarity and automatic decimal point placement. The auto-range function can be disabled for convenience and maximum/minimum and data-hold functions can also be selected if necessary.

RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits


2000 display count LCD backlit display with annunciators

9 functions / 39 ranges

Fully autoranging with manual override

MIN/MAX and display HOLD functions

Measures up to 600 V with protection against 600 V input on resistance ranges

Current ranges fully fuse protected

Test lead storage compartment provided in the top of the case

AC-DC dual power sources

Side strap allows the unit to be carried with one hand when used away from the bench

Can also be transported via the neck strap

Mains operation or battery powered

Power Requirement: AC; 90 V → 264 V, 50/60 Hz, <10 V A, DC; 1.5 V AA LR6 battery x 6 (not supplied)

Complies with: IEC 61010-1 CAT III 300 V, CAT II 600 V

Dimensions: 218 mm (W) x 195 mm (L) x 73 mm (H)

Weight: 1.3 kg

What does it measure?


DC and AC voltages - up to 600V

DC and AC current - up 10A with 10mA resolution

Resistance and continuity checking - up to 2MΩ

Capacitance - up to 2mF

Frequency - up to 20MHz

What does it include?


Pair of Test Leads

User Manual

Mains Power Cable

Carrying Strap

Pair of Crocodile Clips

Typical Applications:

A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:

Electrical and electronic industries

Safety guidelines

When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
