Wachendorff LED Multi-Function Panel Meters for Voltage, Current, Temperature, 45.5 mm x 93 mm
- RS Stock No.:
- 819-9726
- Distrelec หมายเลขบทความ:
- 110-27-315
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DA9602R0
- ผู้ผลิต:
- Wachendorff
ยอดรวมย่อย (1 ชิ้น)*
THB5,503.25
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB5,888.48
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 13 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 5 ชิ้นจะส่งได้หลังจากวันที่ 16 เมษายน 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 5 ชิ้นจะส่งได้หลังจากวันที่ 23 เมษายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB5,503.25 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 819-9726
- Distrelec หมายเลขบทความ:
- 110-27-315
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DA9602R0
- ผู้ผลิต:
- Wachendorff
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Wachendorff | |
| Properties Measured | Voltage, Current, Temperature | |
| Product Type | Multi-Function Panel Meters | |
| Display Type | LED | |
| Cutout Height | 45.5mm | |
| Number of Digits | 5 | |
| Depth | 35mm | |
| Cutout Width | 93mm | |
| Digit Height | 16mm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Wachendorff | ||
Properties Measured Voltage, Current, Temperature | ||
Product Type Multi-Function Panel Meters | ||
Display Type LED | ||
Cutout Height 45.5mm | ||
Number of Digits 5 | ||
Depth 35mm | ||
Cutout Width 93mm | ||
Digit Height 16mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- BR

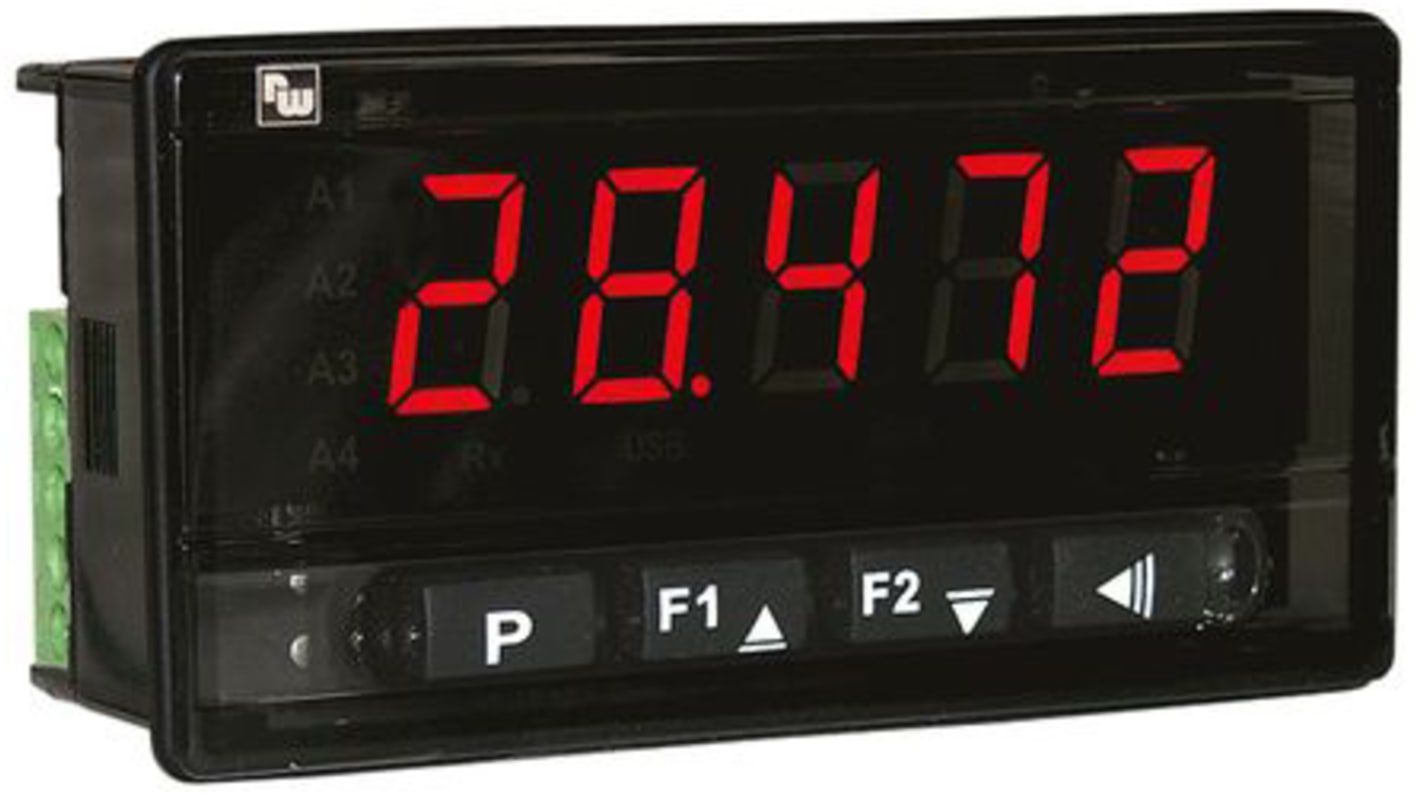

DA9602R - Universal Panel Meter
The DA9602 is a quite versatile process indicator with totalizing function. With a wide list of input types - thermocouples, thermoresistance, voltage and current - the DA9602 is capable of measuring the majority of the variables and sensors encountered in industrial processes.
It contains two alarms (six functions), sensor offset, configuration of parameters protected by password, USB communication, indication in degrees Celsius (°C) or Fahrenheit (°F), among others.
Universal panel meter in 96 x 48 mm DIN format
Extremely short mounting depth of 32 mm
Universal input for process signals, TC and RTD
16 mm high red LED display
2 alarm outputs as relay
Protection IP65 from the front
Programming via buttons or software (USB-Port)
Power supply is 100 to 240 Vac, 6 VA
Wachendorff Series
