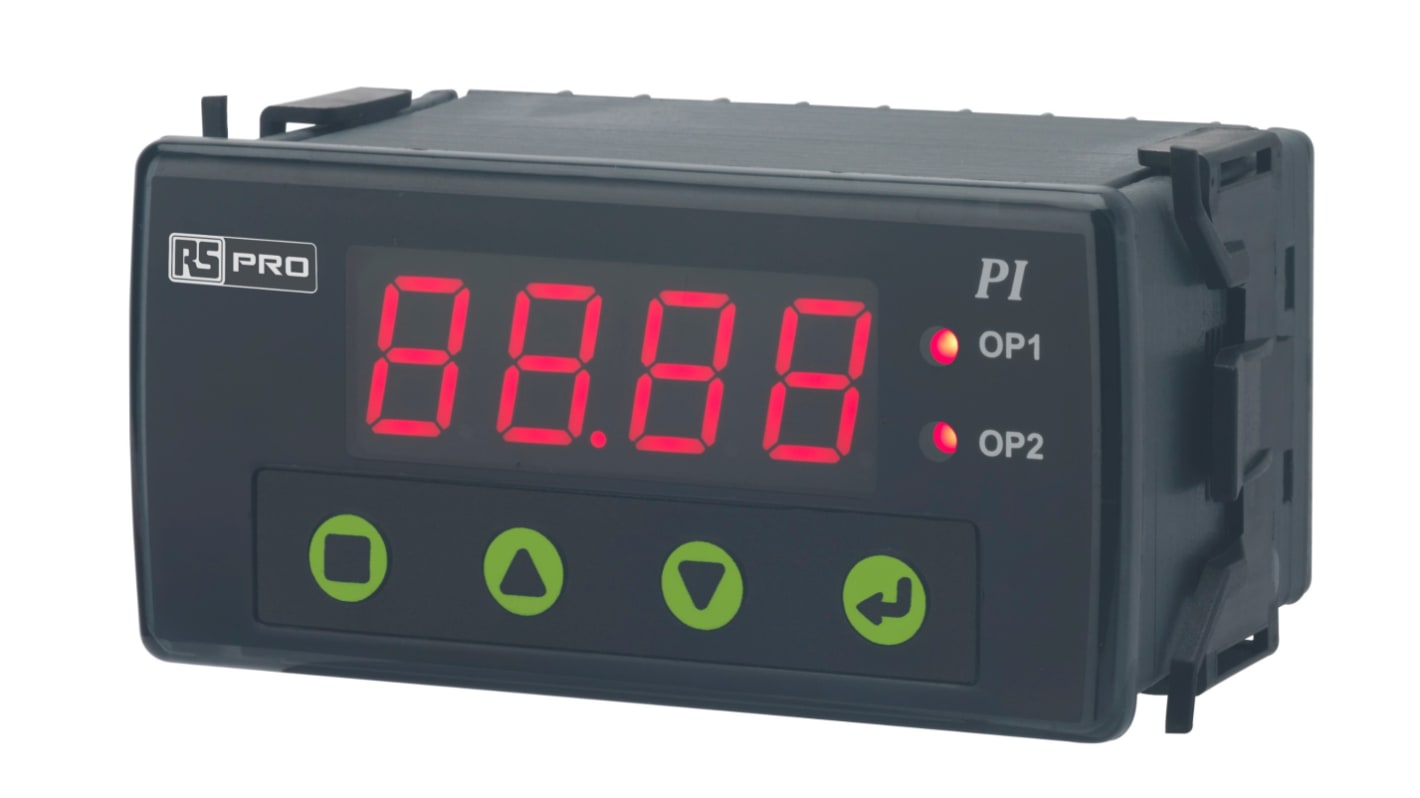

RS PRO 7-Segment Display Process Indicator, 92mm x 45mm

RS Stock No.:: 233-3537
ผู้ผลิต / Manufacturer:: RS PRO

RS PRO 7-Segment Display Process Indicator, 92mm x 45mm

1 / 1

ราคา / Price undefined**

56 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)

เช็คสต็อกแบบเรียลไทม์ / Real time qty checker

ขออภัยค่ะ เราไม่สามารถแสดงราคาได้ในขณะนี้ กรุณาลองอัพเดทหน้าเพจใหม่อีกครั้ง

RS Stock No.:: 233-3537
ผู้ผลิต / Manufacturer:: RS PRO

RS PRO Multi-function Panel Meters - Process Indicators

If you need high-quality multifunction meters consider the new range of RS PRO panel meter process indicators. These devices are designed to monitor, indicate and analyse your process parameters. Process Indicators are extremely versatile with selectable inputs, output configurations, and alarm configurations.

Selectable inputs include, thermocouple (J, K, T, R & S) / RTD 3-wire (Pt-100) sensor inputs or analog inputs (0-10 VDC / 0-20mA / 4-20mA) depending on model selection which allows you to read the field inputs in different forms.

Prominent Features

Flush Mounting Version 96 mm x 48 mm with 7 segment displays

Thermocouple (J, K, T, R & S) / RTD 3-wire (Pt-100) sensor inputs

Analog Inputs (0-10 VDC / 0-20mA / 4-20mA), mV (Linear) - 5 to 56mV

Alarm Outputs, Analog (0-20mA/ 4-20mA or 0-10V/ 0-5V) & Relay 5A for alarm indication

Configurable Band, Deviation Alarms

°C & °F temperature unit selectable

Short depth of 65 mm

RS485 Communication

IP 20 - For terminal and enclosure

IP 55 - For Front Panel only

Features and Benefits

Multifunction Panel Meter

Process indicators accept inputs from Thermocouple, RTD & Analog Signals

Properties Measured: Current, Voltage, RTD, Thermocouple

Display shows process value

Alarm relay indication (depending on model)

4 Programming keys: Exit, Enter, Scroll down, Scroll up

Flush mounting

RS PRO Process Indicators Variants

180-270 VAC, Process Indicator, Analog Input (0-10 VDC / 4-20 mA): RS stock no: 233-3534

85-270 VAC/DC, Process Indicator, Analog Input (0-10 VDC / 4-20 mA), Thermocouple & RTD , 24 VDC sensor supply: RS stock no: 233-3535

85-270 VAC/DC, Process Indicator, Analog Input (0-10 VDC / 4-20 mA), Thermocouple & RTD, Alarm Outputs - Analog (0-10 V / 0-5 V, 0-20 mA / 4-20 mA) & Relay 5A for alarm indication: RS stock no: 233-3536

85-270 VAC/DC, Process Indicator, Analog Input (0-10 VDC / 4-20 mA), Thermocouple & RTD, Alarm Outputs - Analog (0-10 V / 0-5 V, 0-20 mA / 4-20 mA) & Relay 5A for alarm indication with RS-485 Modbus protocol: RS stock no: 233-3537

180-270 VAC, Process Indicator, Thermocouple & RTD: RS stock no: 233-3538

Applications

RPM indication

Level Indication

Pressure indication

Flow indication

Temperature indication

คุณสมบัติ	Value
Properties Measured	Analog, Thermocouple, PT100, 0 → 20 mA, 4 → 20 mA, 0 → 10 V
Display Type	7-Segment Display
Cutout Height	92mm
Cutout Width	45mm
Depth	65mm
Number of Digits	4
Minimum Temperature	0°C
Maximum Temperature	+50°C
Series	PIB12C
