- RS Stock No.:
- 171-8474
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- N24-S140000E0
- ผู้ผลิต / Manufacturer:
- Lumel
4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB7,825.79
(exc. VAT)
THB8,373.60
(inc. VAT)
Units | Per unit |
1 + | THB7,825.79 |
- RS Stock No.:
- 171-8474
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- N24-S140000E0
- ผู้ผลิต / Manufacturer:
- Lumel
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
รายละเอียดสินค้า / Product Details

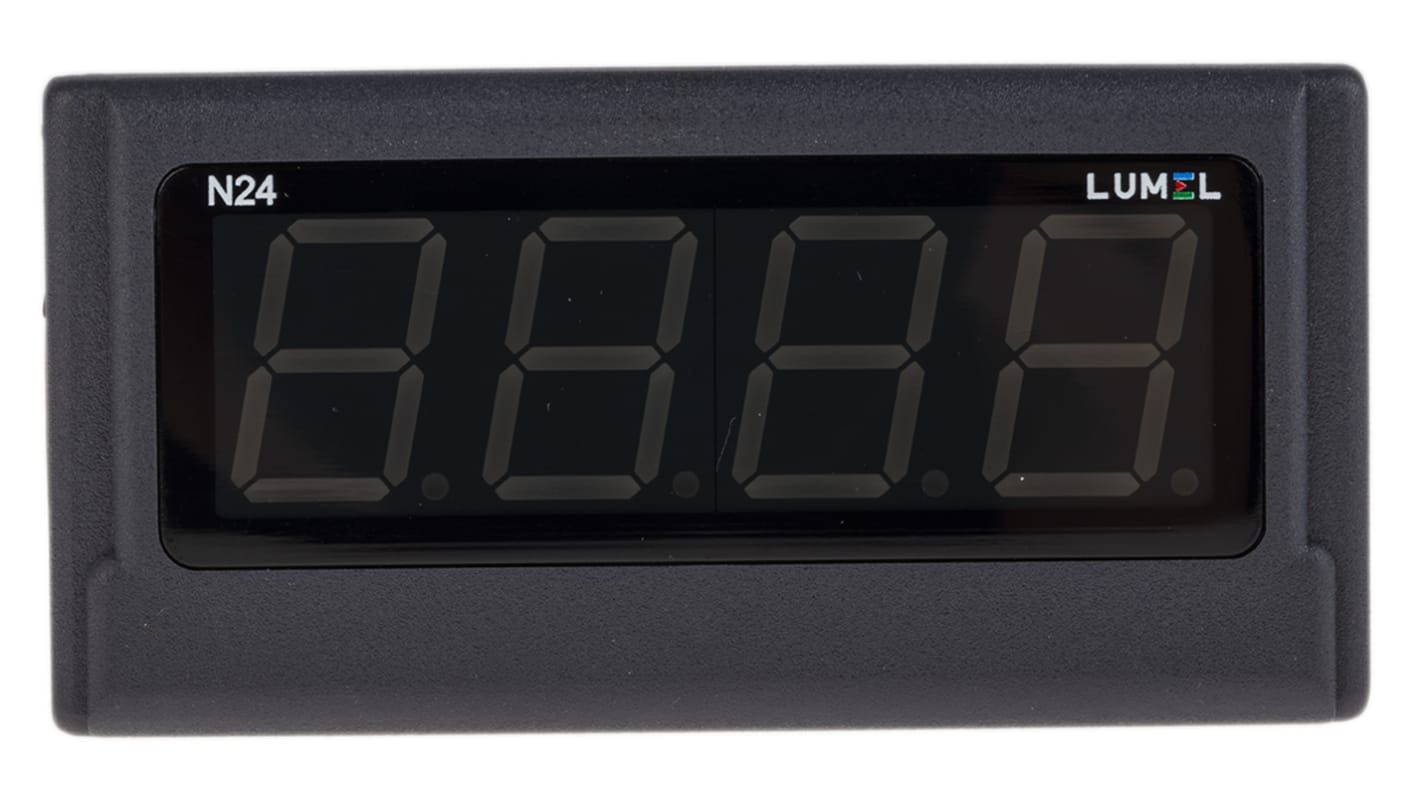

Lumel LED Digital Panel Multi-Function Meter
The Lumel N24 series 4-digit LED digital panel multi-function meter. It is designed to measure the current rating of 0 to 20mA. Its service temperature ranges between -10°C and 55°C. Possible configuration of parameters is through the PD14 programmer and the free delivered LPConfig program.
Features and Benefits
Automatic or manual compensation
Measurement of averaging time
Precision of displayed results
Recounting of indications
Measuring ranges are -66 → 66 mV, -11 → 11 V, -11 → 66 mV, -1 → 22 mA, -0.5 → 11 V, 3.6 → 26 mA
Measurement of averaging time
Precision of displayed results
Recounting of indications
Measuring ranges are -66 → 66 mV, -11 → 11 V, -11 → 66 mV, -1 → 22 mA, -0.5 → 11 V, 3.6 → 26 mA
Applications
Commercial applications
Industrial applications
Industrial applications
Certifications
CE certified
EN 61000-6-2 accredited
EN 61000-6-4 accredited
EN 61010-1 accredited
IP65 rated
EN 61000-6-2 accredited
EN 61000-6-4 accredited
EN 61010-1 accredited
IP65 rated
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Properties Measured | 0 → 20 mA |
Display Type | LED |
Cutout Height | 92mm |
Cutout Width | 45mm |
Depth | 64mm |
Number of Digits | 4 |
Digit Height | 20 mm |
Minimum Temperature | -10°C |
Maximum Temperature | +55°C |
Measurement Range | -0.5 → 11 V, -1 → 22 mA, -11 → 11 V, -11 → 66 mV, 3.6 → 26 mA, -66 → 66 mV |
Meter Type | Digital |
Minimum Measurement | -66 mV, -11 mV, -11 V, -1 mA, -0.5 V, 3.6 mA |
Series | N24 |
Approvals | CE Certified |
