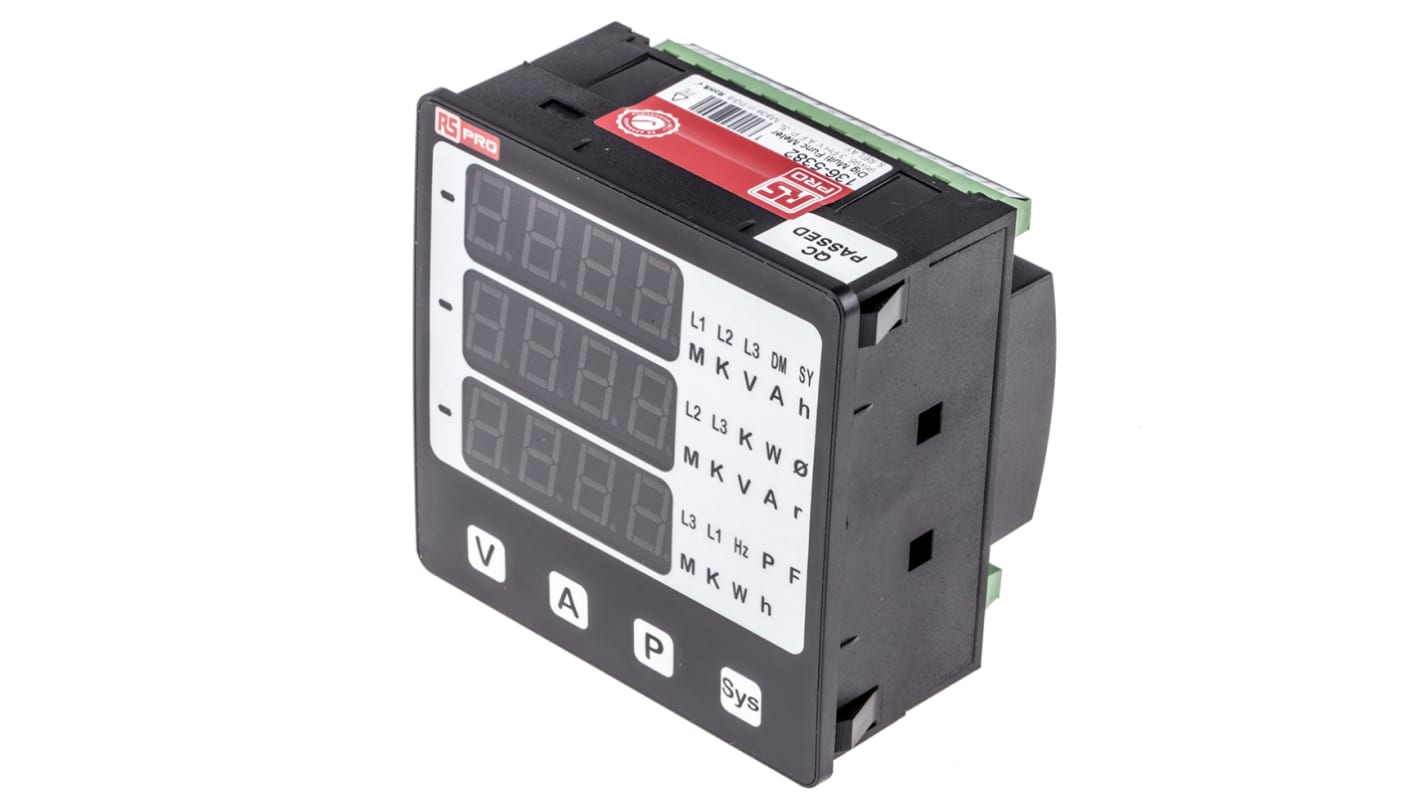

RS PRO LED Digital Panel Multi-Function Meter for Current, Frequency, System Active Power, System Re-Active Power,

ยอดรวมย่อย (1 ชิ้น)*

THB2,242.85

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,399.85

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • เพิ่มอีก 11 ชิ้นจะส่งได้หลังจากวันที่ 08 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB2,242.85

*ตัวบ่งบอกราคา / price indicative

TH - Addon Saving - PDP
RS Stock No.:
136-5382
ผู้ผลิต:
RS PRO
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

RS PRO

Properties Measured

Current, Frequency, System Active Power, System Re-Active Power, Voltage

Display Type

LED

Cutout Height

92mm

Cutout Width

92mm

Number of Digits

4

Depth

55mm

Minimum Temperature

0°C

Maximum Temperature

+50°C

Measurement Range

5 (Current) A, 500 (AC RMS Input Voltage) V, 500 (Secondary Input Voltage) V, 65 (Frequency) Hz, 692 (Primary Input Voltage) kV

Minimum Measurement

1 (Current) A, 100 (Primary Input Voltage) kV, 100 (Secondary Input Voltage) V, 290 (AC RMS Input Voltage) V, 45 (Frequency) Hz

Meter Type

Digital

Series

AP15

Approvals

IEC 60529, IEC 61010-1:2001, IEC 61326-1:2005

COO (Country of Origin):
IN

4 Digit, 3 Line Digital Multi-function Meters


RS Pro digital panel meters measure important electrical parameters in 3 phase 4-wire and 3 phase three wire network and replaces the need for multiple analogue meters. It measures electrical parameters such as AC voltage, AC current, Frequency, Active, Reactive and more.

Features and Benefits


3 line, 4-digit ultra-bright LED display (up to 9999)
Fast and easy installation on panel with self-clicking
True RMS measurement
Limit switch (optional)
On-site programmable CT/PT ratios
User selectable CT secondary 1A/5A
User selectable PT secondary from 100 VLL to 500 VLL
User selectable 3 ph 3 wire/3 ph 4 wire/single phase network
2 Auxiliary power supply available 40 V-300 V ac/dc
Storage of MIN/MAX values
Measurement and display of RPM, run hours, on hours, no. of interruption
