Sifam Tinsley ND40 LCD TFT Digital Panel Multi-Function Meter
- RS Stock No.:
- 123-6807
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ND40 1100U0
- ผู้ผลิต:
- Sifam Tinsley
ยอดรวมย่อย (1 ชิ้น)*
THB95,298.85
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB101,969.77
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- จะส่งได้หลังจากวันที่ 23 กุมภาพันธ์ 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB95,298.85 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 123-6807
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ND40 1100U0
- ผู้ผลิต:
- Sifam Tinsley
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Sifam Tinsley | |
| Properties Measured | Active Power Factor, Current, Frequency, Voltage | |
| Display Type | LCD TFT | |
| Depth | 16mm | |
| Minimum Temperature | 0°C | |
| Maximum Temperature | +50°C | |
| Measurement Range | -1 → 1, 230 → 400 V, 42.5 → 57.5 Hz, 51 → 69 Hz, Maximum of 5 A | |
| Meter Type | Electrical | |
| Minimum Measurement | -1, 42.5 Hz, 51 Hz, 230 V ac | |
| Series | ND40 | |
| Approvals | EN 50160, EN 61000-4-30, EN 6100-4-7 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Sifam Tinsley | ||
Properties Measured Active Power Factor, Current, Frequency, Voltage | ||
Display Type LCD TFT | ||
Depth 16mm | ||
Minimum Temperature 0°C | ||
Maximum Temperature +50°C | ||
Measurement Range -1 → 1, 230 → 400 V, 42.5 → 57.5 Hz, 51 → 69 Hz, Maximum of 5 A | ||
Meter Type Electrical | ||
Minimum Measurement -1, 42.5 Hz, 51 Hz, 230 V ac | ||
Series ND40 | ||
Approvals EN 50160, EN 61000-4-30, EN 6100-4-7 | ||
ไม่สอดคล้อง
- COO (Country of Origin):
- PL

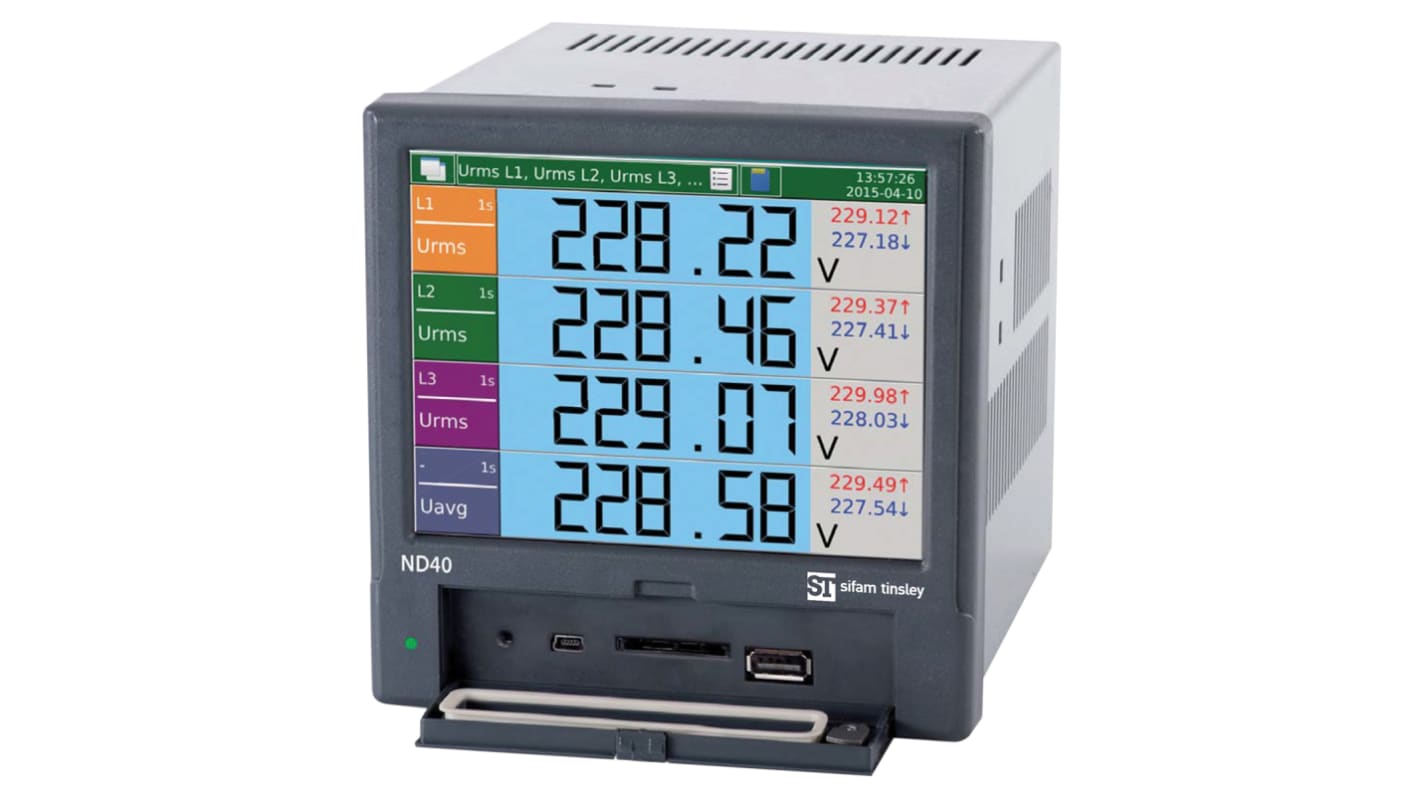

ND40 Digital Panel Meter
The ND40 is a digital multi-functional panel meter that measures and analyses 3 phase, 3 or 4-wire power network parameters in balanced or unbalanced systems. The measured values are displayed on a large LCD TFT screen.
Features and Benefits
• 5.6 colour touch screen LCD TFT display
• Intuitive operation of the device using a touch screen and graphical user interface based on Linux
• Communication interfaces: RS485 Modbus slave, Ethernet 100 Base-T, USB device & host
• Configurable archives of actual values and event recording
• Selection of time zone, automatic adjustment for daylight saving time, synchronisation with time server
• Data archiving on an SD card- up to 32 GB
• Web server, FTP server
• Logs of decays, dips, swells, alarms and audits
• Firmware update option
• English/Polish language choice
• Dedicated visualisation in the form of some of the following displays: digital, analogue, harmonics, vector diagrams, trends and waveform records
• Measurement and recording of energy quality according to EN 50160 standard
• IP65 protection (front side)
• Intuitive operation of the device using a touch screen and graphical user interface based on Linux
• Communication interfaces: RS485 Modbus slave, Ethernet 100 Base-T, USB device & host
• Configurable archives of actual values and event recording
• Selection of time zone, automatic adjustment for daylight saving time, synchronisation with time server
• Data archiving on an SD card- up to 32 GB
• Web server, FTP server
• Logs of decays, dips, swells, alarms and audits
• Firmware update option
• English/Polish language choice
• Dedicated visualisation in the form of some of the following displays: digital, analogue, harmonics, vector diagrams, trends and waveform records
• Measurement and recording of energy quality according to EN 50160 standard
• IP65 protection (front side)
Sifam Tinsley Multifunction Meter
