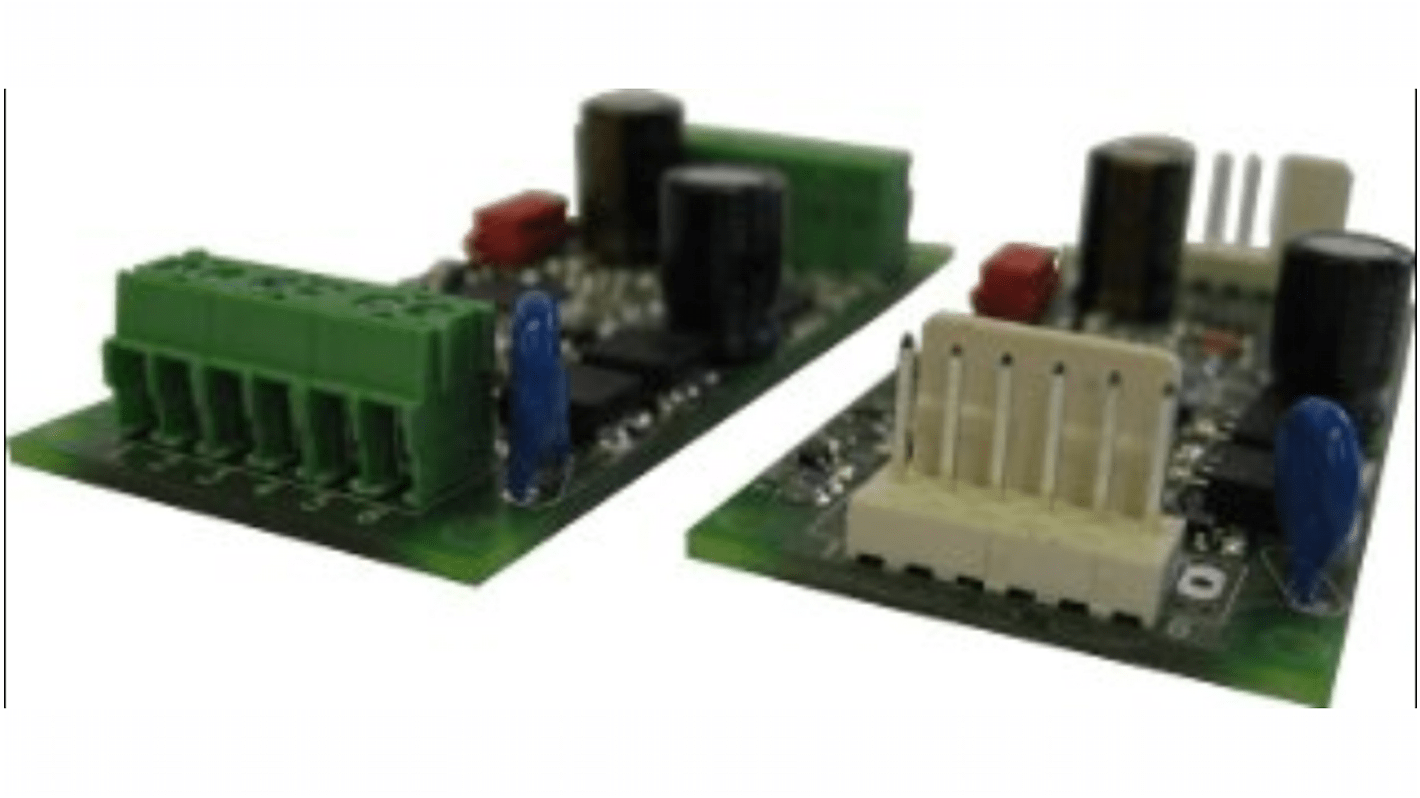

Electromen - EM-324SAF DC MOTOR POSITIONING CONTROLLER, 12-24 V, 4A

The EM-324-SAF is a positioning driver to be used with DC-motors, the solid state power stage operates with high efficiency using FET-transistors.Control signal can be a a voltage, 0-11V, or current from 0-20mA. Analogue feedback signal can be in the range from 0-11V.

The drive also supports potentiometer feedback and has auxiliary voltage outputs of 5.5V to excite the potentiometer.

The maximum accuracy available for positioning is 0.2%, exceeding what is generally required for most actuator positioning applications.

Movement range can be modified from both end points with switch limit parameters. Current limits and driving speeds can be set individually for both directions.

Driver includes also many other dynamic adjustment options including: load compensation, dead-zone setting (positioning window), start and stop ramps for a smooth direction change and an adjustable braking zone.

The on-board LED-light indicates the possible fault situations, the fault signal can be forwarded through the combiport for external use

Combiport can also be set to give 'position OK' output or re-transmit current position via analogue voltage output

The drive has very low RF emissions and is suitable for use in in critical electromagnetic environments including medical

For parameters setting there is 3 options: EM-236 interface unit, EM-268 with Menthol-Lite PC-program and EM-326 with Menthol-App application for smartphone

Features and Benefits

12-24Vdc, 4A continuous, 6A peak

Set value & feedback input, 0-5V, 0-11V, 0-20mA or potentiometer

Positioning accuracy max. 0.2%

Speed, direction, current limiting, soft start/stop and range adjustment control

Compact and DIN rail mountable;Analogue feedback

Multiple dynamic settings

Solid state power stage

One or two pulse feedback

Voltage or current control

Position accuracy max. 0.2%

Flexible set up options

2kHz / 16kHz PWM frequency

* 4A at 2kHz / 3A at 16kHz momentary 6A ( Ta<50°C )

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Electromen OY
	Product Type	DC Motor Controller
	Control Function	PWM
	Output Voltage	35 V
	Supply Voltage	10/35 V
	Current Rating	4 A
	Overall Length	72mm
	Overall Width	32mm
	Overall Depth	25 mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	EN - 55022B

	เลือกทั้งหมด
	Brand Electromen OY
	Product Type DC Motor Controller
	Control Function PWM
	Output Voltage 35 V
	Supply Voltage 10/35 V
	Current Rating 4 A
	Overall Length 72mm
	Overall Width 32mm
	Overall Depth 25 mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 60°C
	Standards/Approvals EN - 55022B

Electromen OY DC Motor Controller, 10/35 V, 4 A, PWM Function
