Siemens Cable Assembly MOTION-CONNECT 500 Series Cable

This cable provides a prefabricated connection solution for motion-control installations, combining multiple conductor sizes and factory-fitted connectors to simplify servo and encoder wiring. It is designed for dynamic machine environments where a compact, ready-to-install link between drive electronics and moving components is required, featuring a SPEED-CONNECT M17 plug and IX connector for reliable signal continuity.

• 4G0.75 conductors enabling robust power distribution for drives
• 2x0.5 signal pairs for dependable encoder or feedback transmission
• 4x0.2 cores supporting auxiliary low-current connections
• Pre-fitted end sleeves ensure secure conductor termination

• Suitable for servo motor connection in automated production lines
• Ideal for encoder feedback wiring in robotics
• Used with motion controllers in packaging machinery
• Can be used for cable routing on moving machine axes

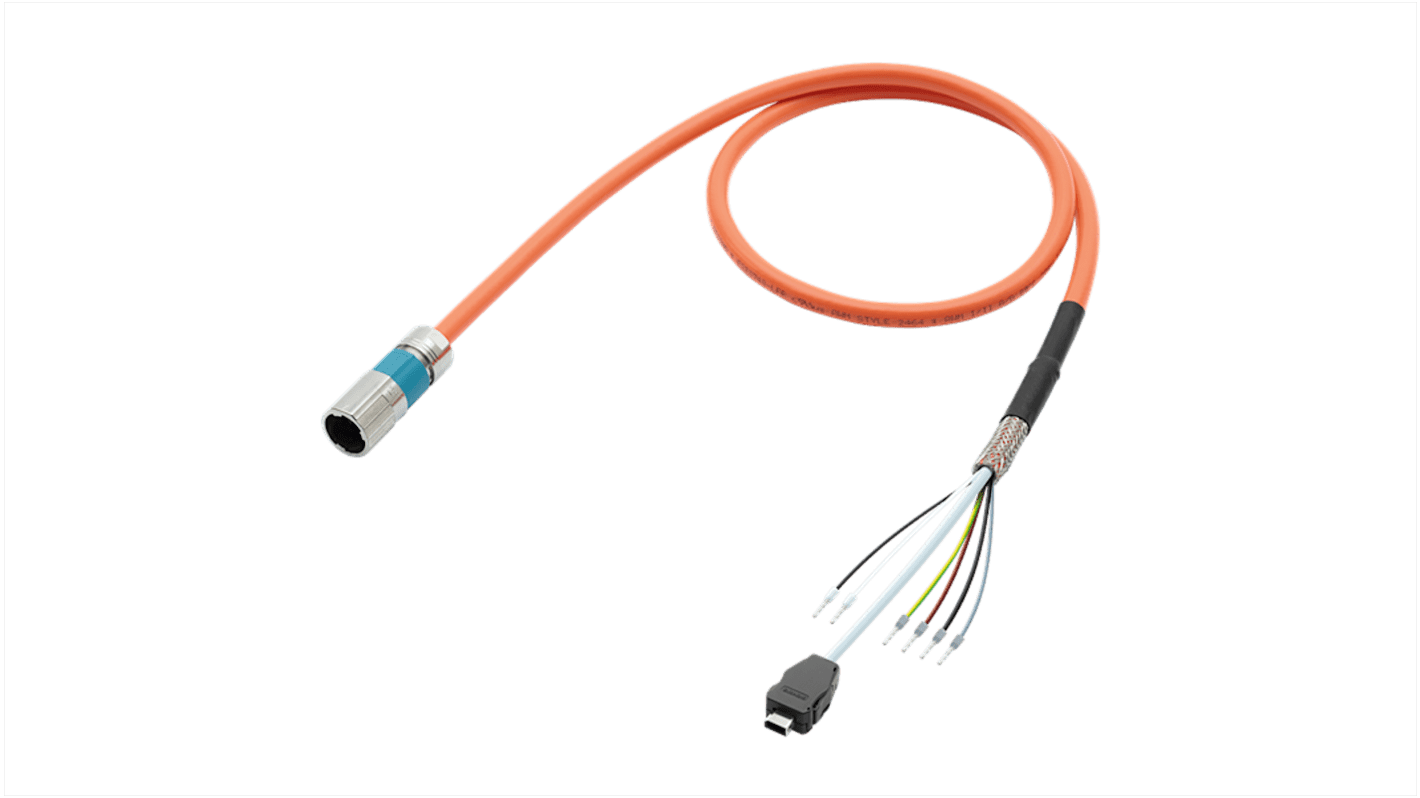

It is delivered with a SPEED-CONNECT M17 connector on one end and an IX‑style connector on the other to match common drive and encoder interfaces.

Each core is equipped with end sleeves at the factory to provide consistent, ready‑made terminations for screw or clamp terminals.

The cable has a maximum outer diameter specified as Dmax = 10.5mm, suitable for confined cable channels.
