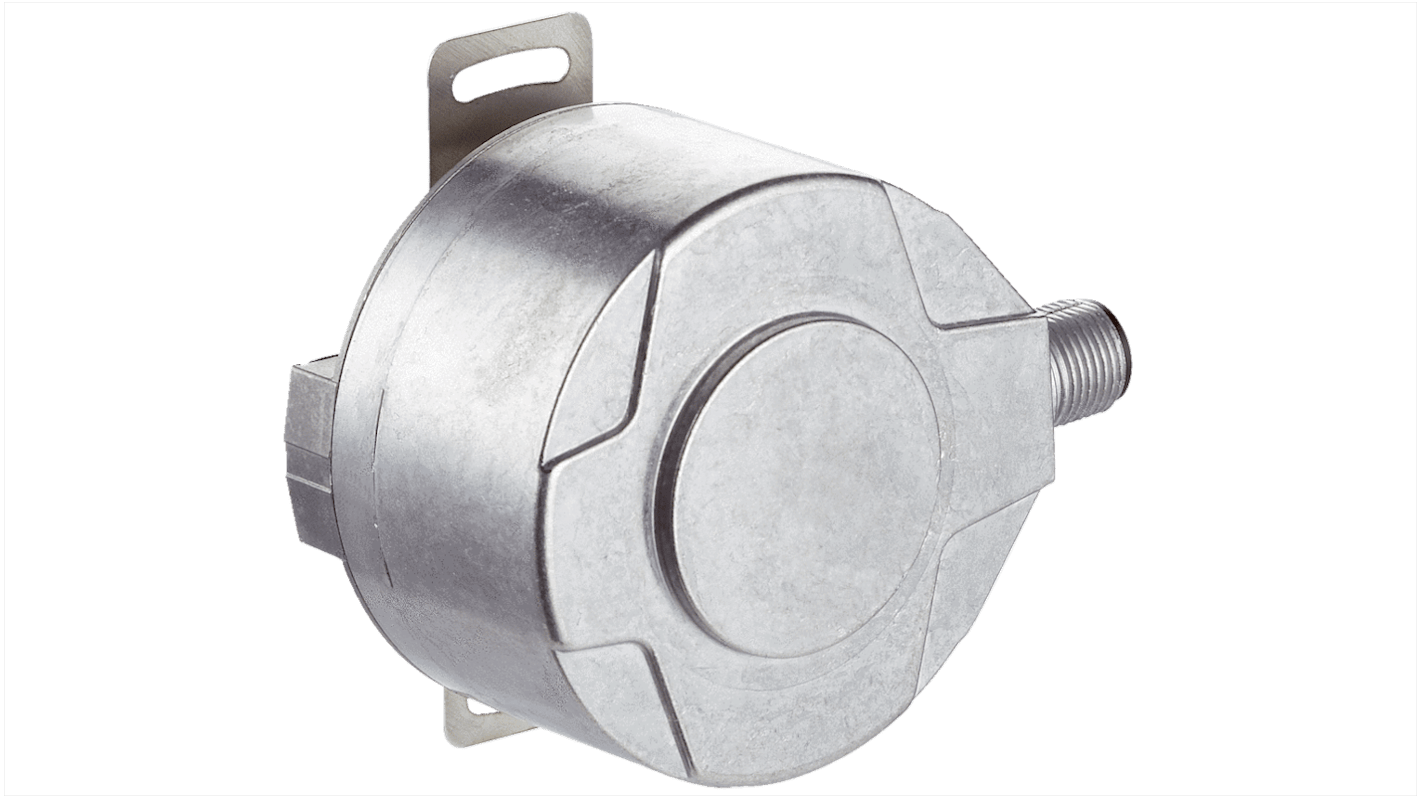

SICK DFS60B Series Incremental Incremental Encoder 32V, 1024 ppr ppr, HTL, Push Pull Signal, Solid Shaft Type, 8 mm

RS Stock No.:: 285-1099
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: DFS60B-BEEC01024 / 1062400
ผู้ผลิต:: SICK

ยอดรวมย่อย (1 ชิ้น)*

THB12,888.83

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB13,791.05

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อกของผู้ผลิต

พร้อมส่งจากวันที่ 21 พฤษภาคม 2569

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB12,888.83

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 285-1099
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: DFS60B-BEEC01024 / 1062400
ผู้ผลิต:: SICK

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	SICK
	Product Type	Incremental Encoder
	Encoder Technology	Incremental
	Series	DFS60B
	Pulses Per Revolution	1024ppr
	Maximum Revolutions	65536rpm
	Output Signal Type	HTL, Push Pull
	Shaft Type	Solid Shaft
	Shaft Diameter	8mm
	Interface Type	Incremental
	IP Rating	IP65
	Terminal Type	Cable
	Maximum Supply Voltage	32V
	Minimum Operating Temperature	-30°C
	Overall Height	60mm
	Standards/Approvals	UK declaration of conformity, EU declaration of conformity, cULus, CHINA-RoHS, CE, ACMA declaration of conformity
	Overall Width	60mm
	Mount Type	Flange
	Maximum Operating Temperature	100°C
	Switching Frequency	600kHz

	เลือกทั้งหมด
	Brand SICK
	Product Type Incremental Encoder
	Encoder Technology Incremental
	Series DFS60B
	Pulses Per Revolution 1024ppr
	Maximum Revolutions 65536rpm
	Output Signal Type HTL, Push Pull
	Shaft Type Solid Shaft
	Shaft Diameter 8mm
	Interface Type Incremental
	IP Rating IP65
	Terminal Type Cable
	Maximum Supply Voltage 32V
	Minimum Operating Temperature -30°C
	Overall Height 60mm
	Standards/Approvals UK declaration of conformity, EU declaration of conformity, cULus, CHINA-RoHS, CE, ACMA declaration of conformity
	Overall Width 60mm
	Mount Type Flange
	Maximum Operating Temperature 100°C
	Switching Frequency 600kHz

Datasheet - DFS60B-BEEC01024

COO (Country of Origin):: DE

Overview

The DFS60 is a high-resolution incremental encoder with a diameter of 60 mm. It offers lots of mechanical and electrical interfaces and a housing made from aluminium or stainless steel. You can program the encoder yourself, if you want. A key feature is the range of options for programming the electrical parameters, e.g., the output signal level, the number of pulses per revolution, or the zero pulse width.

This makes the DFS60 highly suitable for demanding applications as well. The high enclosure rating, wide temperature range, and wide-set ball bearings ensure a high level of ruggedness and make the DFS60 the ideal encoder for industrial applications with harsh ambient conditions.

At a glance

Pulses per revolution: Up to 65,536 (16 bit)

Housing diameter: 60 mm

Solid shaft, blind hollow shaft, through hollow shaft

Enclosure rating: IP65/IP67

Communication interfaces: TTL RS 422, HTL Push Pull, Sin/Cos

Connection type: M12 or M23 male connector, or universal cable

Programmable, compact installation depth, remote zero set possible

Your Benefit

The programmability of the encoder results in reduced storage, high machine availability, and easy and fast installation

Flexible adaptation to the application-specific installation situation

High resolution up to 16 bits allows applications with demanding requirements on measurement accuracy

The stainless-steel housing offers high resistance to environmental influences

Long-term and reliable operation thanks to a high enclosure rating, temperature resistance and bearing lifetime

Excellent concentricity even at high speeds

Simple mounting thanks to compact dimensions, when the installation space is limited

Applications

Fields of applications

Measurement of position, speed and displacement in factory and logistics automation, e.g., in the food and beverages industry, medical technology, wood processing, in outdoor applications at ports or offshore plants, printing machin
