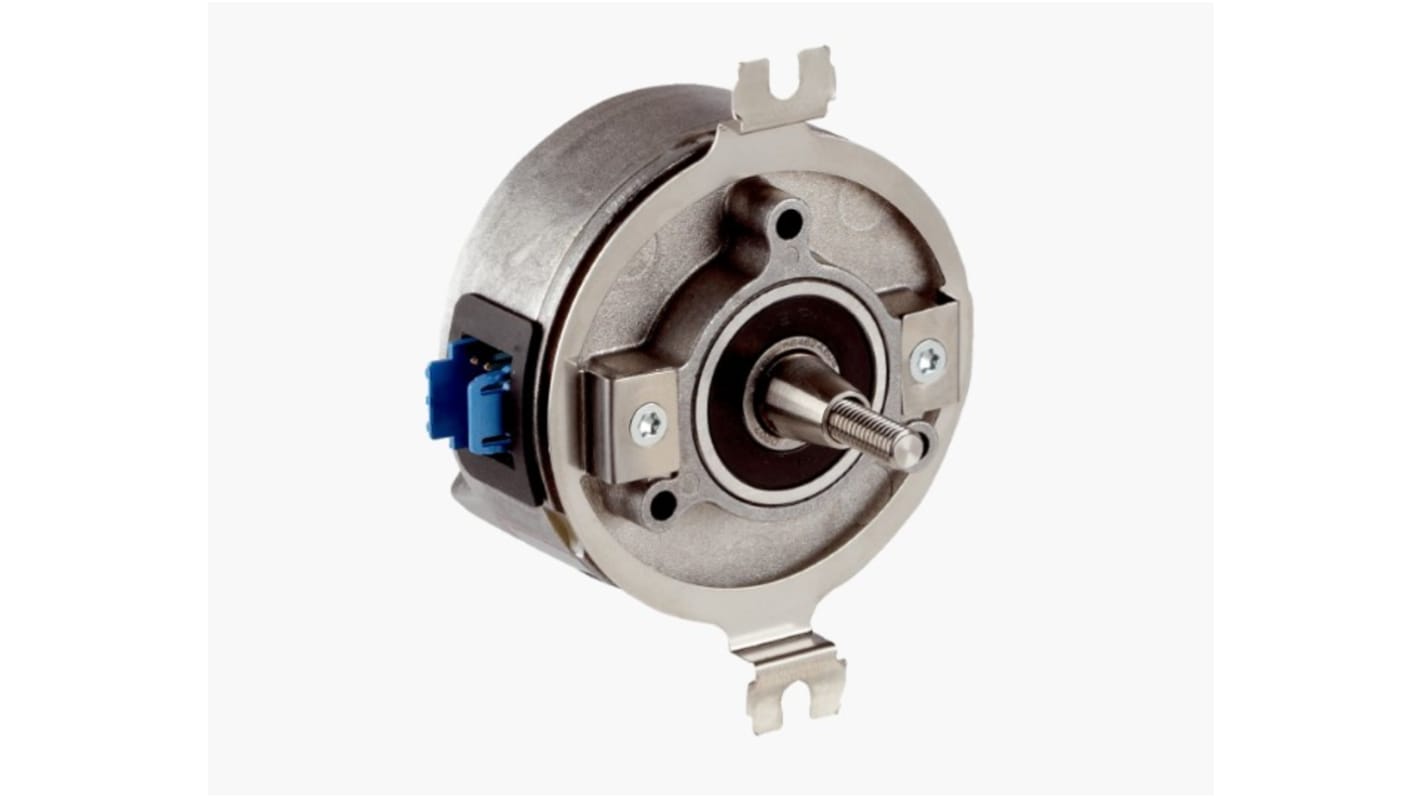

SICK SRM50 Series Safety Encoder Rotary Encoder 12V dc, 1024 ppr ppr, Sin/Cos Signal, Knurled Type, 8 mm Shaft

ดู Motion Control Sensors ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB28,742.94

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB30,754.95

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น
ต่อหน่วย
1 +THB28,742.94

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
284-9275
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
SRM50-HFA0-K21 / 1037071
ผู้ผลิต:
SICK
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

SICK

Product Type

Rotary Encoder

Encoder Technology

Safety Encoder

Pulses Per Revolution

1024ppr

Series

SRM50

Maximum Revolutions

4096rpm

Output Signal Type

Sin/Cos

Shaft Type

Knurled

Shaft Diameter

8mm

Interface Type

HIPERFACE

IP Rating

IP40

Terminal Type

Male Connector

Maximum Supply Voltage

12V dc

Minimum Operating Temperature

-30°C

Overall Depth

41.7mm

Overall Height

47mm

Overall Width

65.5mm

Standards/Approvals

ACMA declaration of conformity, CE, CHINA-RoHS, EU declaration of conformity, UK declaration of conformity

Maximum Operating Temperature

115°C

Mount Type

Plate

Switching Frequency

200kHz

COO (Country of Origin):
HU

SICK SRM50 Series Rotary Encoder, HIPERFACE Interface, IP40 - SRM50-HFA0-K21 / 1037071


This rotary encoder is a HIPERFACE® motor feedback device designed to deliver high-resolution absolute position feedback for servo motors in industrial automation. It provides precise angular information via a binary absolute code and a process data channel, and is built for continuous operation across a wide temperature span in electrically conductive enclosures that comply with EMC mounting requirements.

Features & Benefits


• 134,217,728 steps total for fine positional resolution
• 4,096 absolute revolutions to track multi-turn positions
• less than or equal to 6,000min⁻¹ absolute position update for robust control
• 0.3 inch measuring step when interpolated for accurate motion control
• Operating torque 0.2Ncm enabling low-friction drives
• IP40 enclosure rating when mating connector fitted for protected installations

**Applications**


• Suitable for closed-loop control of servo motors in production lines
• Ideal for precision indexing on rotary tables and gearboxes
• Used with motor controllers requiring HIPERFACE parameter access
• Can be used for position feedback in robotics joints and actuators

What electrical supply does it require?


It accepts a DC supply in the 7V–12V range with a recommended 8V and typical current consumption of 80mA without external load.

How does the Interface communicate configuration and process data?


The device provides a HIPERFACE® communication link for parameter exchange alongside RS485-based parameter channels using a dedicated Data+ and Data− pair.

What are the signal outputs for angular information?


It produces sine and cosine analogue signals Plus reference sine/cosine channels, with an output frequency capability up to 200kHz for the sinusoidal signals.

How tolerant is the mechanical coupling to misalignment?


Static radial allowance is ±0.3mm and axial ±0.75mm while dynamic allowances are ±0.1mm radial and ±0.2mm axial to accommodate drive movement.

What environmental stresses can it withstand?


It operates between −30°C to +115°C, resists 100g shocks and vibration up to 20g across 10Hz–2000Hz when mounted per EMC guidance.
