SICK DFS60B Series Incremental Incremental Encoder, 8192ppr ppr, RS422, TTL Signal, Solid shaft Type, 6mm Shaft

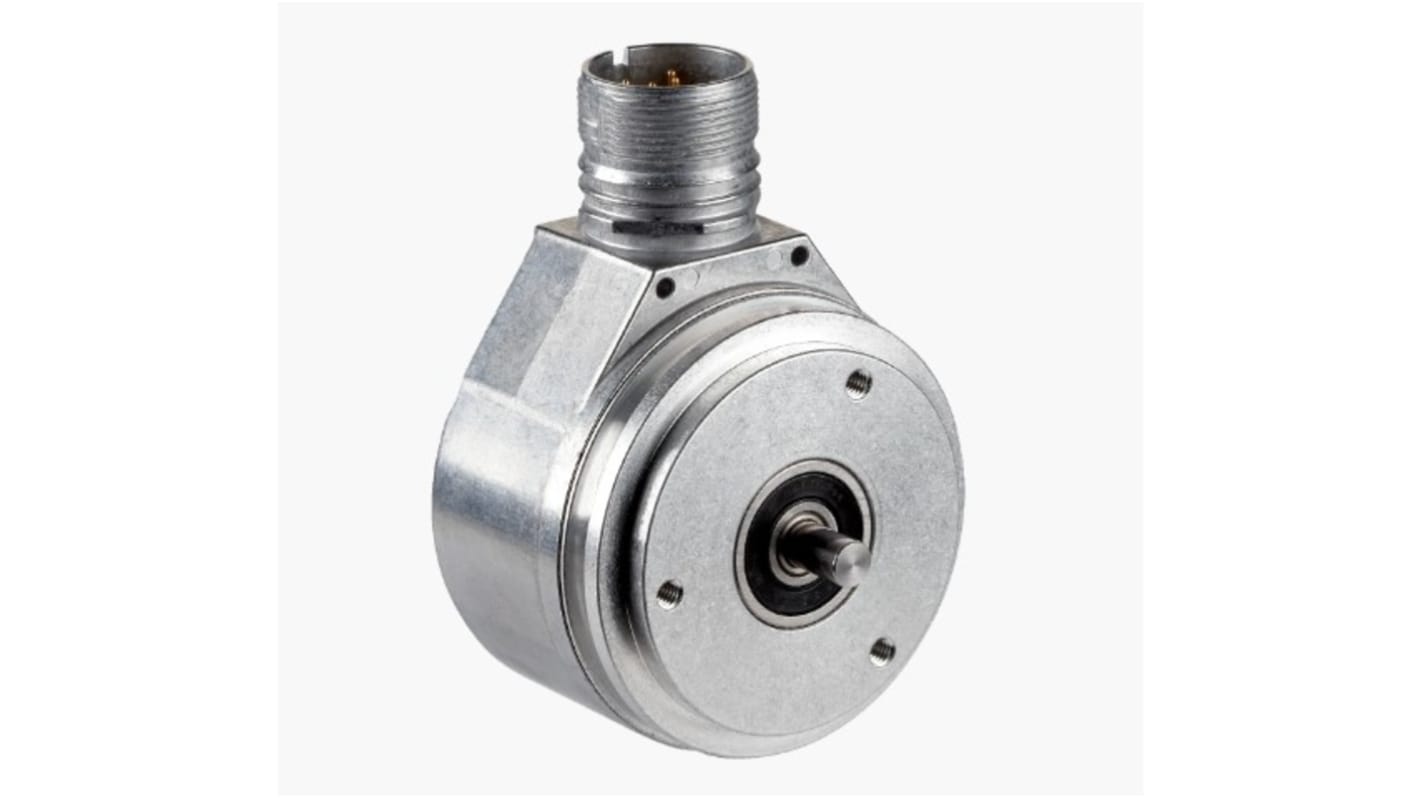

The incremental encoders feature a solid shaft with a servo flange measuring 6 mm x 10 mm. They support a communication interface operating between 4.5 V and 5.5 V, compatible with TTL and RS-422 protocols. These encoders are connected via a male M23 connector with 12 radial pins, and each revolution generates 8,192 pulses. The high-resolution incremental encoder, with a diameter of 60 mm, boasts numerous mechanical and electrical interfaces, along with a housing crafted from either aluminium or stainless steel.

Users have the flexibility to program the encoder themselves, if desired. A standout feature is the array of options available for programming the electrical parameters, such as the output signal level, the number of pulses per revolution, or the zero pulse width. This versatility renders the DFS60 highly suitable for demanding applications. With a high enclosure rating, wide temperature range, and robustly designed ball bearings, the DFS60 ensures durability, making it the ideal encoder for industrial applications exposed to harsh ambient conditions.

Pulses per revolution: Up to 65,536 (16 bit)
Housing diameter: 60 mm
Solid shaft, blind hollow shaft, through hollow shaft
Enclosure rating: IP65/IP67
Communication interfaces: TTL RS 422, HTL Push Pull, Sin/Cos
Connection type: M12 or M23 male connector, or universal cable
Programmable, compact installation depth, remote zero set possible

The programmability of the encoder results in reduced storage, high machine availability, and easy and fast installation
Flexible adaptation to the application-specific installation situation
High resolution up to 16 bits allows applications with demanding requirements on measurement accuracy
The stainless-steel housing offers high resistance to environmental influences
Long-term and reliable operation thanks to a high enclosure rating, temperature resistance and bearing lifetime
Excellent concentricity even at high speeds
Simple mounting thanks to compact dimensions, when the installation space is limited

Fields of applications
Measurement of position, speed and displacement in factory and logistics automation, e.g., in the food and beverages industry, medical technology, wood processing, in outdoor applications at ports or offshore plants, printing machin
