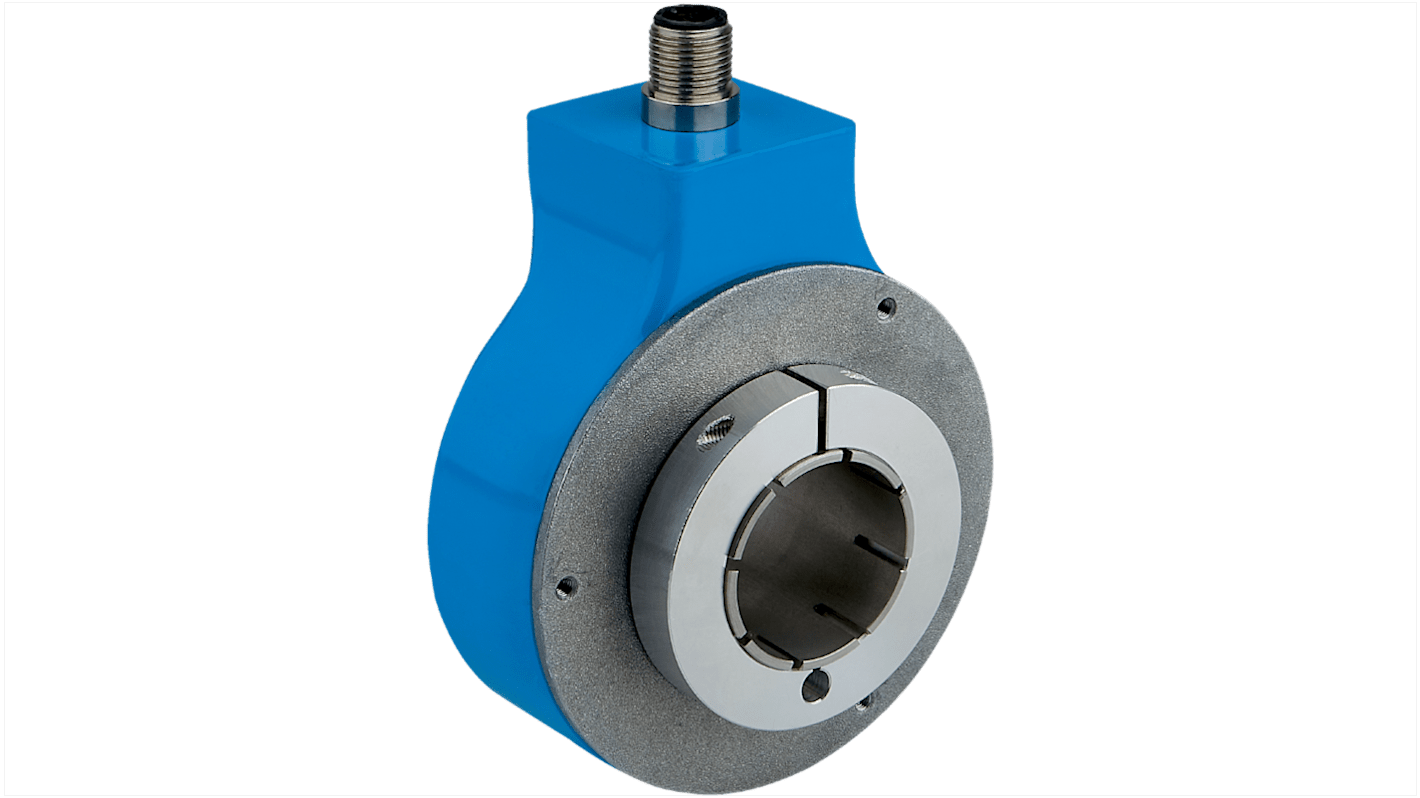

SICK DGS80/90 Series Incremental Incremental Encoder 30V, 1024 ppr ppr, HTL/Push Pull Signal, Through Hollow Type, 30 mm

This incremental encoder is designed to deliver precise measurements in various industrial applications. With a robust construction and an IP65 rating, it is suitable for challenging environments. The encoder features a through hollow shaft with a diameter of 30mm and a Compact design with overall dimensions of 108mm in height, 72mm in width, and 35mm in depth. Capable of up to 3600 revolutions per minute, it outputs 1024 pulses per revolution, ensuring high accuracy for automation and control systems.

• Provides 1024 pulses per revolution for high precision
• Delivers HTL/Push Pull output signal for versatile usage
• Equipped with an M12 male connector for easy integration
• Operates efficiently across a wide temperature range

• Used for motion control in automated machinery
• Ideal for rotary in manufacturing processes
• Utilised in robotics for precise position feedback
• Suitable for conveyors where accuracy is Crucial
• Effective in testing equipment for reliability analysis

The design features an IP65 rating, ensuring protection against dust and moisture, which allows for reliable performance even in challenging industrial settings.

The through hollow shaft design enables easier installation and connection of other components, providing flexibility in assembly and reducing mechanical complexity.

It operates within a supply voltage range of 4.5 to 30 V, allowing it to be integrated into a variety of systems without requiring specialised power sources.

It is designed to function within a wide temperature range, from -25°C to +85°C, making it suitable for diverse operational environments.
