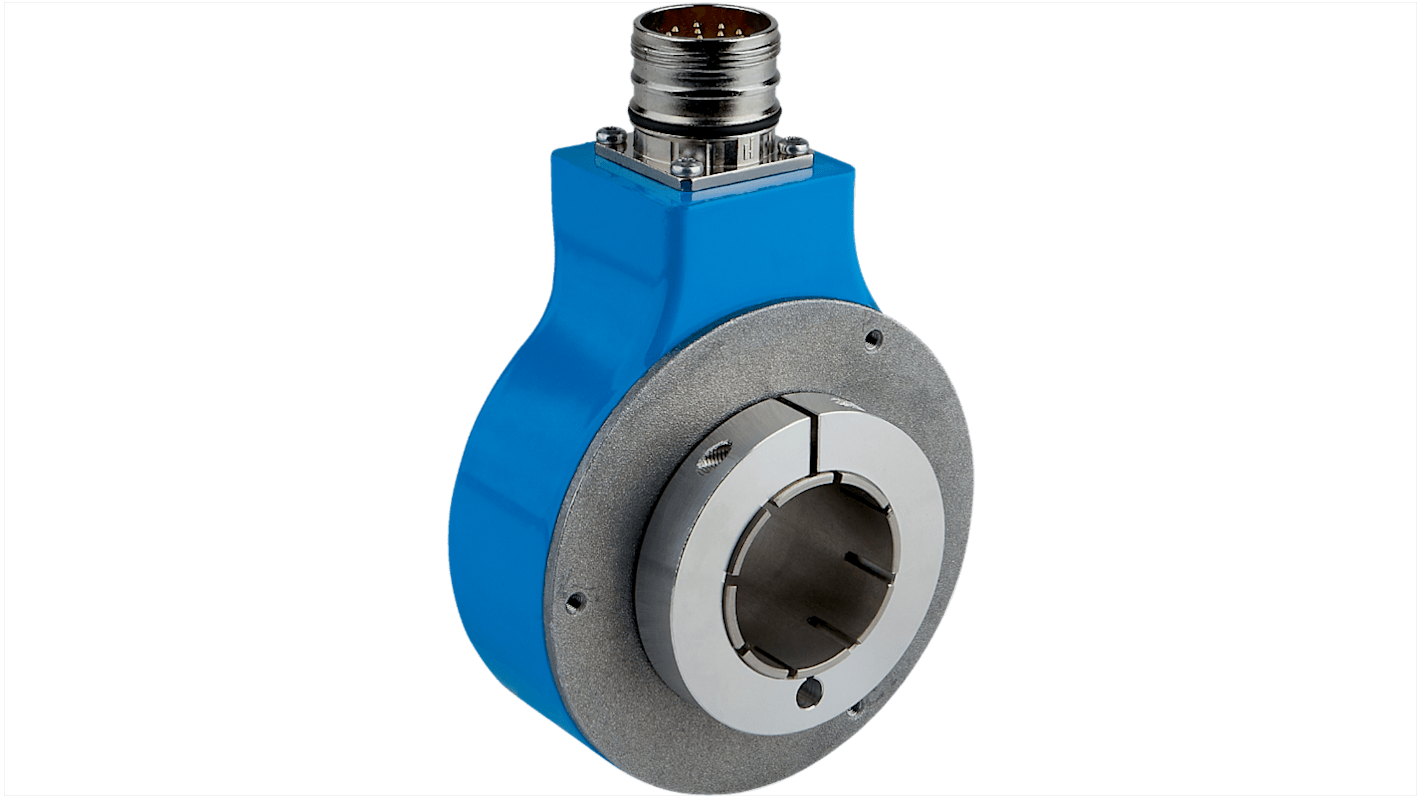

SICK DGS80 Series Incremental Incremental Encoder 30V, 2048 ppr ppr, Through Hollow Shaft Type, 30 mm Shaft

RS Stock No.:: 266-7693
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: DGS80B-TSLA02048 / 1118697
ผู้ผลิต:: SICK

ยอดรวมย่อย (1 ชิ้น)*

THB26,718.87

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB28,589.19

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อกของผู้ผลิต

พร้อมส่งจากวันที่ 24 กันยายน 2569

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB26,718.87

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 266-7693
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: DGS80B-TSLA02048 / 1118697
ผู้ผลิต:: SICK

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	SICK
	Encoder Technology	Incremental
	Product Type	Incremental Encoder
	Series	DGS80
	Pulses Per Revolution	2048ppr
	Maximum Revolutions	3600rpm
	Shaft Type	Through Hollow Shaft
	Shaft Diameter	30mm
	Interface Type	Incremental
	IP Rating	IP65
	Terminal Type	12-Pin M23
	Maximum Supply Voltage	30V
	Minimum Operating Temperature	-25°C
	Overall Depth	35mm
	Standards/Approvals	CE
	Overall Width	115.5mm
	Overall Height	35mm
	Mount Type	Flange
	Maximum Operating Temperature	85°C

	เลือกทั้งหมด
	Brand SICK
	Encoder Technology Incremental
	Product Type Incremental Encoder
	Series DGS80
	Pulses Per Revolution 2048ppr
	Maximum Revolutions 3600rpm
	Shaft Type Through Hollow Shaft
	Shaft Diameter 30mm
	Interface Type Incremental
	IP Rating IP65
	Terminal Type 12-Pin M23
	Maximum Supply Voltage 30V
	Minimum Operating Temperature -25°C
	Overall Depth 35mm
	Standards/Approvals CE
	Overall Width 115.5mm
	Overall Height 35mm
	Mount Type Flange
	Maximum Operating Temperature 85°C

COO (Country of Origin):: IT

SICK DGS80 Series Incremental Encoder, 2048ppr Pulses Per Revolution, 30mm Shaft Diameter - DGS80B-TSLA02048 / 1118697

This incremental encoder is a Compact rotary sensor designed to provide precise position and speed feedback in industrial control systems. It is suited to automation and motion-control environments where a robust Interface and high counting resolution are required. The unit connects via an incremental electrical Interface and is intended for flange-mounted installations in mechanical assemblies.

Features and Benefits:

• 2048 ppr resolution delivers fine positional accuracy for control loops
• Through hollow shaft 30mm enables easy direct-shaft coupling
• Rated up to 3600 rpm supports moderate rotational speeds in conveyors
• IP65 enclosure provides protection against dust and water ingress
• Operational range -25 °C to +85 °C tolerates wide ambient conditions
• 12-pin M23 connector simplifies secure multi-wire connections

Applications

• Suitable for feedback on servo-driven conveyor rollers
• Ideal for shaft-speed sensing in packaging machinery
• Used with indexing tables to provide position counts
• Can be used for motor control in assembly-line systems
• Suitable for rotational monitoring in machine-tool spindles

What electrical Interface does it use for signal transmission?

It uses an incremental Interface providing quadrature pulses for direction and speed measurement, compatible with standard counter inputs.

How is the encoder mounted to a driven shaft?

It employs a flange-mounting arrangement and a through hollow bore that accepts a 30mm shaft for direct installation without separate couplings.

Which environmental conditions can it operate within?

The unit functions across a wide temperature span from -25 °C to +85 °C and carries an IP65 protection rating against dust and low-pressure water jets.

What connector type is provided for field wiring?

Field wiring is MADE via a 12-pin M23 terminal, enabling multiple signal and power conductors to be terminated reliably.

What rotational speed limits should be observed?

The encoder is specified for operation up to 3600 rpm to maintain accurate Pulse generation and mechanical integrity.
