SICK DFS60 Series Incremental Incremental Encoder 32V dc, 1000 ppr ppr, HTL Signal, Hollow Shaft Type, 14 mm Shaft
- RS Stock No.:
- 266-7589
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DFS60B-TGEC01000 / 1064918
- ผู้ผลิต:
- SICK
ยอดรวมย่อย (1 ชิ้น)*
THB13,637.10
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB14,591.70
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB13,637.10 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 266-7589
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DFS60B-TGEC01000 / 1064918
- ผู้ผลิต:
- SICK
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | SICK | |
| Encoder Technology | Incremental | |
| Product Type | Incremental Encoder | |
| Pulses Per Revolution | 1000ppr | |
| Series | DFS60 | |
| Maximum Revolutions | 6000rpm | |
| Output Signal Type | HTL | |
| Shaft Type | Hollow Shaft | |
| Shaft Diameter | 14mm | |
| Interface Type | Push Pull | |
| IP Rating | IP65 | |
| Terminal Type | 8-Pin M12 Male | |
| Maximum Supply Voltage | 32V dc | |
| Minimum Operating Temperature | -40°C | |
| Overall Depth | 43mm | |
| Overall Height | 43mm | |
| Standards/Approvals | CE | |
| Overall Width | 72mm | |
| Maximum Operating Temperature | 100°C | |
| Mount Type | Full Shaft | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand SICK | ||
Encoder Technology Incremental | ||
Product Type Incremental Encoder | ||
Pulses Per Revolution 1000ppr | ||
Series DFS60 | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type HTL | ||
Shaft Type Hollow Shaft | ||
Shaft Diameter 14mm | ||
Interface Type Push Pull | ||
IP Rating IP65 | ||
Terminal Type 8-Pin M12 Male | ||
Maximum Supply Voltage 32V dc | ||
Minimum Operating Temperature -40°C | ||
Overall Depth 43mm | ||
Overall Height 43mm | ||
Standards/Approvals CE | ||
Overall Width 72mm | ||
Maximum Operating Temperature 100°C | ||
Mount Type Full Shaft | ||

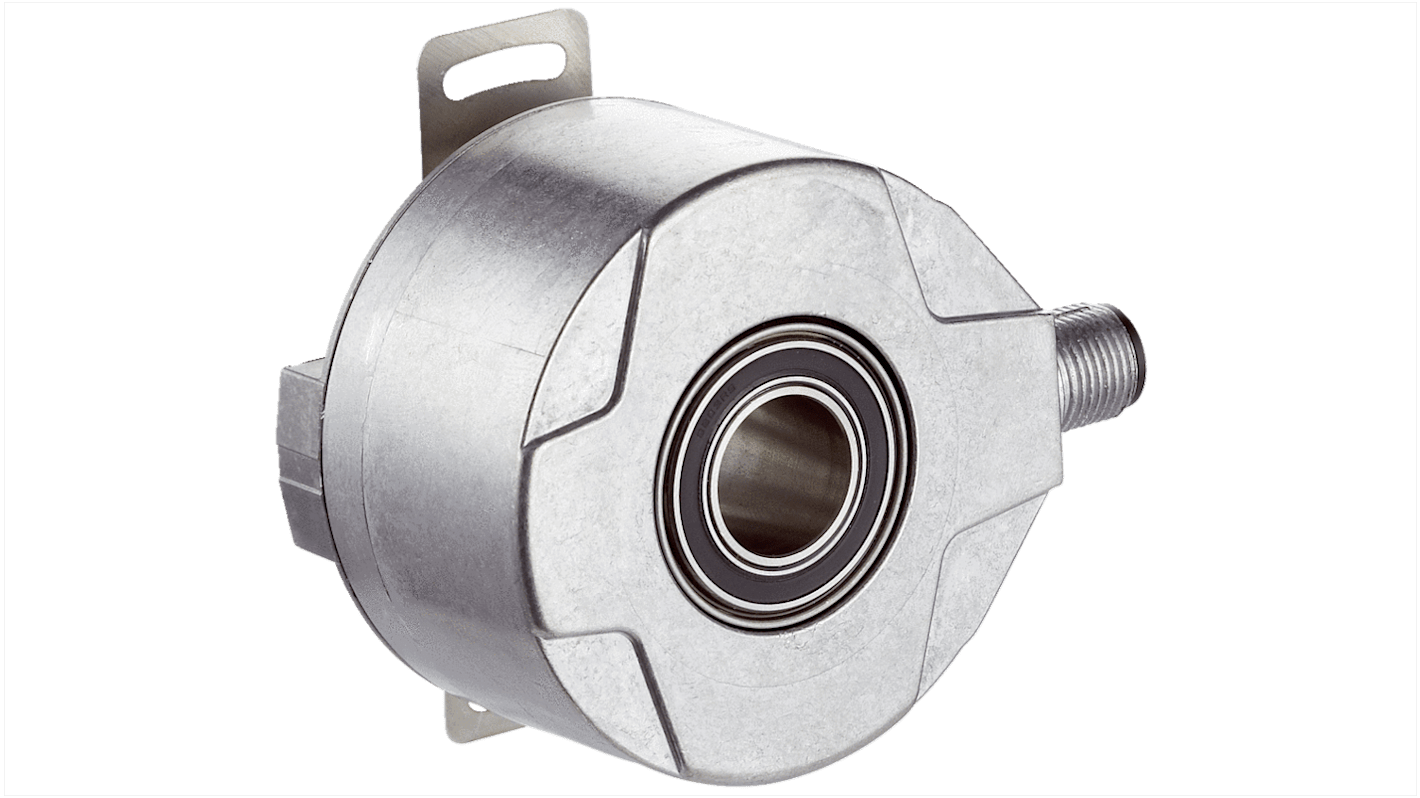

SICK DFS60 Series Incremental Encoder, IP65, Die Cast Aluminium Housing - DFS60B-TGEC01000 / 1064918
This incremental encoder provides precise rotational position and speed feedback for industrial automation and control systems. Designed for through hollow-shaft mounting, it delivers incremental signals via a push-pull Interface and is suited to electrically noisy environments where robust signal integrity and Compact packaging are required.
Features & Benefits
• 1000ppr output supports high-resolution motion control
• HTL push-pull Interface enables long-distance signal transmission
• Six-channel output offers A/B/Z and complementary channels
• Output frequency up to 600kHz for fast-response systems
• Supply range 10 to 32 V allows integration with varied control voltages
• IP65 enclosure protects electronics against dust and water ingress
• HTL push-pull Interface enables long-distance signal transmission
• Six-channel output offers A/B/Z and complementary channels
• Output frequency up to 600kHz for fast-response systems
• Supply range 10 to 32 V allows integration with varied control voltages
• IP65 enclosure protects electronics against dust and water ingress
**Applications**
• Suitable for servo and stepper motor feedback loops in factories
• Ideal for conveyor speed sensing and rotational monitoring
• Used with PLCs for position indexing in packaging machinery
• Can be used for rotary-axis feedback in CNC subsystems
• Ideal for conveyor speed sensing and rotational monitoring
• Used with PLCs for position indexing in packaging machinery
• Can be used for rotary-axis feedback in CNC subsystems
What shaft connection and mechanical limits apply during installation?
The device uses a through hollow shaft that accepts a 14mm mating shaft and permits limited radial and axial misalignment during static and dynamic conditions
allowable movements are specified separately for stationary and moving installations.
How does the encoder behave electrically under fault conditions?
The outputs include reverse-polarity protection and short-circuit tolerance with defined limits for shorted channels to supply or earth for a limited duration.
What environmental stresses can it withstand in continuous operation?
It tolerates wide humidity and vibration profiles, high shock loads and an operating temperature range that includes use up to 100°C in appropriate mounting conditions.
Which connector type and wiring considerations are required for signal and power?
An M12 male device connector is provided with multiple pins for signal channels, reference and supply
screened cable connection is recommended and the screen is bonded to the housing on the encoder side.
