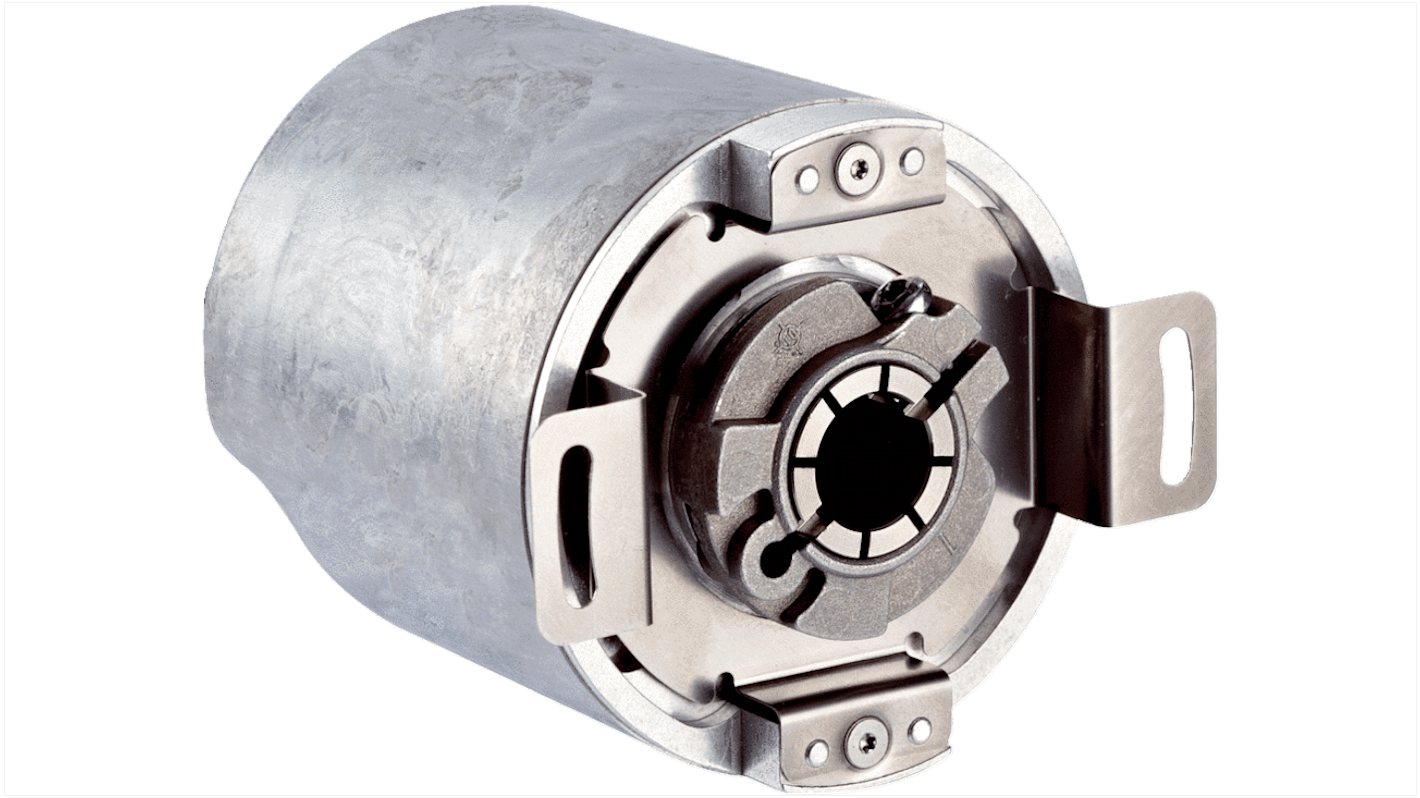

SICK AFS60 Series Absolute Absolute Encoder 30V, Profinet Signal, Blind Hollow Type, 10 mm Shaft

ดู Motion Control Sensors ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB45,059.83

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB48,214.02

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อกของผู้ผลิต
  • พร้อมส่งจากวันที่ 21 กันยายน 2569
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB45,059.83

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
266-7183
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
AFS60A-BDNB262144 / 1059047
ผู้ผลิต:
SICK
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

SICK

Encoder Technology

Absolute

Product Type

Absolute Encoder

Series

AFS60

Maximum Revolutions

6000rpm

Output Signal Type

Profinet

Shaft Type

Blind Hollow

Shaft Diameter

10mm

Interface Type

PROFINET

IP Rating

IP67, IP65

Maximum Supply Voltage

30V

Minimum Operating Temperature

-40°C

Overall Depth

71.5mm

Overall Height

60mm

Overall Width

72mm

Standards/Approvals

CE

Mount Type

Flange

Maximum Operating Temperature

85°C

COO (Country of Origin):
DE

SICK AFS60 Series Absolute Encoder, 10mm Shaft Diameter, PROFINET Interface - AFS60A-BDNB262144 / 1059047


This absolute encoder provides position feedback for industrial automation networks using a PROFINET interface. Designed for flange mounting with a blind hollow shaft, it operates across a wide temperature span suitable for demanding electrical and mechanical environments. The unit complies with regional CE requirements and connects to standard 30V supply systems for integration into motion-control and process applications.

Features and Benefits:


• Absolute measurement with 262,144 steps for precise position feedback
• PROFINET Interface enabling fast deterministic network communication
• Operates from −40°C to 85°C for extreme temperature resilience
• Rotational capability up to 6,000 r/min to support high-speed machinery
• IP65/IP67 protection rating for dust and water resistance in harsh sites
• Blind hollow 10mm shaft simplifying coupling with drive shafts

Applications


• Suitable for servo motor feedback in automated production lines
• Ideal for position sensing on rotary indexing tables
• Used with CNC peripherals requiring absolute position data
• Can be used for conveyor drive monitoring in wet environments
• Suitable for process plant actuators requiring networked feedback

What mounting arrangement does it use and how does that affect installation?


It employs a flange mount that secures the encoder to machinery faces, allowing straightforward alignment and rigid attachment for accurate measurement.

What supply voltage is required for integration with control equipment?


The device accepts a maximum supply voltage of 30 V, compatible with typical industrial control power distributions.

How is the encoder protected against ingress during washdown or outdoor use?


The housing meets IP65 and IP67 ratings, providing protection against dust and temporary immersion or powerful water jets depending on installation.

Can it handle high rotational speeds without performance loss?


The encoder is rated for rotational speeds up to 6,000 r/min, permitting use on fast-turning shafts while maintaining absolute position output.

Which shaft arrangement is provided for coupling to drive components?


A blind hollow shaft with a 10mm internal diameter is provided to accept a mating shaft for secure mechanical transmission.
