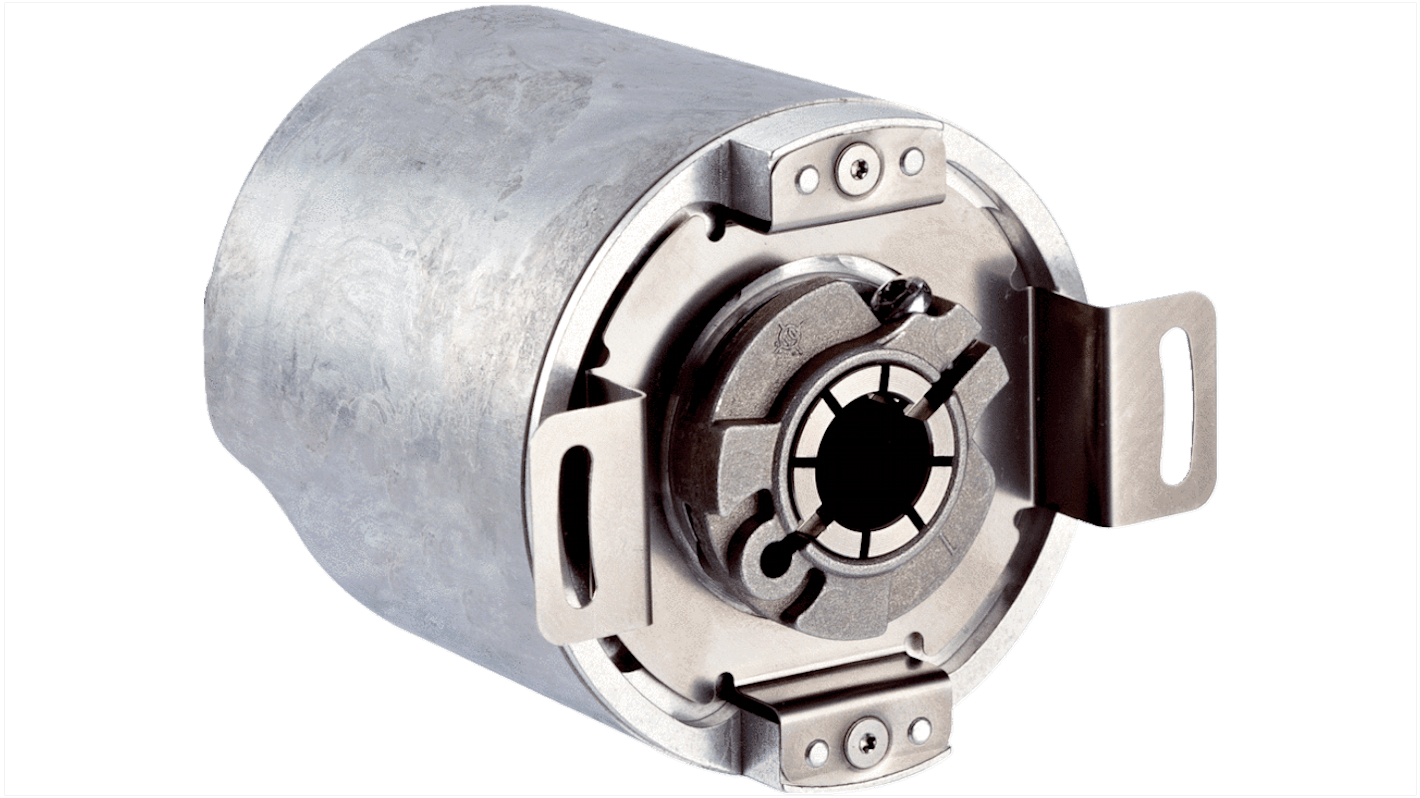

SICK AFM60 Series Absolute Absolute Encoder 32V, Blind Hollow Type, 14 mm Shaft

ดู Motion Control Sensors ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB40,579.48

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB43,420.04

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น
ต่อหน่วย
1 +THB40,579.48

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
266-7149
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
AFM60A-BGNB018X12 / 1059032
ผู้ผลิต:
SICK
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

SICK

Encoder Technology

Absolute

Product Type

Absolute Encoder

Series

AFM60

Maximum Revolutions

6000rpm

Shaft Type

Blind Hollow

Shaft Diameter

14mm

Interface Type

PROFINET

Terminal Type

Cable

IP Rating

IP67, IP65

Maximum Supply Voltage

32V

Minimum Operating Temperature

-40°C

Overall Depth

68.8mm

Standards/Approvals

CE

Overall Width

72mm

Overall Height

68.8mm

Maximum Operating Temperature

85°C

Mount Type

Flange

Overview


The high-resolution AFS/AFM60 Ethernet absolute encoders take high-precision measurements of the absolute position and speed. Comprehensive smart functions for diagnosing parameters such as temperature or operating time and for early error detection increase the machine and plant availability. Various configuration options – for example, modifying the resolution – simplify installation and enable customized adjustment to each application.

SICK provides function blocks for the encoders with a PROFINET and Ethernet/IP™ interface, and the AFS/AFM60 Ethernet/IP™ variants also come with an active web server. Their compact design also makes AFS/AFM60 Ethernet absolute encoders suitable for applications where space is at a premium.

At a glance


High-resolution absolute encoder with up to 30 bits (AFM60) or 18 bits (AFS60)

Face mount flange, servo flange, blind hollow shaft

Connection type: 3 x M12 axial plug

Communication interfaces: PROFINET, Ethernet/IP™, Ether CAT®

Round axis functionality

Diagnostic functions

Status display via 5 LEDs

Your Benefit


Their high resolution and measurement accuracy enable them to be used in demanding applications

Application-specific solutions thanks to a variety of mechanical interfaces

Smart diagnostics functions for increasing the availability of the overall system

Easy installation due to various configuration options and function blocks (type-dependent)

Fully scalable for binary, non-binary, and non-integer resolutions thanks to round axis functionality

Compact and cost-efficient design

Integrated web server for easy parameterization without the need for specialized interface knowledge (type-dependent)

Applications


Measurement of absolute position and speed in various machines and systems used in industrial automation as well as production and process technology, e.g., in storage systems, packaging machines, hydraulic presses, printing machines, rotating tables.
