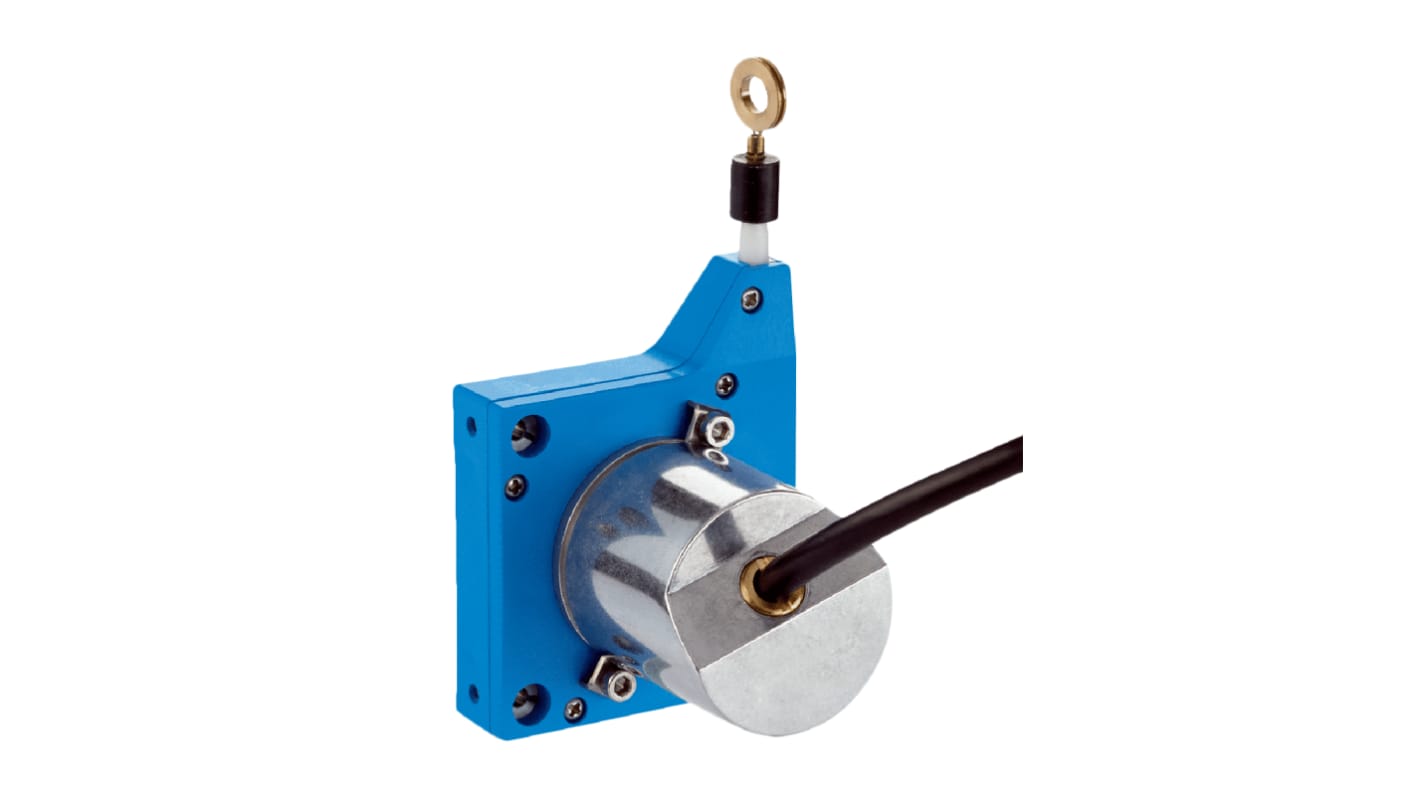

SICK ECOline Series Wire Draw Linear Measuring Encoder 30V, 2500 ppr ppr, HTL Signal, Servo Flange Type, 6 mm Shaft

This draw wire encoder is designed for high-precision measurement in various automation and mechanical applications. As a Compact cable connection encoder, it features an overall height, width, and depth of 55mm, making it suitable for tight spaces. With a supply voltage range of 7 to 30 V and a robust temperature operating range from -20°C to +70°C, this incremental encoder offers durability and versatility in demanding environments.

• Achieves 2500 pulses per revolution for high-resolution measurement
• Durable construction with IP50 and IP65 ratings for environmental protection
• Compact design facilitates easy installation in various setups
• Configured for cable connections, ensuring simple and robust connectivity

• Utilised for length measurement in automated production lines
• Effective in robotics for accurate position tracking
• Applied in textile machinery for precise fabric handling
• Used in packaging equipment to ensure accurate material feed
• Suitable for linear motion control systems requiring reliable feedback

The encoder requires a compatible cable connection that supports its voltage range of 7 to 30 V. Ensure that the connections are secure to prevent signal loss, and consider using shielded cables in noisy environments to maintain measurement integrity.

Operating within the specified temperature range of -20°C to +70°C ensures the encoder maintains accuracy and functionality. Exposure to temperatures outside this range may lead to reduced performance and potential damage, making it essential to monitor environmental conditions in industrial settings.

The incremental Interface allows for precise movement detection and position feedback, enabling effective control in automation applications. This capability makes it highly suitable for systems where continuous monitoring and adaptation are Crucial for optimal performance.

The encoder is suitable for outdoor applications with the proper IP65 rating, offering protection against dust and moisture. However, additional precautions should be taken to shield it from extreme environmental factors to ensure longevity and reliability in outdoor settings.
