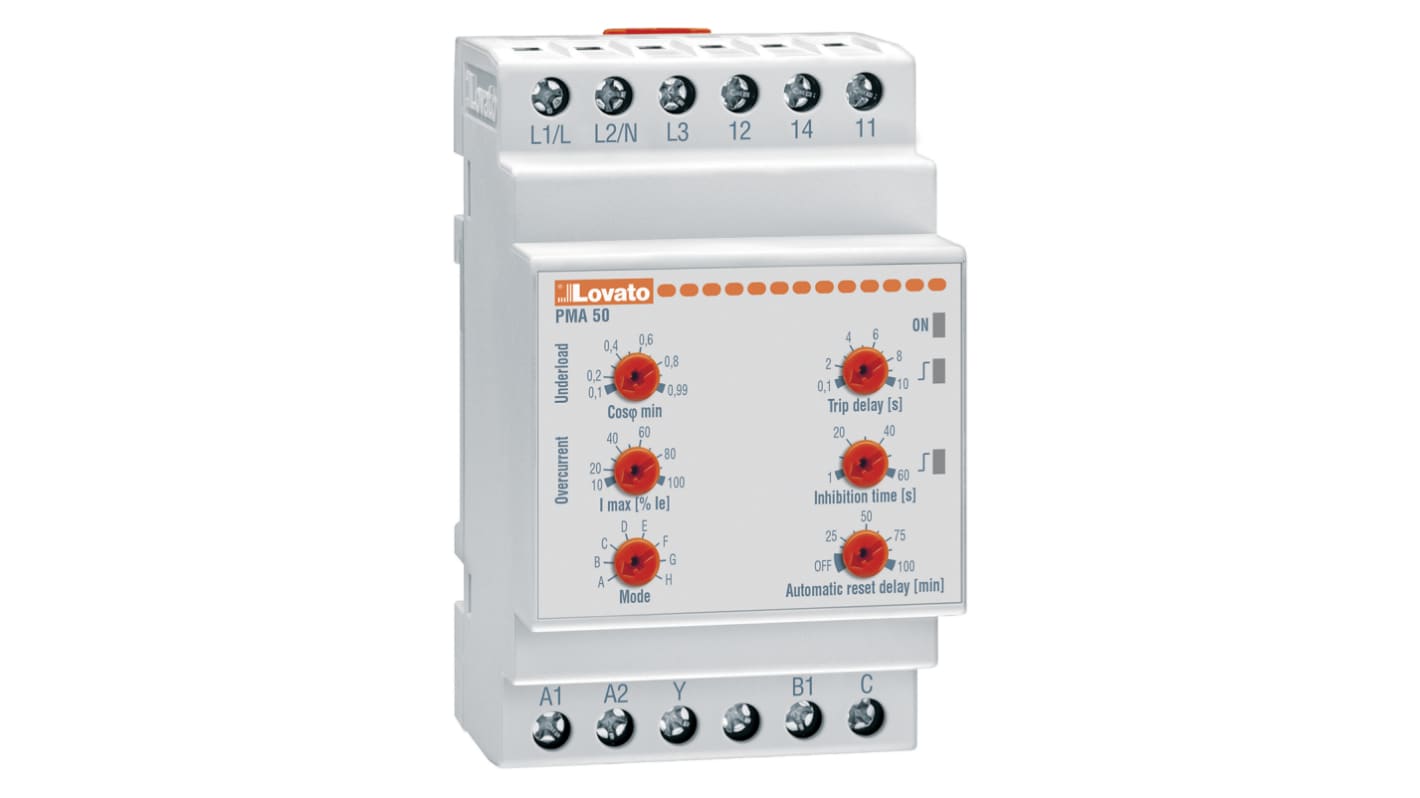

Lovato Electric Monitoring Relay, 3, 1 Phase, SPDT, DIN Rail, 100mA to 16A, 220V ac, 240 V ac
- RS Stock No.:
- 916-0195
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PMA50A240
- ผู้ผลิต:
- Lovato Electric
ยอดรวมย่อย (1 ชิ้น)*
THB13,541.72
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB14,489.64
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อกของผู้ผลิต
- พร้อมส่งจากวันที่ 21 ธันวาคม 2569
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB13,541.72 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 916-0195
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PMA50A240
- ผู้ผลิต:
- Lovato Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Lovato Electric | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3, 1 | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Minimum Current Sensed | 100mA | |
| Maximum Current Sensed | 16A | |
| Switching Voltage | 400V ac | |
| Power Consumption | 4.5VA | |
| Current Sensitivity | Overcurrent, Undercurrent | |
| Terminal Type | Screw | |
| IP Rating | IP40, IP20 | |
| Time Delay | 0.1 → 10 s | |
| Minimum Operating Temperature | +60°C | |
| Supply AC Voltage | 220V ac, 240V ac | |
| Relay Contact Current | 16A, 5A | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL 508, CSA C22, RoHS, IES/EN 60255-5, IEC/EN 61000-6-3, IEC/EN 61000-6-2 | |
| Length | 53.5mm | |
| Width | 64.9mm | |
| Height | 104.7mm | |
| Series | PMA50 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Lovato Electric | ||
Product Type Monitoring Relay | ||
Electrical Phase 3, 1 | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Minimum Current Sensed 100mA | ||
Maximum Current Sensed 16A | ||
Switching Voltage 400V ac | ||
Power Consumption 4.5VA | ||
Current Sensitivity Overcurrent, Undercurrent | ||
Terminal Type Screw | ||
IP Rating IP40, IP20 | ||
Time Delay 0.1 → 10 s | ||
Minimum Operating Temperature +60°C | ||
Supply AC Voltage 220V ac, 240V ac | ||
Relay Contact Current 16A, 5A | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL 508, CSA C22, RoHS, IES/EN 60255-5, IEC/EN 61000-6-3, IEC/EN 61000-6-2 | ||
Length 53.5mm | ||
Width 64.9mm | ||
Height 104.7mm | ||
Series PMA50 | ||
- COO (Country of Origin):
- IT
Current Monitoring Relay Pump Protection Single and Three Phase
The Lovato range of current monitoring pump protection relays, protect against any dry running with auxiliary AC power supply including singe and three phase systems. Complete with motor under-load and over-current control including direct connection of a maximum up to 16A or by a current transformer. Excellent tripping accuracy and voltage control range of 80 to 660 V ac and 1 relay output with 1 changeover contact SPDT
Modular DIN 43880 housing 3 module
Excellent tripping accuracy
IEC protection: IP40 on front and only when placed in an IP40 enclosure or control board
IP20 at terminals
Single and three phase system
AC maximum current control
Delayed trip
Auxiliary AC power supply
Automatic or manual reset TRMS current measurements
Resetting and inhibition input
Phase loss and incorrect phase sequence
Instant trip
Pump Protection Relays Current Monitoring
Lovato Orange Contactors, Control Relays and Accessories
