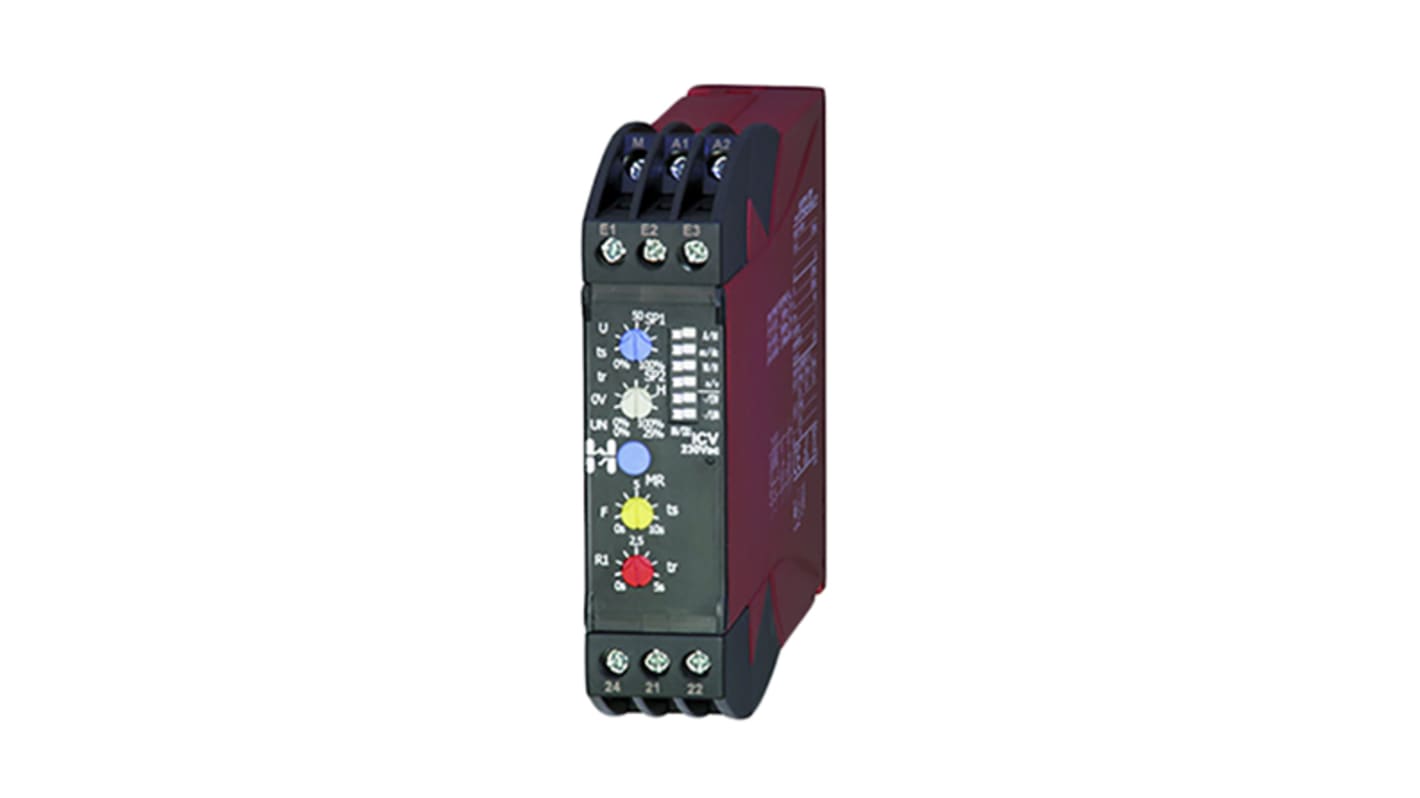

Hiquel Monitoring Relay, 1 Phase, 0/450 V Monitor Range, DPDT, DIN Rail
- RS Stock No.:
- 914-4645
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ICV 115Vac
- ผู้ผลิต:
- Hiquel
ยอดรวมย่อย (1 ชิ้น)*
THB5,221.57
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB5,587.08
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB5,221.57 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 914-4645
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ICV 115Vac
- ผู้ผลิต:
- Hiquel
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Hiquel | |
| Product Type | Monitoring Relay | |
| Function | Window, Stillson Pipe, Automatic, Undervoltage Monitoring | |
| Electrical Phase | 1 | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Switching Voltage | 230V ac | |
| Power Consumption | 1W | |
| Terminal Type | Screw | |
| Contact Current | 6A | |
| Minimum Operating Temperature | -20°C | |
| Monitoring Voltage Range | 0/450 V | |
| Maximum Operating Temperature | 60°C | |
| Series | ICV | |
| Width | 22.5mm | |
| Length | 93.5mm | |
| Standards/Approvals | VDE 0435, EN 60947-5-1 | |
| Height | 110mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Hiquel | ||
Product Type Monitoring Relay | ||
Function Window, Stillson Pipe, Automatic, Undervoltage Monitoring | ||
Electrical Phase 1 | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Switching Voltage 230V ac | ||
Power Consumption 1W | ||
Terminal Type Screw | ||
Contact Current 6A | ||
Minimum Operating Temperature -20°C | ||
Monitoring Voltage Range 0/450 V | ||
Maximum Operating Temperature 60°C | ||
Series ICV | ||
Width 22.5mm | ||
Length 93.5mm | ||
Standards/Approvals VDE 0435, EN 60947-5-1 | ||
Height 110mm | ||
- COO (Country of Origin):
- AT
ICV Series Voltage Control Monitor
Hiquel ICV series monitors a single phase voltage signal. It is suitable for use with alternate and direct voltage signals. Three different voltage ranges available to improve the measuring precision. Thresholds for alarm functions, alarm reaction time and start delay time can be easily adjusted using the rotary switches on the front plate.
AC or DC voltage monitor
3 different voltage ranges
2 selectable measuring functions
Automatic or manual reset selectable
Alarm memory function
Output relay contact invertable
DPCO alarm relay
LED indicator
22.5 mm DIN rail mount housing
Hiquel in-Case Series Monitoring Relays
HIQUEL in-Case series, an integrated range of industrial monitoring and timing relays in a compact 22.5 mm DIN Rail case. Designed with emphasis on flexibility and incorporating a new micro-controller, just four monitoring relays offer a complete range. Featuring single phase current and voltage, 3 phase voltage, and thermistor monitoring. With all popular functions, combinations and options selected by switches.
