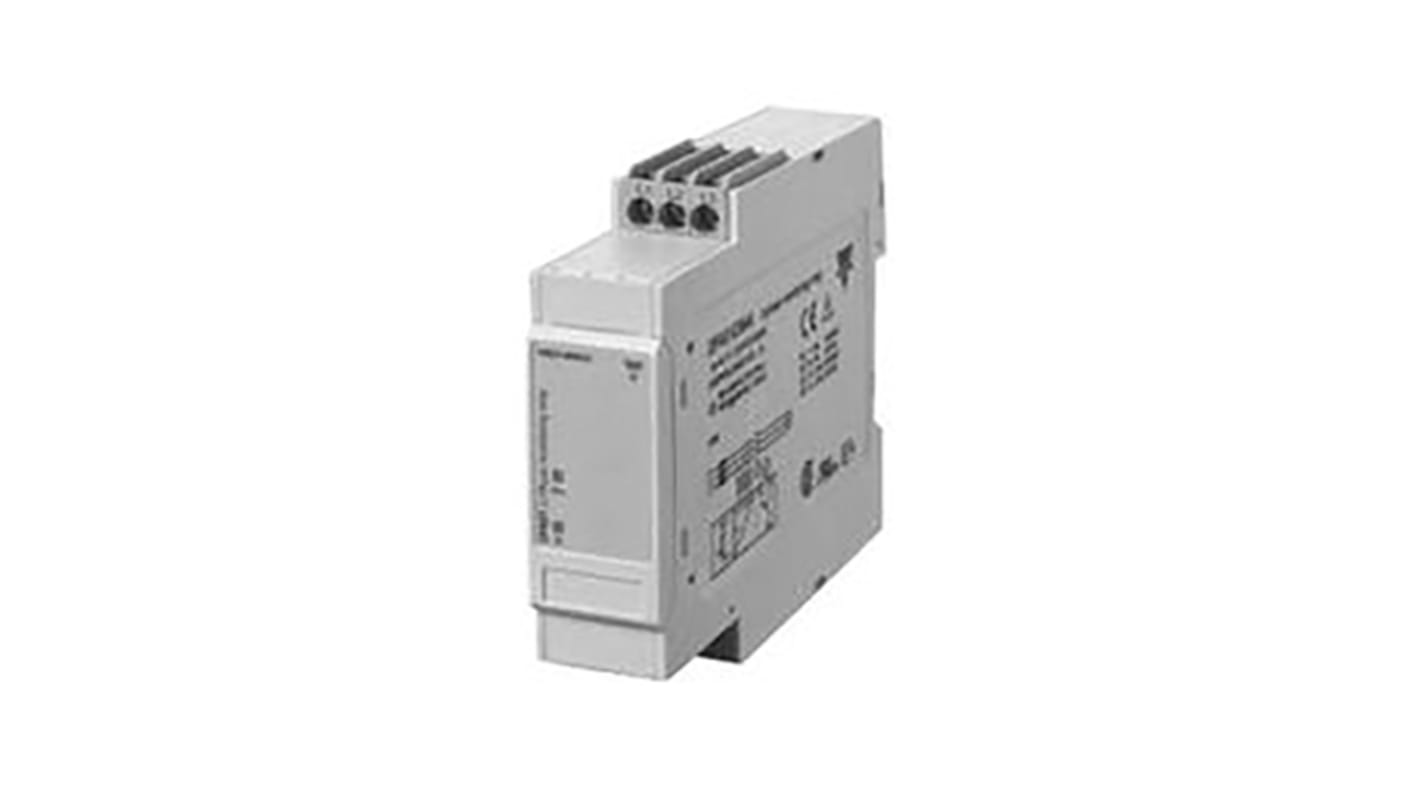

Carlo Gavazzi Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 510 → 760V ac, DIN Rail

RS Stock No.:: 859-3083
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: DPA01CM69
ผู้ผลิต / Manufacturer:: Carlo Gavazzi

Carlo Gavazzi Phase, Voltage Monitoring Relay, 3 Phase, SPDT, 510 → 760V ac, DIN Rail

15 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)

ราคา / Price Each

THB12,414.57

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB13,283.59

(รวมภาษีมูลค่าเพิ่ม)

Units	ต่อหน่วย
1 +	THB12,414.57

RS Stock No.:: 859-3083
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: DPA01CM69
ผู้ผลิต / Manufacturer:: Carlo Gavazzi

ข้อมูลทางเทคนิค / Technical Data Sheets

Datasheet

Legislation and Compliance

สถานะRoHS: ไม่สามารถใช้ได้

COO (Country of Origin):: IT

รายละเอียดสินค้า / Product Details

Over Voltage - Over Current Monitoring Relay

Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.

AC/DC over voltage monitoring relay
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Monitoring Application	Phase, Voltage
Electrical Phase	3
Voltage Sensing Range	510 → 760V ac
Contact Configuration	SPDT
Mounting Type	DIN Rail
Phase Sensitivity	Phase Loss, Phase Sequence
Series	DPA01
Maximum Voltage Sensed	760V ac
Width	22.5mm
Dimensions	99.5 x 22.5 x 80mm
Minimum Voltage Sensed	510V ac
Minimum Operating Temperature	-20°C
Height	80mm
Length	99.5mm
