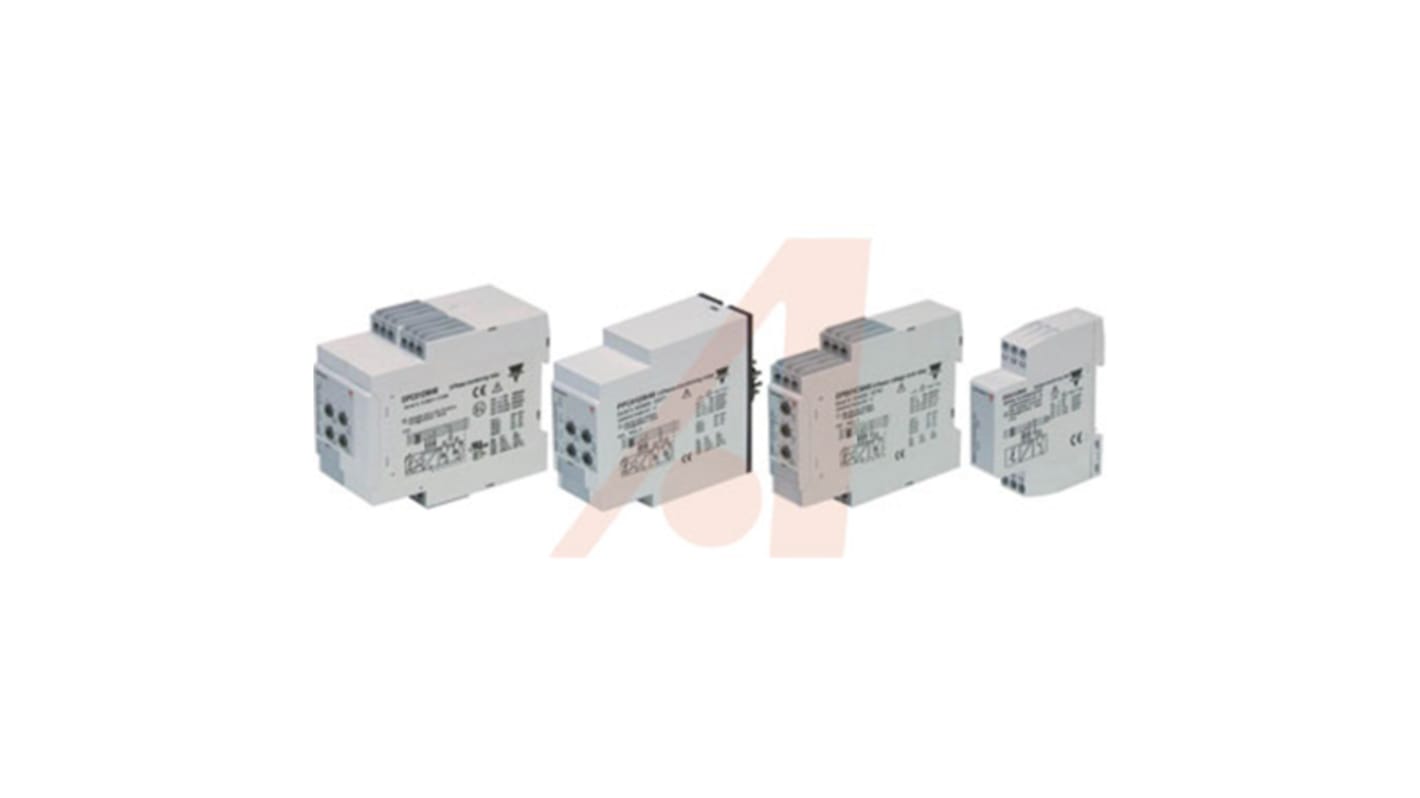

Carlo Gavazzi Phase, Voltage Monitoring Relay, 3, 3+N Phase, SPDT, 177 → 275V ac, DIN Rail
- RS Stock No.:
- 857-7690
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DPC01DM23
- ผู้ผลิต:
- Carlo Gavazzi
ยอดรวมย่อย (1 ชิ้น)*
THB8,148.65
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB8,719.06
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB8,148.65 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 857-7690
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DPC01DM23
- ผู้ผลิต:
- Carlo Gavazzi
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Monitoring Application | Phase, Voltage | |
| Electrical Phase | 3, 3+N | |
| Voltage Sensing Range | 177 → 275V ac | |
| Contact Configuration | SPDT | |
| Voltage Sensitivity | Overvoltage, Undervoltage | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Asymmetry, Phase Loss, Phase Sequence, Tolerance | |
| Time Delay | 1 s, 6s | |
| Frequency Sensing Range | 50 → 60Hz | |
| Series | DPC01 | |
| Operating Temperature Range | +60°C | |
| Terminal Type | Screw | |
| Minimum Frequency Sensed | 50Hz | |
| Height | 80mm | |
| Length | 99.5mm | |
| Maximum Frequency Sensed | 60Hz | |
| Maximum Voltage Sensed | 275V ac | |
| Dimensions | 99.5 x 45 x 80mm | |
| Maximum Operating Temperature | +60°C | |
| Width | 45mm | |
| Minimum Operating Temperature | -20°C | |
| Minimum Voltage Sensed | 177V ac | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Monitoring Application Phase, Voltage | ||
Electrical Phase 3, 3+N | ||
Voltage Sensing Range 177 → 275V ac | ||
Contact Configuration SPDT | ||
Voltage Sensitivity Overvoltage, Undervoltage | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Asymmetry, Phase Loss, Phase Sequence, Tolerance | ||
Time Delay 1 s, 6s | ||
Frequency Sensing Range 50 → 60Hz | ||
Series DPC01 | ||
Operating Temperature Range +60°C | ||
Terminal Type Screw | ||
Minimum Frequency Sensed 50Hz | ||
Height 80mm | ||
Length 99.5mm | ||
Maximum Frequency Sensed 60Hz | ||
Maximum Voltage Sensed 275V ac | ||
Dimensions 99.5 x 45 x 80mm | ||
Maximum Operating Temperature +60°C | ||
Width 45mm | ||
Minimum Operating Temperature -20°C | ||
Minimum Voltage Sensed 177V ac | ||
- COO (Country of Origin):
- IT
Over Voltage - Over Current Monitoring Relay
Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.
AC/DC over voltage monitoring relay
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available
