Omron Monitoring Relay, 1 Phase, SPDT, DIN Rail, 100V ac, 240 V ac 24 V dc
- RS Stock No.:
- 819-3305
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- K8AK-VW3 100-240VAC
- ผู้ผลิต:
- Omron
ยอดรวมย่อย (1 ชิ้น)*
THB7,447.05
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB7,968.34
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB7,447.05 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 819-3305
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- K8AK-VW3 100-240VAC
- ผู้ผลิต:
- Omron
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Omron | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Power Consumption | 4.6VA | |
| Switching Voltage | 250V ac | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Contact Current | 5A | |
| Supply DC Voltage | 24 V dc | |
| Supply AC Voltage | 100, 240V ac | |
| Maximum Operating Temperature | 60°C | |
| Length | 22.5mm | |
| Width | 100mm | |
| Height | 95mm | |
| Series | K8AK-VW | |
| Standards/Approvals | RoHS, EN 61326-1, UL 61010-1 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Omron | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Power Consumption 4.6VA | ||
Switching Voltage 250V ac | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Contact Current 5A | ||
Supply DC Voltage 24 V dc | ||
Supply AC Voltage 100, 240V ac | ||
Maximum Operating Temperature 60°C | ||
Length 22.5mm | ||
Width 100mm | ||
Height 95mm | ||
Series K8AK-VW | ||
Standards/Approvals RoHS, EN 61326-1, UL 61010-1 | ||

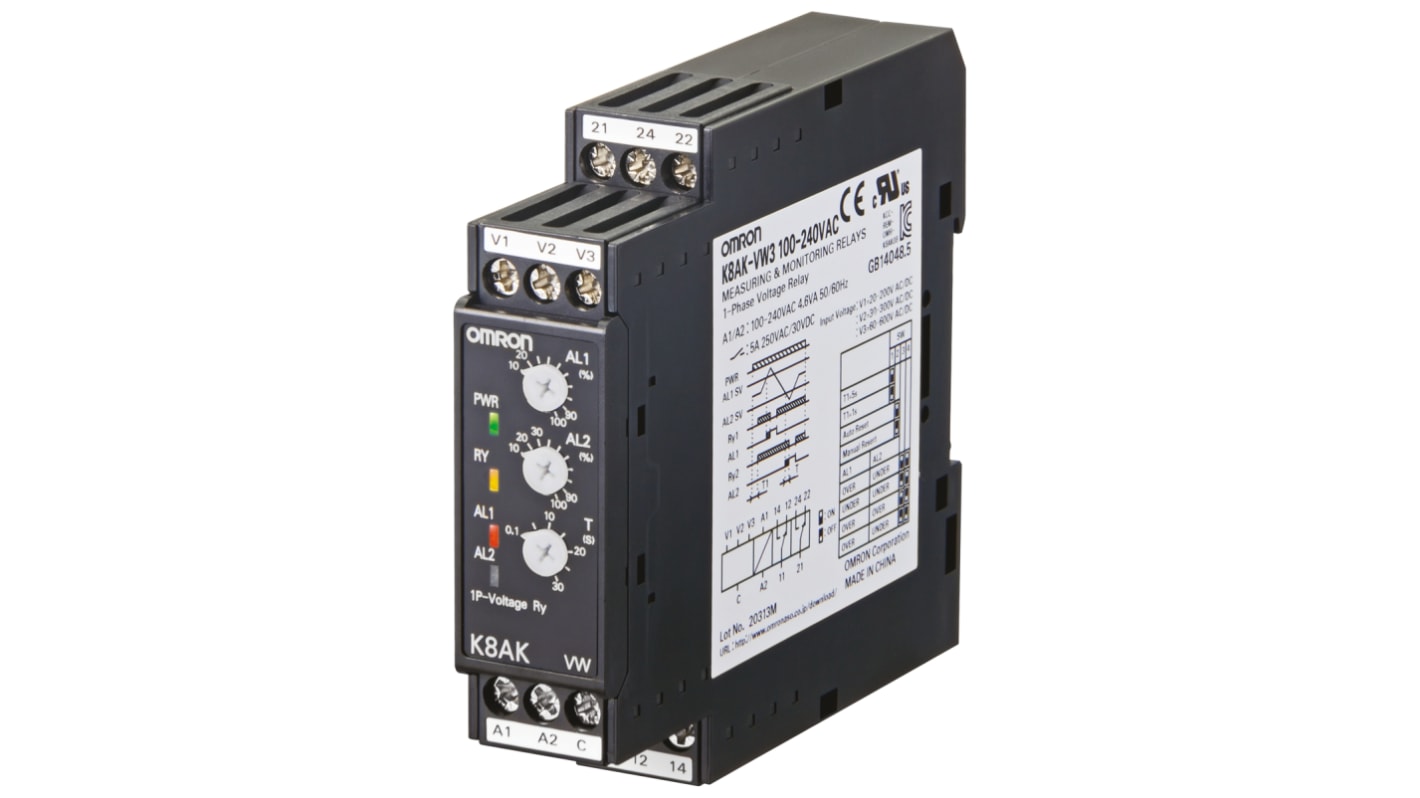

Omron K8AK-VW Series Monitoring Relay, 1 Electrical Phase, 2 x SPDT Contact Configuration - K8AK-VW3 100-240VAC
This monitoring relay is designed for effective voltage monitoring in industrial environments. The compact relay measures 22.5 x 100 x 95 mm and can detect both overvoltage and undervoltage conditions, ensuring optimal performance of connected equipment. It supports a voltage sensing range of 20 to 600 V AC/DC, making it versatile for various applications.
Features & Benefits
• Monitors overvoltage and undervoltage simultaneously for comprehensive protection
• Manual and automatic reset options for flexible operation
• Two SPDT output relays rated at 5A for reliable signalling
• LED indicators for quick status monitoring of input signals and alarms
• Supports input frequencies from 40 to 500 Hz, ensuring adaptability
Applications
• Ideal for protecting electrical systems in manufacturing facilities
• Used for monitoring voltage levels in automation systems
• Utilised with industrial equipment to prevent damage from voltage fluctuations
• Applicable in sectors requiring consistent voltage oversight, such as mechanical and electrical industries
What is the time delay range for this product?
The time delay settings can be adjusted between 0.1 to 30 seconds, allowing for tailored responses to voltage changes.
How does this relay facilitate user control for settings?
It features knobs for easily setting the operating values for overvoltage and undervoltage, enhancing usability without complex programming.
What voltage sensing ranges does it cover?
It accommodates a voltage sensing range from 20V to 600V AC/DC, providing ample coverage for various industrial applications.
Is there a specific mounting requirement for installation?
Yes, it is designed for DIN rail mounting, which facilitates straightforward installation in electrical cabinets.
Standards
UL 60947-5-1, UL 508, IP 20
