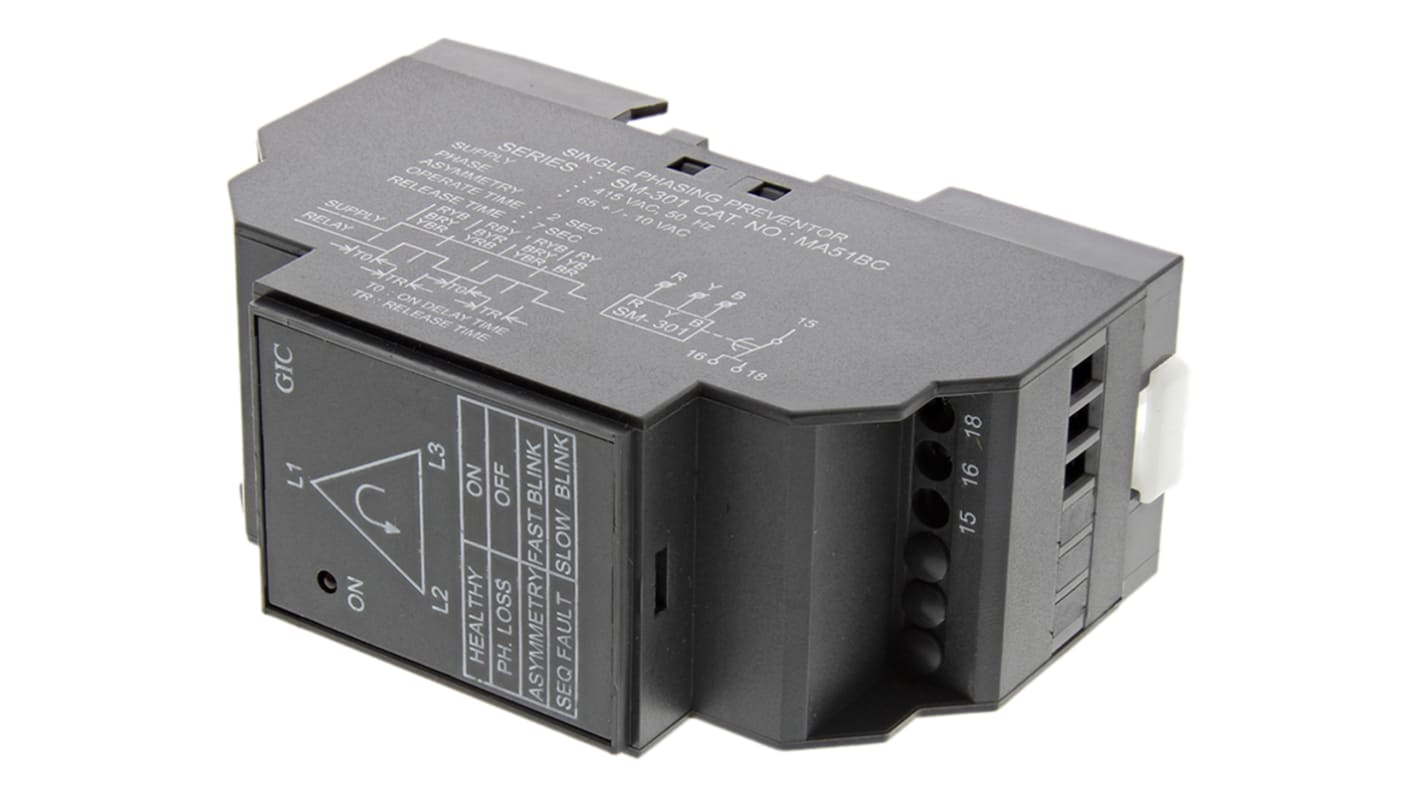

GIC Voltage Monitoring Relay, 3 Phase, SPDT, DIN Rail
- RS Stock No.:
- 794-3935
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MA51BC
- ผู้ผลิต / Manufacturer:
- GIC
11 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB1,360.23
(exc. VAT)
THB1,455.45
(inc. VAT)
| Units | Per unit |
| 1 - 2 | THB1,360.23 |
| 3 + | THB1,319.42 |
- RS Stock No.:
- 794-3935
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MA51BC
- ผู้ผลิต / Manufacturer:
- GIC
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
รายละเอียดสินค้า / Product Details
GIC Supply Monitoring SM Range
GIC's profesional range of single and three phase supply monitors that are feature rich for industrial and agricultural use.
The range covers phase loss/phase reversal, phase unbalance
Available with under and over voltage
Available with adjustable time delay
Also available with LED indication
Base / din rail mounting
Available with under and over voltage
Available with adjustable time delay
Also available with LED indication
Base / din rail mounting
GIC Supply Monitor Relays
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Monitoring Application | Voltage |
| Electrical Phase | 3 |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Maximum Current Sensed | 5A |
| Time Delay | 2 s, 7s |
| Series | SM 301 |
| Current Range | Maximum of 5A |
| Operating Temperature Range | +50°C |
| Length | 60mm |
| Height | 90mm |
| Minimum Operating Temperature | -10°C |
| Width | 36mm |
| Maximum Operating Temperature | +50°C |
| Dimensions | 60 x 36 x 90mm |
