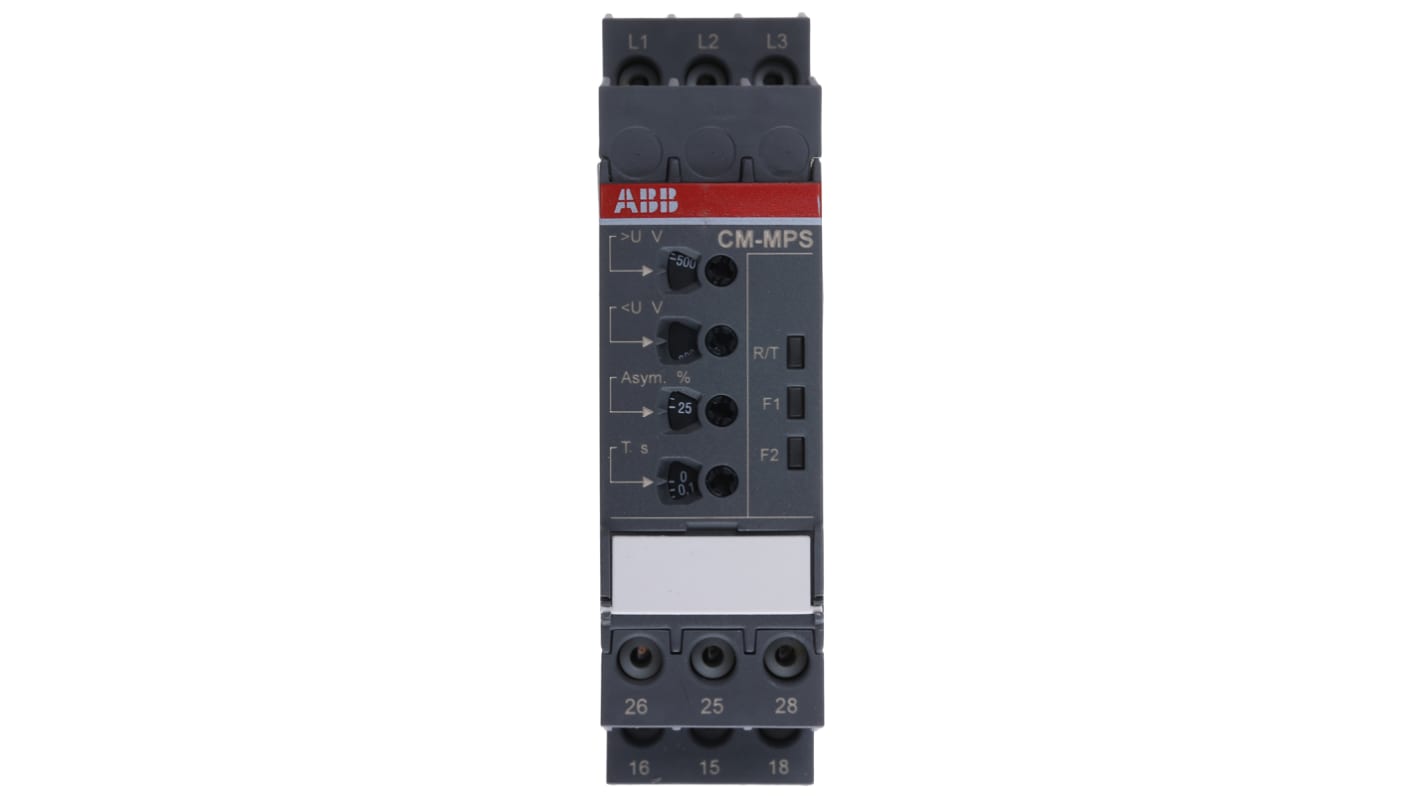

ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 → 500V ac, DIN Rail

RS Stock No.:: 775-8034
หมายเลขชิ้นส่วนของผู้ผลิต:: 1SVR740884R3300 CM-MPS.41P
ผู้ผลิต:: ABB

ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 → 500V ac, DIN Rail

ดู Monitoring Relays ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB9,533.36

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB10,200.70

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

4 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB9,533.36

*price indicative

RS Stock No.:: 775-8034
หมายเลขชิ้นส่วนของผู้ผลิต:: 1SVR740884R3300 CM-MPS.41P
ผู้ผลิต:: ABB

ข้อมูลทางเทคนิค

Technical data sheets

Legislation and Compliance

Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	ABB
	Monitoring Application	Phase, Voltage
	Electrical Phase	3
	Voltage Sensing Range	300 → 500V ac
	Contact Configuration	DPDT
	Voltage Sensitivity	Overvoltage, Undervoltage
	Mounting Type	DIN Rail
	Phase Sensitivity	Phase Failure, Phase Imbalance, Phase Sequence
	Time Delay	0.1 → 30 s, 0s
	Frequency Sensing Range	45 → 65Hz
	Series	CM-MPS
	Maximum Voltage Sensed	500V ac
	Operating Temperature Range	+60°C
	Minimum Voltage Sensed	300V ac
	Height	85.6mm
	Dimensions	103.7 x 22.5 x 85.6mm
	Length	103.7mm
	Terminal Type	Push In
	Width	22.5mm
	Maximum Operating Temperature	+60°C
	Minimum Operating Temperature	-25°C

	เลือกทั้งหมด
	Brand ABB
	Monitoring Application Phase, Voltage
	Electrical Phase 3
	Voltage Sensing Range 300 → 500V ac
	Contact Configuration DPDT
	Voltage Sensitivity Overvoltage, Undervoltage
	Mounting Type DIN Rail
	Phase Sensitivity Phase Failure, Phase Imbalance, Phase Sequence
	Time Delay 0.1 → 30 s, 0s
	Frequency Sensing Range 45 → 65Hz
	Series CM-MPS
	Maximum Voltage Sensed 500V ac
	Operating Temperature Range +60°C
	Minimum Voltage Sensed 300V ac
	Height 85.6mm
	Dimensions 103.7 x 22.5 x 85.6mm
	Length 103.7mm
	Terminal Type Push In
	Width 22.5mm
	Maximum Operating Temperature +60°C
	Minimum Operating Temperature -25°C

COO (Country of Origin):: DE

ABB CM-MPS Series Monitoring Relay, 300 to 500V AC Voltage Sensing Range, 0.1 to 30 s Time Delay - 1SVR740884R3300 CM-MPS.41P

This monitoring relay is designed for phase and voltage applications, ideal for industrial settings. With compact dimensions of 103.7 x 22.5 x 85.6mm, it can be easily mounted on a DIN rail. This device ensures reliable monitoring of electrical phases, protecting equipment from potential damage due to voltage fluctuations.

Features & Benefits

• Monitors both overvoltage and undervoltage situations
• Sensitive to phase failure, imbalance, and sequence
• Adjustable time delay from 0.1 to 30 seconds
• Supports a voltage sensing range between 300 to 500V AC
• Compatible with 50 to 60Hz frequency sensing
• Robust operating temperature range from -20 to +60°C

Applications

• Used for phase monitoring in industrial machinery
• Applied in voltage fluctuation detection for electrical systems
• Utilised in data centres for equipment protection
• Ideal for automation systems requiring reliable voltage regulation

How does this device improve safety in electrical systems?

It actively monitors voltage levels and phase characteristics, providing critical protection against potential damage caused by electrical anomalies.

What are the advantages of using a DPDT relay in monitoring applications?

The DPDT relay allows for multiple circuit control, enhancing flexibility in managing various electrical outputs while providing reliable monitoring capabilities.

What range of operating temperatures can it withstand, and why is that important?

The relay operates effectively within -20 to +60°C, ensuring reliability in diverse environmental conditions, which is crucial for maintaining system integrity in industrial setups.

Can this relay detect phase sequence issues, and why is that beneficial?

Yes, it is configured to identify phase sequence errors, preventing incorrect motor rotation direction which could lead to equipment failure or operational inefficiencies.
