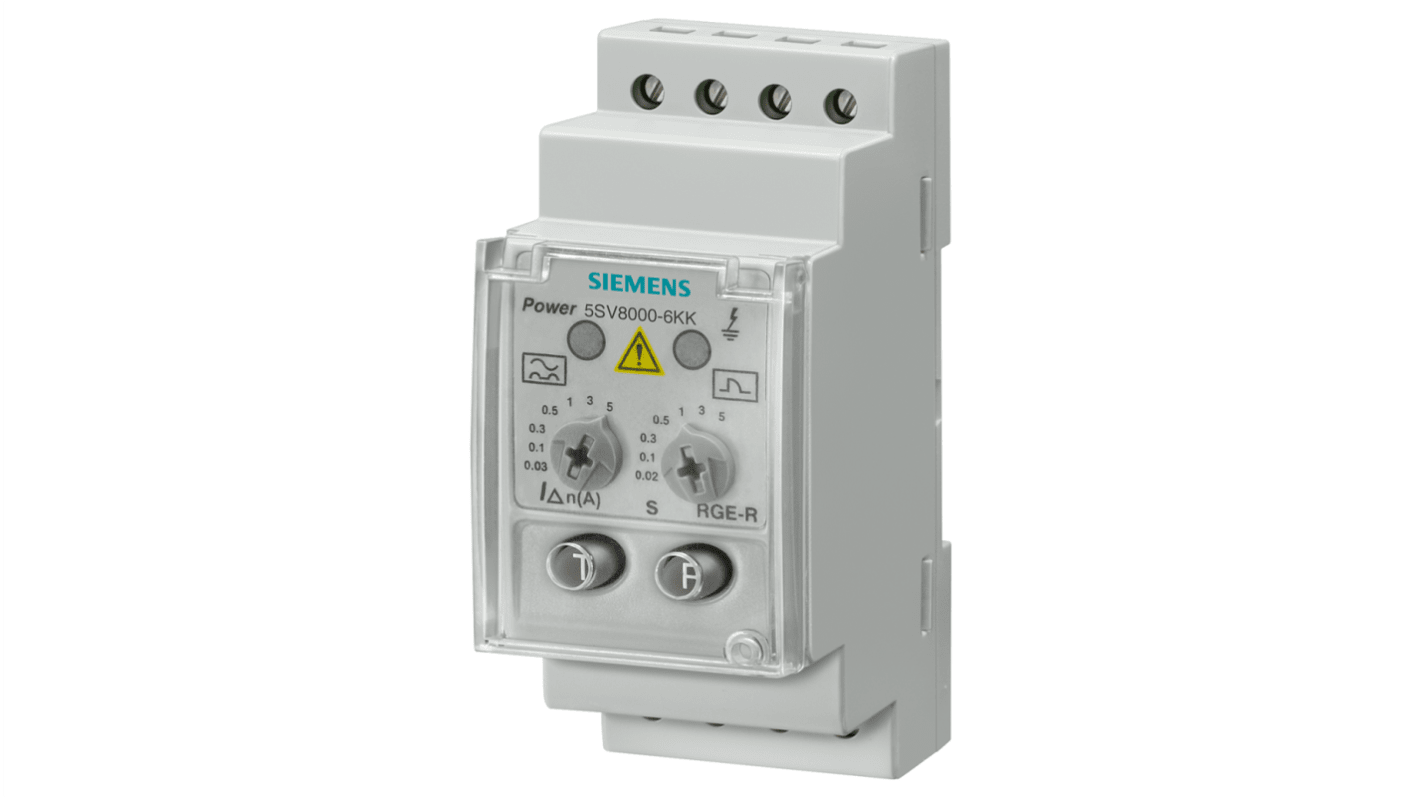

Siemens Monitoring Relay, Snap-On, 30mA to 5A, 275 V dc, 275V ac
- RS Stock No.:
- 772-1215
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 5SV8000-6KK
- ผู้ผลิต:
- Siemens
ยอดรวมย่อย (1 ชิ้น)*
THB15,499.40
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB16,584.36
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB15,499.40 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 772-1215
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 5SV8000-6KK
- ผู้ผลิต:
- Siemens
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Siemens | |
| Product Type | Monitoring Relay | |
| Mount Type | Snap-On | |
| Minimum Current Sensed | 30mA | |
| Switching Voltage | 275V | |
| Maximum Current Sensed | 5A | |
| Power Consumption | 2W | |
| Current Sensitivity | Residual | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Time Delay | 0.02 to 5 s | |
| Supply AC Voltage | 275V ac | |
| Supply DC Voltage | 275 V dc | |
| Relay Contact Current | 5A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Series | 5SV | |
| Width | 36mm | |
| Length | 74mm | |
| Height | 88.5mm | |
| Standards/Approvals | RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Siemens | ||
Product Type Monitoring Relay | ||
Mount Type Snap-On | ||
Minimum Current Sensed 30mA | ||
Switching Voltage 275V | ||
Maximum Current Sensed 5A | ||
Power Consumption 2W | ||
Current Sensitivity Residual | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Time Delay 0.02 to 5 s | ||
Supply AC Voltage 275V ac | ||
Supply DC Voltage 275 V dc | ||
Relay Contact Current 5A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Series 5SV | ||
Width 36mm | ||
Length 74mm | ||
Height 88.5mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- ES
Siemens Monitoring Relay, 5A Maximum Current Sensed, 30mA Minimum Current Sensed - 5SV8000-6KK
This monitoring relay is designed for effective current sensing applications, supporting up to 5A for precise monitoring. With its compact dimensions of 74 x 36 x 88.5 mm, it provides flexibility in installation across various settings. The device is suitable for environments demanding strict electrical safety measures and is compliant with CE standards.
Features & Benefits
• Adjustable response delay between 0.02 to 5 seconds
• Designed for current sensing within 0.3 to 5 A range
• Screw terminal configuration for secure connections
• Operates effectively in a temperature range of -10 to +50 °C
Applications
• Used in industrial monitoring solutions requiring precise current detection
• Utilised for monitoring circuits in various electrical systems
• Ideal for integrating with compatible summation current transformers
• Important in maintaining electrical safety in industrial environments
What is the operating voltage range for this relay?
The relay operates on an AC voltage within a range of 184V to 276V, with a rated value of 230V, ensuring versatility in various applications.
How does the error memory function enhance usability?
The error memory feature enables users to track previous faults, facilitating quick diagnostics and maintenance for enhanced operational efficiency and safety.
What type of current transformers can be connected?
It is compatible with a range of summation current transformers, specifically models 5SV8700-0KK to 5SV8706-0KK, allowing for varied installation options.
What is the significance of the protection classes?
The IP20 protection at connection points protects against dust ingress, while the IP41 rating allows for some resistance to splashing, enhancing the device’s reliability in challenging environments.
