- RS Stock No.:
- 445-9046
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IL5882.38 AC/DC24V-230V Tv=5S
- ผู้ผลิต / Manufacturer:
- Dold
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB14,971.82
(exc. VAT)
THB16,019.85
(inc. VAT)
Units | Per unit |
1 + | THB14,971.82 |
- RS Stock No.:
- 445-9046
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IL5882.38 AC/DC24V-230V Tv=5S
- ผู้ผลิต / Manufacturer:
- Dold
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

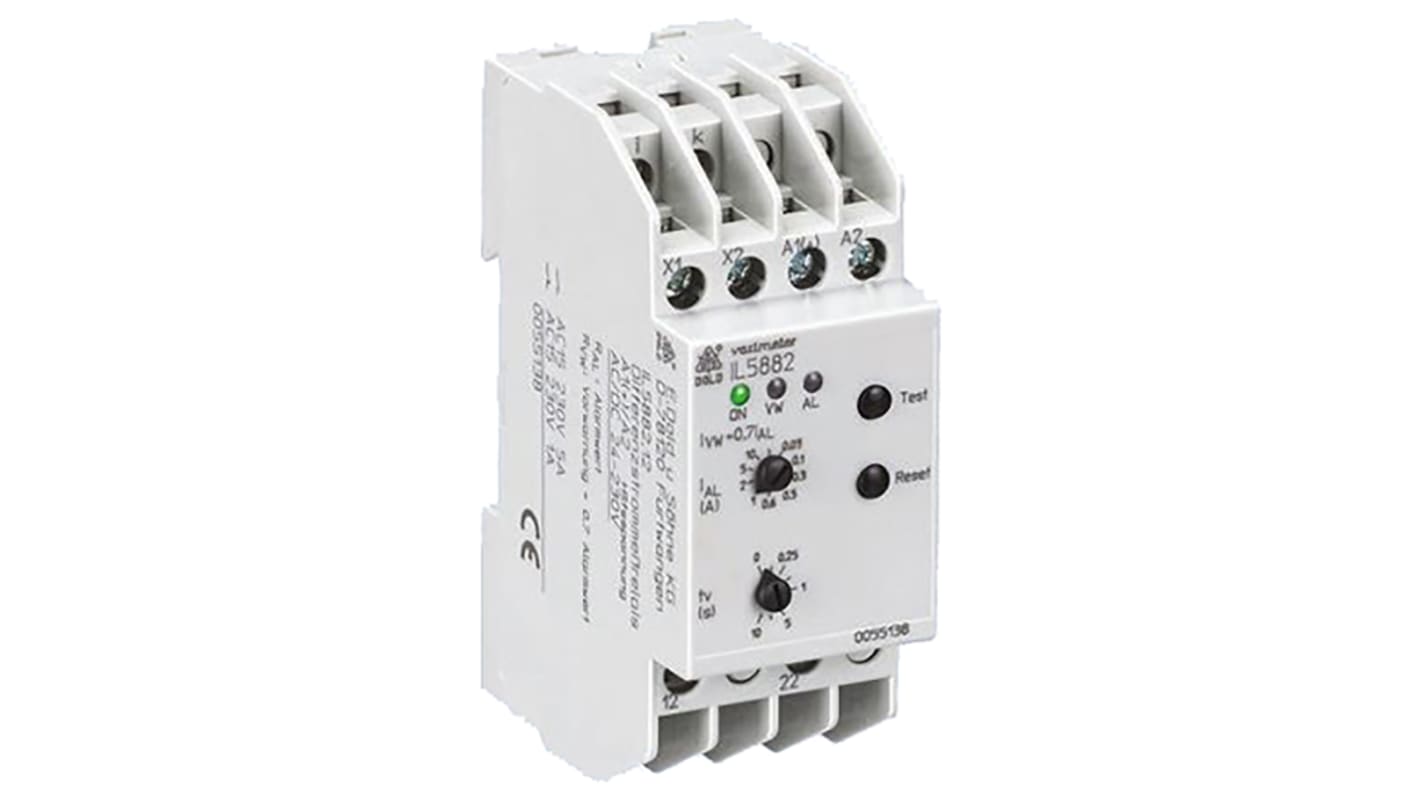

Differential current monitor IL 5882
Detection ranges from 30 mA → 10 A with a connected ND 5019 differential current transformer
Programmable for automatic or manual reset after error rectification
Rest current principle
With advance warning
Delete and test buttons
Wire breakage detection
Short reaction time
Adjustable response delay
LED displays for auxiliary voltage and contact position
2 x 1 changeover
Programmable for automatic or manual reset after error rectification
Rest current principle
With advance warning
Delete and test buttons
Wire breakage detection
Short reaction time
Adjustable response delay
LED displays for auxiliary voltage and contact position
2 x 1 changeover
Detects insulation faults in earthed networks such as RCCBs but without interruption. For monitoring and preventive maintenance of electrical systems.
Standards
IEC 255, EN 61 557, VDE 0413
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Monitoring Application | Current |
Contact Configuration | DPDT |
Mounting Type | DIN Rail |
Minimum Current Sensed | 10mA |
Maximum Current Sensed | 10A |
Time Delay | 0 → 5s |
Series | IL 5882 |
Dimensions | 63 x 35 x 90mm |
Maximum Operating Temperature | +60°C |
Width | 35mm |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | +60°C |
Length | 63mm |
Current Range | 10 mA → 10A |
Height | 90mm |
