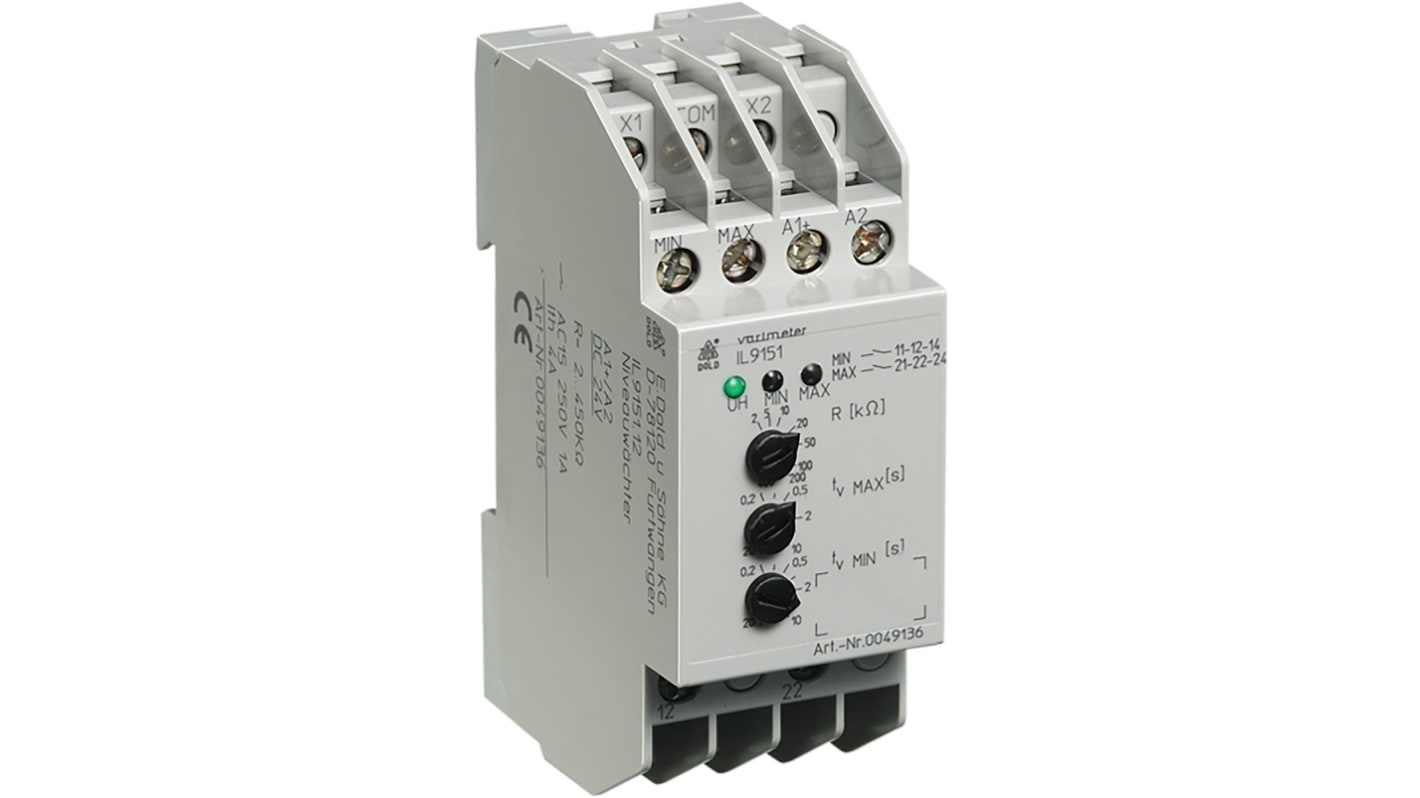

Dold Monitoring Relay, 2 CO, DIN Rail to 15mA, 24 V dc, 230V ac

RS Stock No.:: 327-7641
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: IL9151.12 2-450kOHM AC230V 0.2-20S
ผู้ผลิต:: Dold

Dold Monitoring Relay, 2 CO, DIN Rail to 15mA, 24 V dc, 230V ac

ยอดรวมย่อย (1 ชิ้น)*

THB8,193.39

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB8,766.93

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

หมดสต็อกชั่วคราว

2 ชิ้นจะส่งได้หลังจากวันที่ 11 พฤษภาคม 2569 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB8,193.39

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 327-7641
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: IL9151.12 2-450kOHM AC230V 0.2-20S
ผู้ผลิต:: Dold

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Dold
	Product Type	Monitoring Relay
	Contact Configuration	2 CO
	Mount Type	DIN Rail
	Power Consumption	2VA
	Maximum Current Sensed	15mA
	Terminal Type	Flat
	IP Rating	IP20, IP40
	Time Delay	0.2 → 20s
	Supply AC Voltage	230V ac
	Supply DC Voltage	24 V dc
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Height	90mm
	Length	59mm
	Standards/Approvals	CE, CCC
	Width	35mm
	Series	IL 9151

	เลือกทั้งหมด
	Brand Dold
	Product Type Monitoring Relay
	Contact Configuration 2 CO
	Mount Type DIN Rail
	Power Consumption 2VA
	Maximum Current Sensed 15mA
	Terminal Type Flat
	IP Rating IP20, IP40
	Time Delay 0.2 → 20s
	Supply AC Voltage 230V ac
	Supply DC Voltage 24 V dc
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Height 90mm
	Length 59mm
	Standards/Approvals CE, CCC
	Width 35mm
	Series IL 9151

Datasheet - IL9151

COO (Country of Origin):: DE

IL9151 - level relay with two separately operating changeovers

The IL9151 is used for

Level monitoring and control of conductive liquids and powders, e.g. maximum and minimum fill level, protection against overfilling and dry running

Monitoring and control of the mix ratio for conductive liquids

General resistance monitoring tasks, e.g. recording temperature limits with PTC

Contact protection relay with delay

Features

In accordance with IEC 255, VDE 0435 Section 303

3 electrode connections for 2-point or 1-point level control

The measuring circuit galvanically isolated from the mains is immune from high levels of interference

Max. lead length to the electrodes: 1500 m

Wide setting range of 4 → 450 kΩ, which enables differentiation between liquid and foam

Response and fallback delay: 0.2 → 20 s adjustable separately for MIN and MAX level

Programmable for: 2 separately controlled output relays for MIN and MAX level or jointly controlled output relays in 2-point hysteresis level control

Programmable for: Operating or rest current principle

Measuring circuit for electrodes works on AC voltage generated internally in the device (approx. 30 Hz); therefore no electrolysis occurrence in the fluid

LEDs to indicate operational readiness and contact position

2 output relays each with 1 changeover

35 mm overall width

Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.

Application Examples

Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:

Monitoring and control of liquid levels

Protection of pumps against dry running

Ability to detect liquid leaks in a system

Control of media mixing ratios

Control of liquid levels
