- RS Stock No.:
- 348-150
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FSST-110/230VAC
- ผู้ผลิต / Manufacturer:
- Tempatron
6 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB6,230.83
(exc. VAT)
THB6,666.99
(inc. VAT)
Units | Per unit |
1 + | THB6,230.83 |
- RS Stock No.:
- 348-150
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FSST-110/230VAC
- ผู้ผลิต / Manufacturer:
- Tempatron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
รายละเอียดสินค้า / Product Details

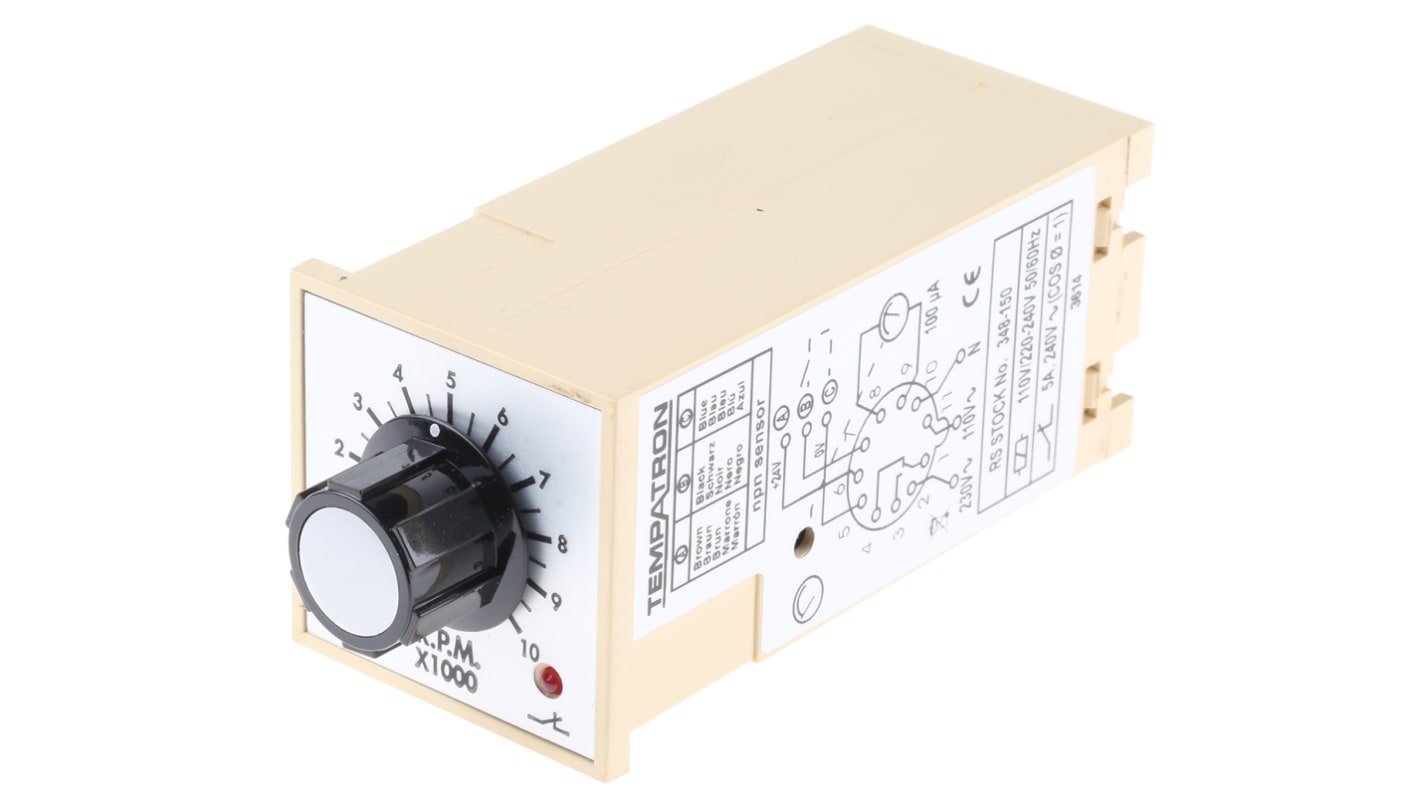

Tachometer Relay
DIN standard case, which may be front panel or chassis mounted (11-pin socket 403-869).
Monitors the speed of machinery via the inputs from RS inductive proximity switches, open collector transistor or relay contact type devices
On-board 24V dc supply for proximity device and an output suitable to drive a 100μA FSD moving coil meter for monitoring rpm of machinery
LED indication of relay status and supply
45mm x 45mm panel cut-out
SPCO output
On-board 24V dc supply for proximity device and an output suitable to drive a 100μA FSD moving coil meter for monitoring rpm of machinery
LED indication of relay status and supply
45mm x 45mm panel cut-out
SPCO output
Rotation Sensing
All units have standard panel cut out of 45 x 45mm and SPCO output
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Monitoring Application | Speed |
Contact Configuration | SPDT |
Mounting Type | DIN Rail |
Frequency Sensing Range | 50 → 60Hz |
Series | FSST |
Operating Temperature Range | +50°C |
Current Range | Maximum of 5A |
Length | 118mm |
Height | 48mm |
Dimensions | 118 x 48 x 48mm |
Maximum Operating Temperature | +50°C |
Width | 48mm |
Minimum Operating Temperature | -10°C |
Number of Poles | 1 |
