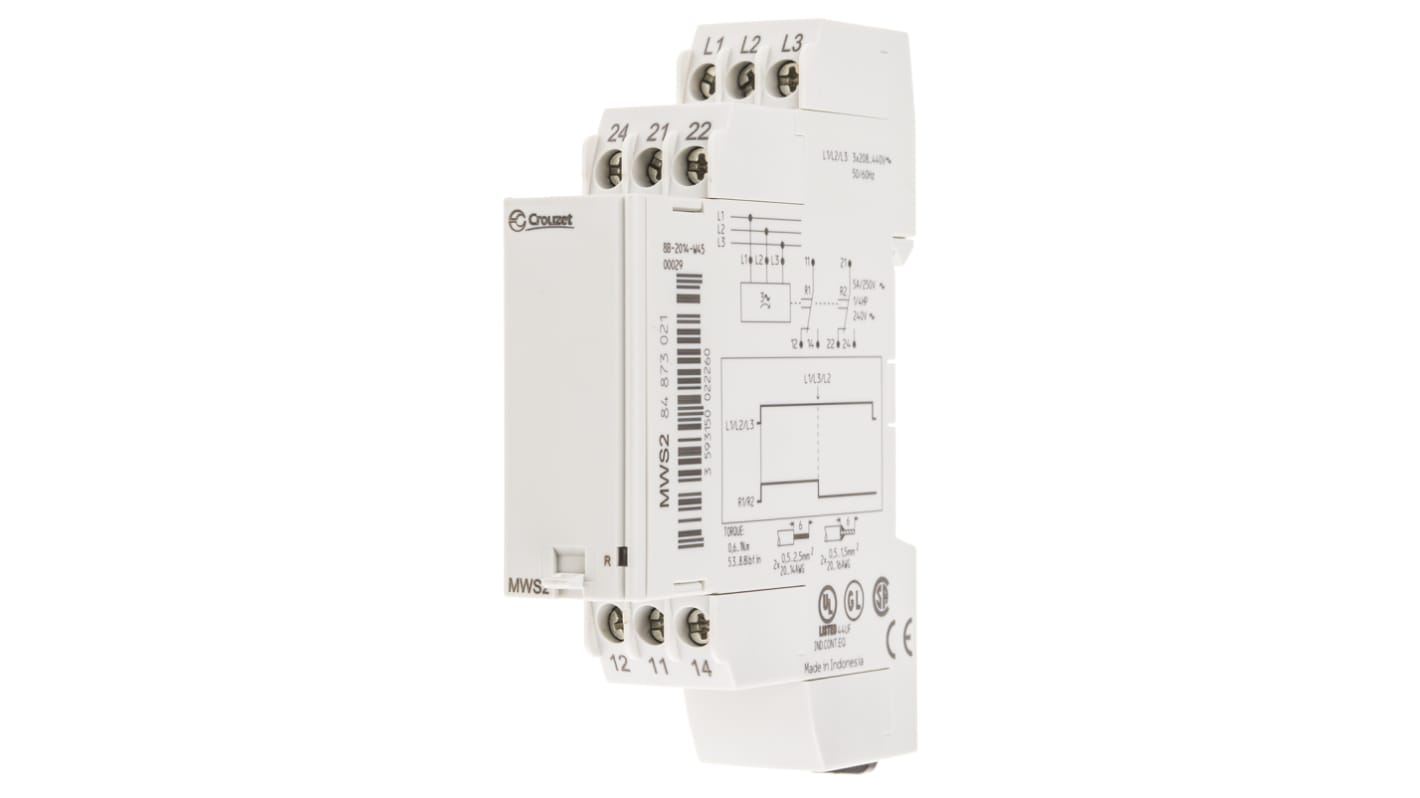

Crouzet Phase Monitoring Relay, 3 Phase, DPDT, DIN Rail
- RS Stock No.:
- 261-909
- Mfr. Part No.:
- 84873021
- Brand:
- Crouzet
Subtotal (1 unit)*
THB4,847.09
(exc. VAT)
THB5,186.39
(inc. VAT)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units | Per unit |
|---|---|
| 1 + | THB4,847.09 |
*price indicative
- RS Stock No.:
- 261-909
- Mfr. Part No.:
- 84873021
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Monitoring Application | Phase | |
| Electrical Phase | 3 | |
| Contact Configuration | DPDT | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Phase Failure, Phase Sequence | |
| Time Delay | 500ms | |
| Series | MWS2 | |
| Operating Temperature Range | +50°C | |
| Length | 69mm | |
| Minimum Operating Temperature | -20°C | |
| Height | 92.6mm | |
| Dimensions | 69 x 17.5 x 92.6mm | |
| Maximum Operating Temperature | +50°C | |
| Width | 17.5mm | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Monitoring Application Phase | ||
Electrical Phase 3 | ||
Contact Configuration DPDT | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Failure, Phase Sequence | ||
Time Delay 500ms | ||
Series MWS2 | ||
Operating Temperature Range +50°C | ||
Length 69mm | ||
Minimum Operating Temperature -20°C | ||
Height 92.6mm | ||
Dimensions 69 x 17.5 x 92.6mm | ||
Maximum Operating Temperature +50°C | ||
Width 17.5mm | ||
Single Function Phase Control Relay - C-Lynx
3 phase network control relay protects motors and equipment from expensive damage due to voltage faults on 3 phase systems. It monitors the sequence of phases L1, L2, L3 and failure of one or more phases. This 3 phrase control relay can be used in applications such as heating/air conditioning, water and air treatment, waste treatment, medical equipment and much more.
Multi voltage from 3 X 208 to 3 X 480 V ac
True RMS Measurement
LED status indication
Controls of its own power supply
True RMS Measurement
LED status indication
Controls of its own power supply
