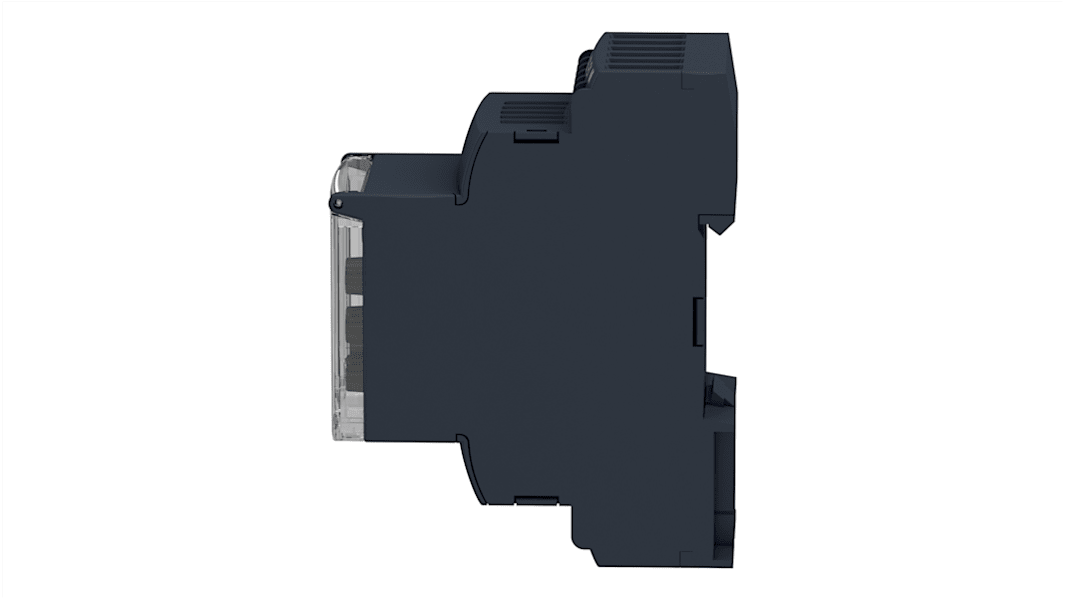

Schneider Electric Current Monitoring Relay, 1 Phase, DPDT, DIN Rail
- RS Stock No.:
- 146-200
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RM35JA31MW
- ผู้ผลิต:
- Schneider Electric
ยอดรวมย่อย (1 ชิ้น)*
THB7,130.15
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB7,629.26
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- 22 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB7,130.15 |
*ตัวบ่งบอกราคา / price indicative
Better World
กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม
- RS Stock No.:
- 146-200
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RM35JA31MW
- ผู้ผลิต:
- Schneider Electric
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| Monitoring Application | Current | |
| Electrical Phase | 1 | |
| Contact Configuration | DPDT | |
| Mounting Type | DIN Rail | |
| Minimum Current Sensed | 2mA | |
| Maximum Current Sensed | 500mA | |
| Current Sensitivity | Overcurrent, Undercurrent | |
| Time Delay | 0.3 → 30s | |
| Series | Harmony Control | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Dimensions | 72 x 35 x 90mm | |
| Width | 35mm | |
| Length | 72mm | |
| Terminal Type | Screw | |
| Height | 90mm | |
| Standards Met | CE, CSA, UL | |
| Operating Temperature Range | -20 → +50°C | |
| Special Features | IP20 Terminals | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | -20°C | |
| Current Range | 2 → 500mA | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
Monitoring Application Current | ||
Electrical Phase 1 | ||
Contact Configuration DPDT | ||
Mounting Type DIN Rail | ||
Minimum Current Sensed 2mA | ||
Maximum Current Sensed 500mA | ||
Current Sensitivity Overcurrent, Undercurrent | ||
Time Delay 0.3 → 30s | ||
Series Harmony Control | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Dimensions 72 x 35 x 90mm | ||
Width 35mm | ||
Length 72mm | ||
Terminal Type Screw | ||
Height 90mm | ||
Standards Met CE, CSA, UL | ||
Operating Temperature Range -20 → +50°C | ||
Special Features IP20 Terminals | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -20°C | ||
Current Range 2 → 500mA | ||
Schneider Electric Harmony Control Series Monitoring Relay, DPDT Contact Configuration, Current Monitoring Application - RM35JA31MW
Features & Benefits
• Operates within a current range of 2 to 500mA
• Dual-pole dual-throw (DPDT) contact configuration for application versatility
• Effective overcurrent and undercurrent detection
• Rated insulation voltage of 250V for improved safety
• Mechanical durability rated for 30 million cycles
Applications
• Monitoring critical machinery operations
• Integration into control panels and electrical installations
What is the maximum load current compatible with the device?
Does it require specific wiring for installation?
Can the relay be used in outdoor environments?
Is there a specific power supply voltage required?
How does the adjustable time delay enhance functionality?
