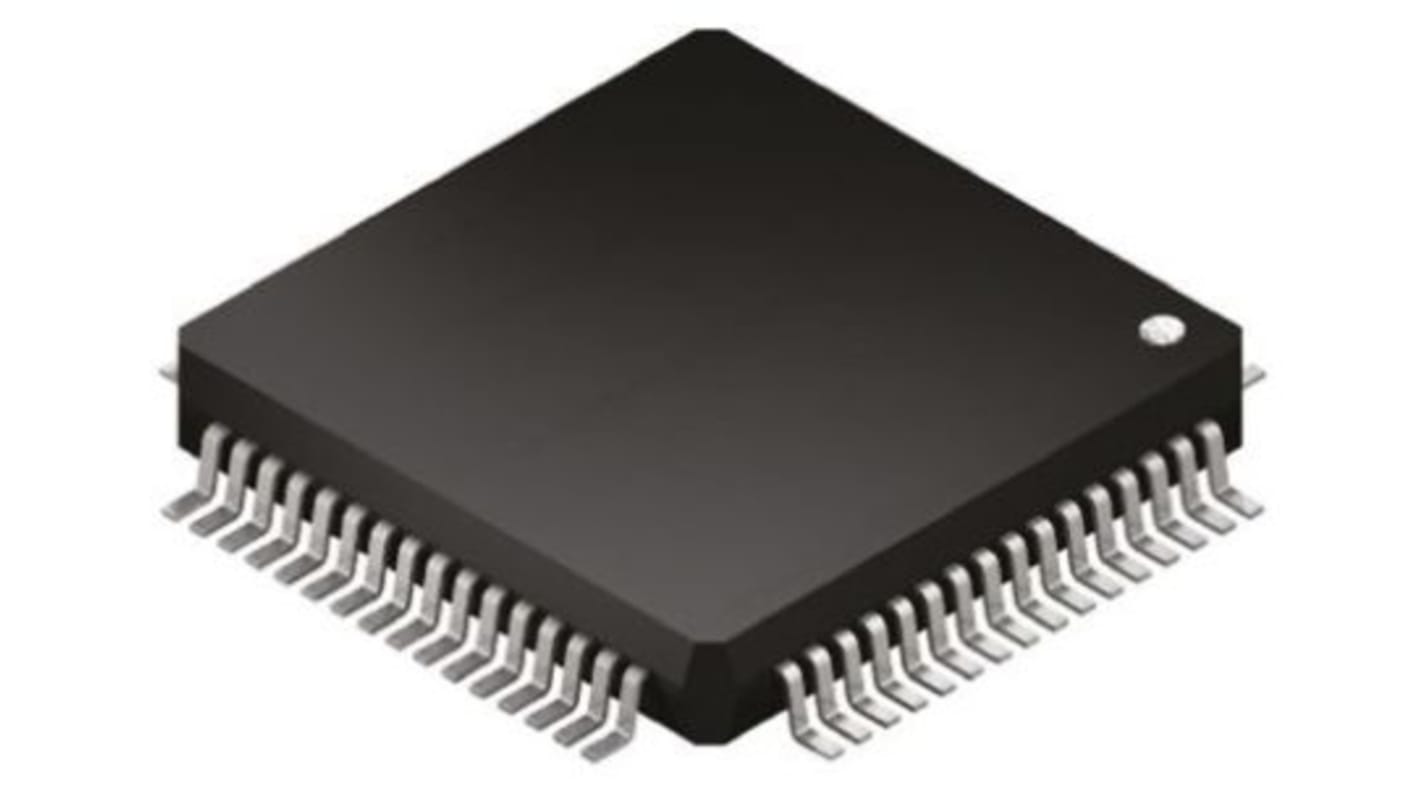

STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 1.024 MB Flash, 64-Pin LQFP

Brand

STMicroelectronics

Family Name

STM32F4

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

ARM Cortex M4

Data Bus Width

32bit

Program Memory Size

1.024 MB

Maximum Frequency

168MHz

RAM Size

196 kB

USB Channels

2 x Device, 2 x Host, 2 x OTG

Number of PWM Units

2 x 12 bit

Number of SPI Channels

3

Typical Operating Supply Voltage

3.6 V

Number of I2C Channels

3

Number of USART Channels

4

Number of UART Channels

2

Number of CAN Channels

2

Instruction Set Architecture

DSP

Maximum Number of Ethernet Channels

1

ADCs

24 x 12 bit

Length

10mm

Number of ADC Units

3

Height

1.45mm

Number of LIN Channels

1

Number of PCI Channels

0

Number of Ethernet Channels

1

Maximum Operating Temperature

+105 °C

Width

10mm

Dimensions

10 x 10 x 1.45mm

Pulse Width Modulation

2 (12 bit)

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C
