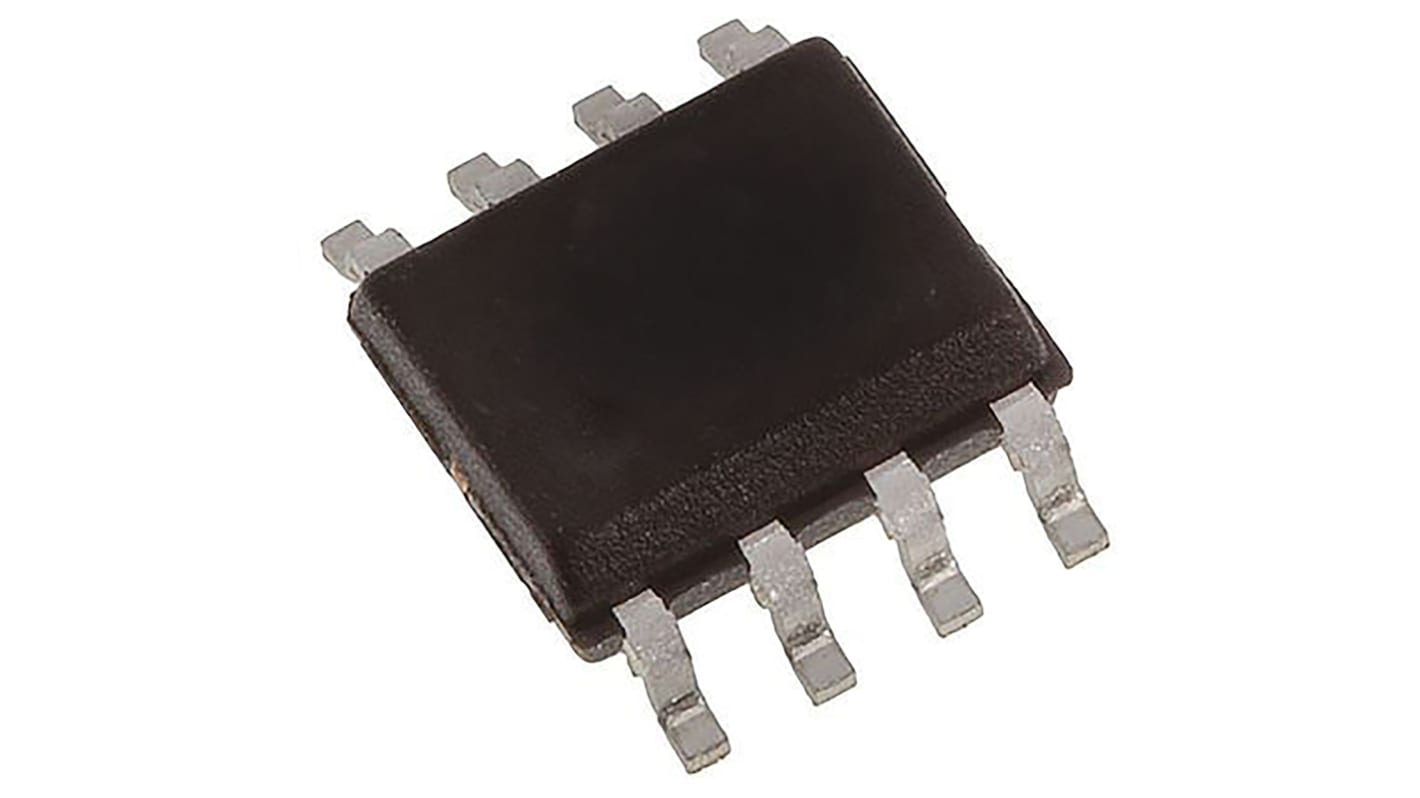

Microchip, 8bit PIC, PIC12F Microcontroller, 20MHz, 1K Flash, 8-Pin SOIC
- RS Stock No.:
- 889-5629
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC12F615-I/SN
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 หลอด หลอดละ 100 ชิ้น)*
THB3,790.80
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,056.20
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- 4,800 ชิ้นจะส่งได้หลังจากวันที่ 17 ตุลาคม 2568 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย | ต่อหลอด* |
---|---|---|
100 - 100 | TMB37.908 | TMB3,790.80 |
200 - 300 | TMB37.074 | TMB3,707.40 |
400 + | TMB36.278 | TMB3,627.80 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 889-5629
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC12F615-I/SN
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
---|---|---|
Brand | Microchip | |
Family Name | PIC12F | |
Package Type | SOIC | |
Mounting Type | Surface Mount | |
Pin Count | 8 | |
Device Core | PIC | |
Data Bus Width | 8bit | |
Program Memory Size | 1024 x 14 words | |
Maximum Frequency | 20MHz | |
RAM Size | 64 B | |
USB Channels | 0 | |
Number of PWM Units | 1 x 10 bit | |
Number of SPI Channels | 0 | |
Number of I2C Channels | 0 | |
Typical Operating Supply Voltage | 2 → 5.5 V | |
Number of UART Channels | 0 | |
Number of USART Channels | 0 | |
Number of CAN Channels | 0 | |
Maximum Number of Ethernet Channels | 0 | |
Minimum Operating Temperature | -40 °C | |
Number of PCI Channels | 0 | |
Pulse Width Modulation | 2 x 10 bit | |
Dimensions | 4.9 x 3.9 x 1.5mm | |
Instruction Set Architecture | RISC | |
Number of Ethernet Channels | 0 | |
Height | 1.5mm | |
Number of LIN Channels | 0 | |
Program Memory Type | Flash | |
Width | 3.9mm | |
Maximum Operating Temperature | +85 °C | |
Length | 4.9mm | |
ADCs | 4 x 10 bit | |
Number of ADC Units | 1 | |
เลือกทั้งหมด | ||
---|---|---|
Brand Microchip | ||
Family Name PIC12F | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 1024 x 14 words | ||
Maximum Frequency 20MHz | ||
RAM Size 64 B | ||
USB Channels 0 | ||
Number of PWM Units 1 x 10 bit | ||
Number of SPI Channels 0 | ||
Number of I2C Channels 0 | ||
Typical Operating Supply Voltage 2 → 5.5 V | ||
Number of UART Channels 0 | ||
Number of USART Channels 0 | ||
Number of CAN Channels 0 | ||
Maximum Number of Ethernet Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Number of PCI Channels 0 | ||
Pulse Width Modulation 2 x 10 bit | ||
Dimensions 4.9 x 3.9 x 1.5mm | ||
Instruction Set Architecture RISC | ||
Number of Ethernet Channels 0 | ||
Height 1.5mm | ||
Number of LIN Channels 0 | ||
Program Memory Type Flash | ||
Width 3.9mm | ||
Maximum Operating Temperature +85 °C | ||
Length 4.9mm | ||
ADCs 4 x 10 bit | ||
Number of ADC Units 1 | ||
PIC12F609/615/617 8-Bit Flash Microcontrollers
The PIC12F609/615/617 family of microcontrollers is based upon Microchip’s mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 3.5 Kbytes program memory with data memory up to 128 bytes RAM. On board is a configurable RC oscillator with ±1% accuracy.
Features
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable 4 MHz or 8 MHz
5 I/O Pins
1 Comparator
4 Channel 10-bit Analogue to Digital Converter (ADC) – PIC12F615/F617 only
One 8-bit Timer – PIC12F615/F617 Two 8-Bit Timers
One 16-bit Timer
In Circuit Serial Programming (ICSP)
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
