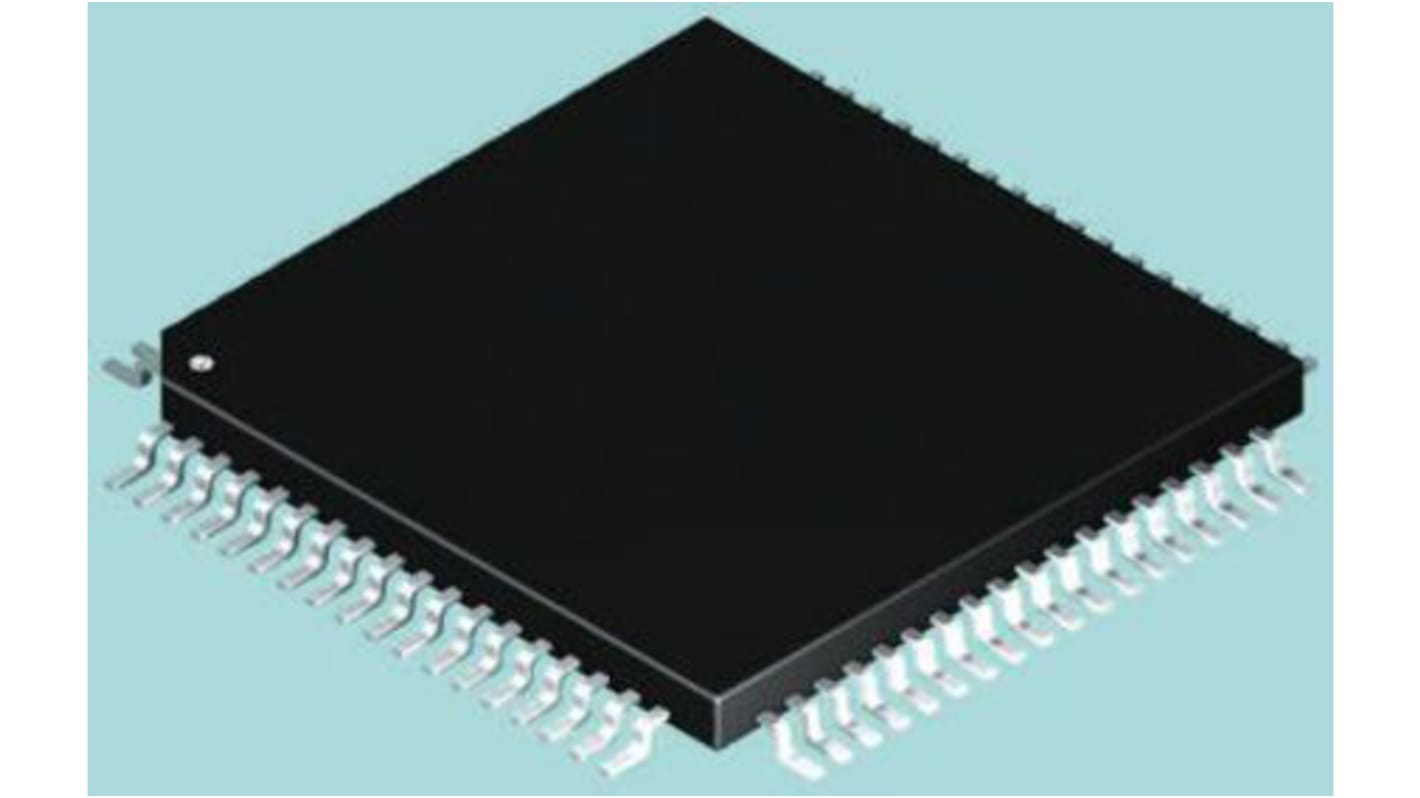

Microchip, 8bit PIC, PIC18F Microcontroller, 40MHz, 1.024 kB, 96 kB Flash, 80-Pin TQFP

RS Stock No.:: 887-7259
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC18F8627-I/PT
ผู้ผลิต / Manufacturer:: Microchip

Microchip, 8bit PIC, PIC18F Microcontroller, 40MHz, 1.024 kB, 96 kB Flash, 80-Pin TQFP

มีส่วนลดเมื่อซื้อจำนวนมาก

ราคา / Price Each (In a Tray of 119)**

THB523.184

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB559.807

(รวมภาษีมูลค่าเพิ่ม)

238 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)

เช็คสต็อกแบบเรียลไทม์ / Real time qty checker

ชิ้น	ต่อหน่วย	ต่อถาด**
119 - 119	THB523.184	THB62,258.896
238 - 357	THB511.674	THB60,889.206
476 +	THB500.687	THB59,581.753

**ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 887-7259
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC18F8627-I/PT
ผู้ผลิต / Manufacturer:: Microchip

PIC18F8527/8622/8627/8722 8-Bit Microcontrollers

The PIC18F Microcontrollers from Microchip are the most capable 8-bit devices within Microchip’s offer. Available within the range is CAN, LIN and Ethernet capability as part of a comprehensive range of peripherals to meet the needs of embedded applications and versions featuring XLP (Extreme Low-Power) Technology for where power consumption is a key consideration.

The Microchip PIC18F8527/8622/8627/8722 family of Microcontrollers are 8-bit devices based upon Microchip’s PIC18 architecture and includes XLP (eXtreme Low Power) technology.

Microcontroller Features

C Compiler Optimized Architecture
Self-Programmable under Software Control
Priority Levels for Interrupts
8 x 8 Single-Cycle Hardware Multiplier
In-Circuit Serial Programming™ (ICSP™) via Two Pins
In-Circuit Debug (ICD) via Two Pins
Wide Operating Voltage Range: 2.0V to 5.5V
Programmable Brown-out Reset (BOR) with Software Enable Option
Extended Watchdog Timer (WDT)
Flexible Oscillator Structure

Power Management Features

Run: CPU On, Peripherals On
Idle: CPU Off, Peripherals On
Sleep: CPU Off, Peripherals Off
Ultra Low 50 nA Input Leakage
Run mode Currents Down to 25 μA Typical
Idle mode Currents Down to 6.8 μA Typical
Sleep mode Current Down to 120 nA Typical
Timer1 Oscillator: 900 nA, 32 kHz, 2V
Watchdog Timer: 1.6 μA, 2V Typical
Two-Speed Oscillator Start-up

Peripheral Features

High-Current Sink/Source 25 mA/25 mA
Three Programmable External Interrupts
Four Input Change Interrupts
Three Enhanced Capture/Compare/PWM (ECCP) modules
Two Capture/Compare/PWM (CCP) modules
Master Synchronous Serial Port (MSSP) module - supports 3-Wire SPI (all 4 modes) and I2C™
Enhanced Addressable USART module block (no external crystal required)
10-Bit Analogue-to-Digital Converter – 12 or 16 channels depending on model
Dual Analogue Comparators with Input Multiplexing
Programmable 16-Level High/Low-Voltage Detection (HLVD) module

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Family Name	PIC18F
	Package Type	TQFP
	Mounting Type	Surface Mount
	Pin Count	80
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	1.024 kB, 96 kB
	Maximum Frequency	40MHz
	RAM Size	3.936 kB
	USB Channels	0
	Number of PWM Units	5
	Number of SPI Channels	2
	Typical Operating Supply Voltage	4.2 → 5.5 V
	Number of USART Channels	2
	Number of CAN Channels	0
	Number of I2C Channels	2
	Number of UART Channels	0
	Length	12mm
	Pulse Width Modulation	2 (CCP), 3 (ECCP)
	Dimensions	12 x 12 x 1.05mm
	Width	12mm
	ADCs	16 x 10 bit
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	1
	Height	1.05mm
	Minimum Operating Temperature	-40 °C
	Program Memory Type	Flash
	Instruction Set Architecture	RISC
	Number of PCI Channels	0
	Number of LIN Channels	0
	Number of Ethernet Channels	0
