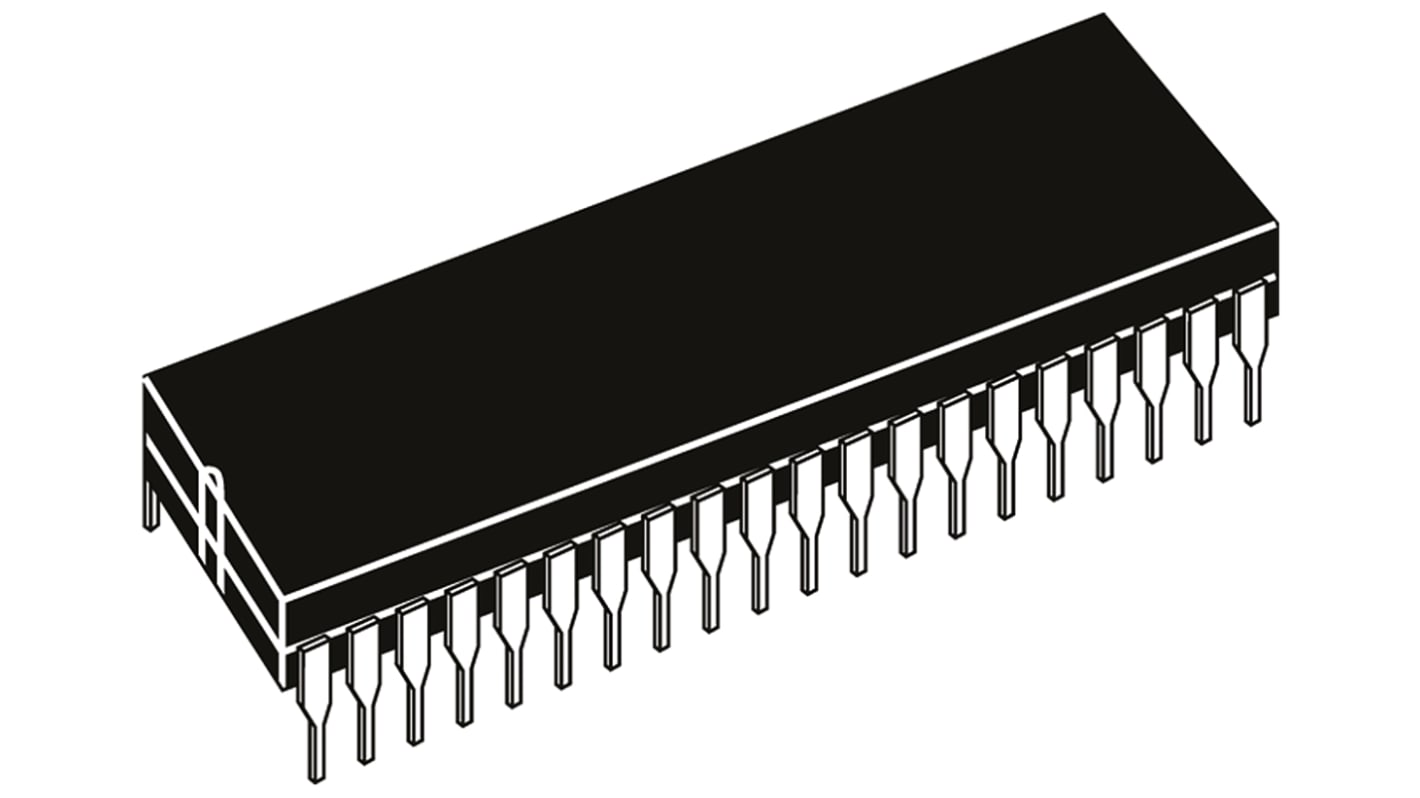

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 16384 words Flash, 40-Pin PDIP

The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F1713/1716/1717/1718/1719 family of microcontrollers is based upon Microchip’s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, up to 28 Kbytes program memory and RAM up to 2048 bytes. On board is a configurable oscillator with ±1% accuracy.

32 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
16 MHz Internal Oscillator – Selectable Frequency Range 0 to 32 MHz
17 to 36 I/O Pins – Depending on Model
XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Programmable Low Power Brown-Out Reset (LPBOR)
Extended Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

17 to 25 Channel (Model Dependant) 10-bit Analogue to Digital Converter (ADC)
Two Digital to Analogue Converters (DAC)
Two Capture/Compare/PWM (CCP) Modules
Two PWM Modules
Peripheral Pin Select (PPS)
Two Operational Amplifiers
Two Comparators
Four 8-bit Timers
One 16-bit Timer
Master Synchronous Serial Port (MSSP) with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
Four Configurable Logic Cell (CLC) Modules
Complimentary Output Generator (COG)
Zero-Cross Detector (ZCD)
Numerically Controlled Oscillator (NCO)
Voltage Reference Module
