Silicon Labs, 8bit 8051, C8051F Microcontroller, 50MHz, 32 kB Flash, 24-Pin QFN
- RS Stock No.:
- 819-6777
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- C8051F551-IM
- ผู้ผลิต:
- Silicon Labs

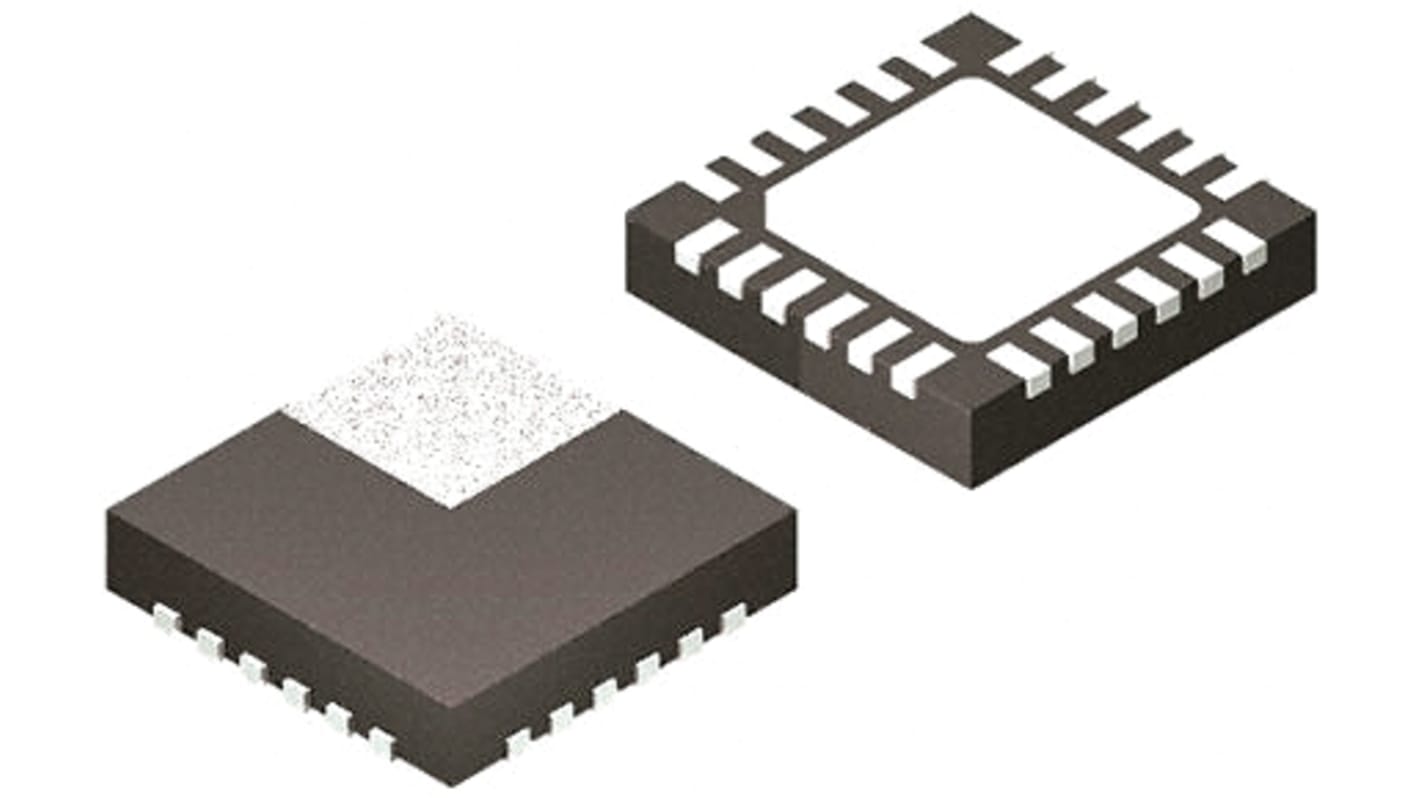

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
- RS Stock No.:
- 819-6777
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- C8051F551-IM
- ผู้ผลิต:
- Silicon Labs
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Silicon Labs | |
| Family Name | C8051F | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 24 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 32 kB | |
| Maximum Frequency | 50MHz | |
| RAM Size | 2.304 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 1 | |
| Typical Operating Supply Voltage | 1.8 → 5.25 V | |
| Number of USART Channels | 0 | |
| Number of I2C Channels | 1 | |
| Number of CAN Channels | 1 | |
| Number of UART Channels | 1 | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 0 | |
| Height | 0.75mm | |
| Minimum Operating Temperature | -40 °C | |
| Width | 4mm | |
| Instruction Set Architecture | MCU | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Number of Ethernet Channels | 0 | |
| Dimensions | 4 x 4 x 0.75mm | |
| ADCs | 18 x 12 bit | |
| Length | 4mm | |
| Pulse Width Modulation | 1 (6 x 16 bit) | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Number of ADC Units | 1 | |
