NXP, 16bit S12, HCS12 Microcontroller, 32MHz, 64 kB Flash, 64-Pin LQFP
- RS Stock No.:
- 800-7428P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MC9S12P64CLH
- ผู้ผลิต:
- NXP

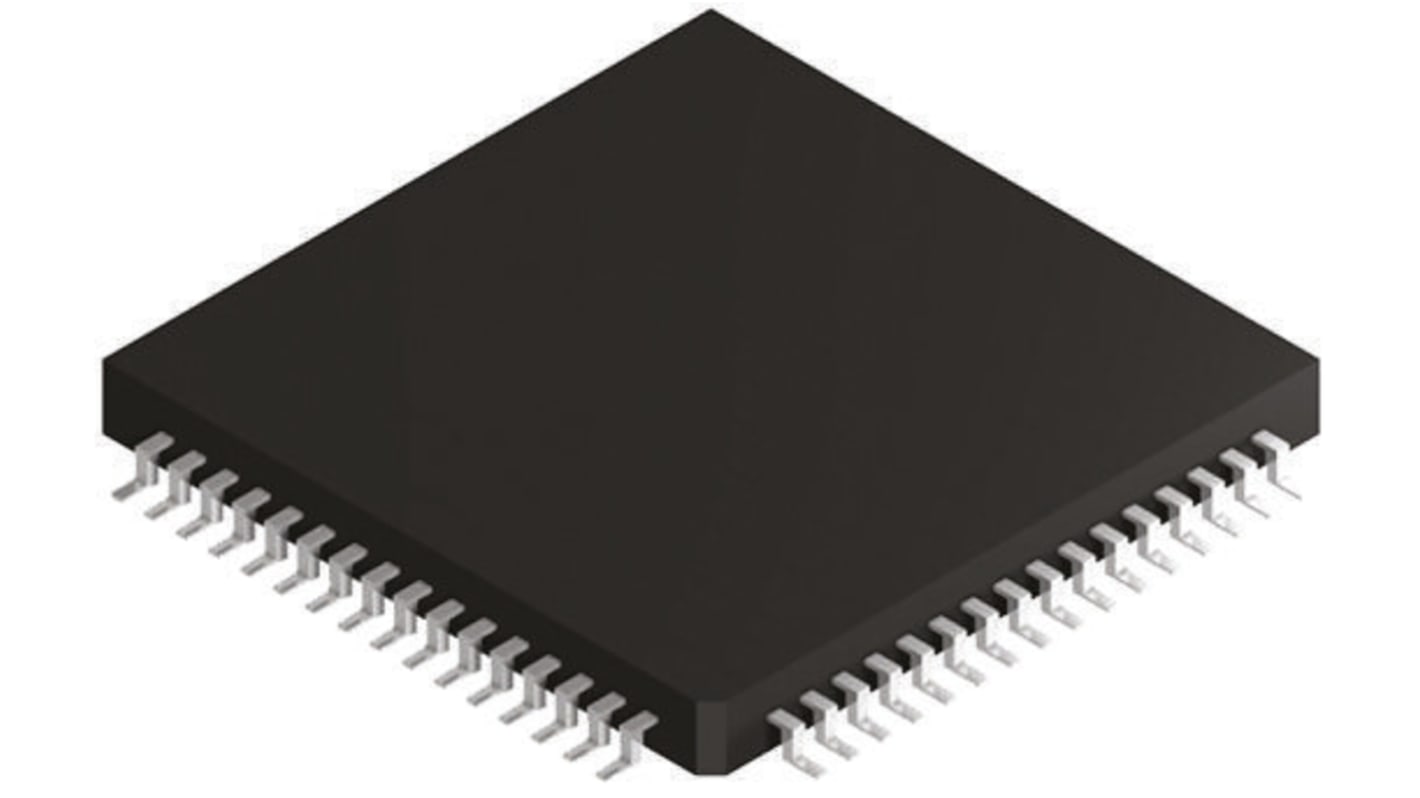

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
- RS Stock No.:
- 800-7428P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MC9S12P64CLH
- ผู้ผลิต:
- NXP
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | NXP | |
| Family Name | HCS12 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | S12 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 64 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 4 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 1 | |
| Typical Operating Supply Voltage | 3.15 → 5.5 V | |
| Number of USART Channels | 0 | |
| Number of UART Channels | 0 | |
| Number of CAN Channels | 1 | |
| Number of I2C Channels | 0 | |
| Number of PCI Channels | 0 | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | MCU | |
| Maximum Number of Ethernet Channels | 0 | |
| ADCs | 1 (10 x 12 bit) | |
| Length | 10mm | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +105 °C | |
| Pulse Width Modulation | 1 (6 x 8 bit) | |
| Dimensions | 10 x 10 x 1.45mm | |
| Width | 10mm | |
| Height | 1.45mm | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand NXP | ||
Family Name HCS12 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core S12 | ||
Data Bus Width 16bit | ||
Program Memory Size 64 kB | ||
Maximum Frequency 32MHz | ||
RAM Size 4 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 1 | ||
Typical Operating Supply Voltage 3.15 → 5.5 V | ||
Number of USART Channels 0 | ||
Number of UART Channels 0 | ||
Number of CAN Channels 1 | ||
Number of I2C Channels 0 | ||
Number of PCI Channels 0 | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture MCU | ||
Maximum Number of Ethernet Channels 0 | ||
ADCs 1 (10 x 12 bit) | ||
Length 10mm | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +105 °C | ||
Pulse Width Modulation 1 (6 x 8 bit) | ||
Dimensions 10 x 10 x 1.45mm | ||
Width 10mm | ||
Height 1.45mm | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 0 | ||
