- RS Stock No.:
- 623-0106
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC12F509-I/SN
- ผู้ผลิต / Manufacturer:
- Microchip
1725 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB34.85
(exc. VAT)
THB37.29
(inc. VAT)
Units | Per unit |
1 - 24 | THB34.85 |
25 - 49 | THB33.97 |
50 + | THB33.45 |
- RS Stock No.:
- 623-0106
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC12F509-I/SN
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

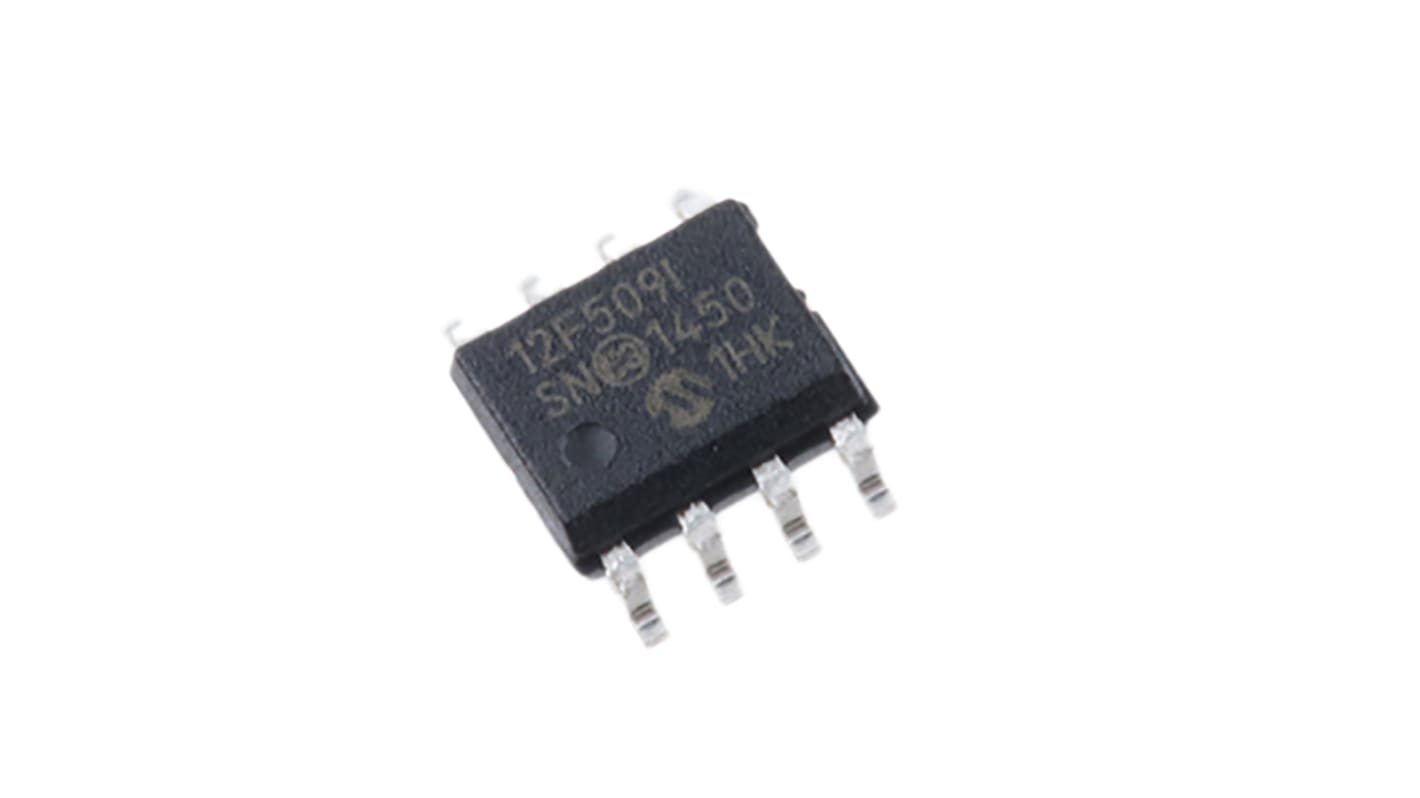

PIC12F508/509 8-Bit Flash Microcontrollers
Microchips PIC12 Microcontrollers (MCUs) were the worlds first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added.
The PIC12F508/509 family of microcontrollers is based upon Microchips baseline core with a 2 level hardware stack and 33 instructions. These MCUs provide up to 1 MIPS, up to 1.5 Kbytes program memory with data memory of up to 41 bytes SRAM. On board is a RC oscillator with ±1% accuracy.
The PIC12F508/509 family of microcontrollers is based upon Microchips baseline core with a 2 level hardware stack and 33 instructions. These MCUs provide up to 1 MIPS, up to 1.5 Kbytes program memory with data memory of up to 41 bytes SRAM. On board is a RC oscillator with ±1% accuracy.
Features
33 Instructions
2 Level Hardware Stack
4 MHz Internal Oscillator
6 I/O Pins
One 8-bit Timer
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debugging (ICD)
2 Level Hardware Stack
4 MHz Internal Oscillator
6 I/O Pins
One 8-bit Timer
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debugging (ICD)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Microchip PIC12F 8-bit PIC® Microcontrollers
Microchips PIC12F Microcontrollers (MCUs) were the worlds first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as Microchip adds extra features, further improves specifications and continues to offer ever greater value. Key to the success of the PIC12F was the internal RC oscillator that allowed six I/O channels in an 8-pin package. Later versions of this RC oscillator are configurable between 31kHz and 32MHz.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | PIC12F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 1024 x 12 words |
Maximum Frequency | 4MHz |
RAM Size | 41 B |
USB Channels | 0 |
Number of SPI Channels | 0 |
Number of USART Channels | 0 |
Number of I2C Channels | 0 |
Number of UART Channels | 0 |
Number of CAN Channels | 0 |
Typical Operating Supply Voltage | 2 → 5.5 V |
Number of LIN Channels | 0 |
Number of PCI Channels | 0 |
Minimum Operating Temperature | -40 °C |
Width | 3.9mm |
Length | 4.9mm |
Number of Ethernet Channels | 0 |
Program Memory Type | Flash |
Height | 1.5mm |
Dimensions | 4.9 x 3.9 x 1.5mm |
Instruction Set Architecture | RISC |
Maximum Operating Temperature | +85 °C |
