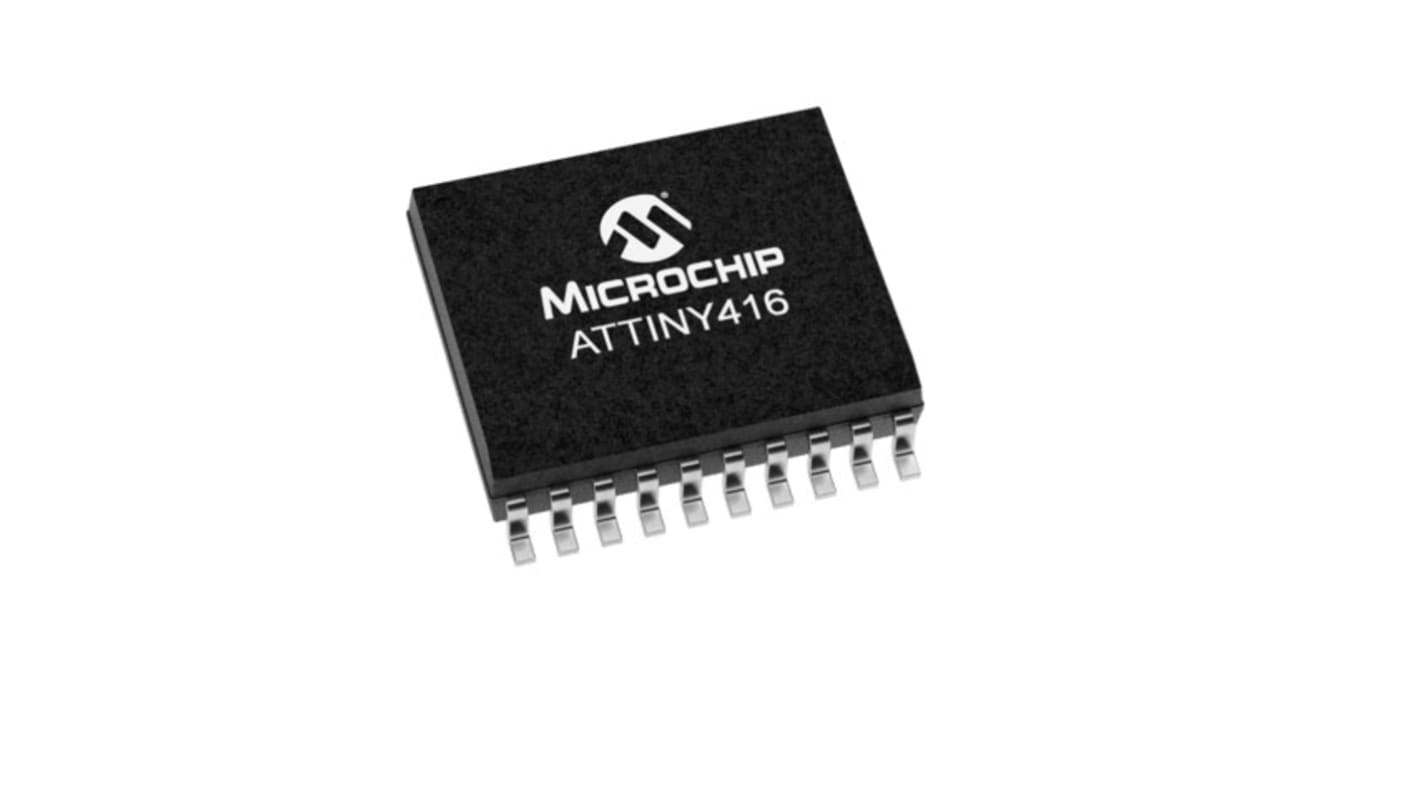

Microchip, 8bit AVR, ATtiny416 Microcontroller, 20MHz, 4 kB Flash, 20-Pin SOIC

RS Stock No.:: 193-6235
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: ATTINY416-SN
ผู้ผลิต:: Microchip

Microchip, 8bit AVR, ATtiny416 Microcontroller, 20MHz, 4 kB Flash, 20-Pin SOIC

ไม่พร้อมจำหน่ายในตอนนี้

เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้

RS Stock No.:: 193-6235
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: ATTINY416-SN
ผู้ผลิต:: Microchip

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Family Name	ATtiny416
	Package Type	SOIC
	Mounting Type	Surface Mount
	Pin Count	20
	Device Core	AVR
	Data Bus Width	8bit
	Program Memory Size	4 kB
	Maximum Frequency	20MHz
	RAM Size	256 B
	USB Channels	0
	Number of PWM Units	1
	Number of SPI Channels	1
	Number of UART Channels	1
	Typical Operating Supply Voltage	1.8 → 5.5 V
	Number of USART Channels	0
	Number of CAN Channels	0
	Number of I2C Channels	1
	Maximum Operating Temperature	+105 °C
	ADCs	12 x 10 bit
	Length	13mm
	Number of ADC Units	1
	Maximum Number of Ethernet Channels	0
	Minimum Operating Temperature	-40 °C
	Instruction Set Architecture	RISC
	Pulse Width Modulation	1 (2 Channel)
	Dimensions	13 x 7.6 x 2.35mm
	Width	7.6mm
	Height	2.35mm
	Number of LIN Channels	0
	Number of Ethernet Channels	0
	Number of PCI Channels	0
	Program Memory Type	Flash

	เลือกทั้งหมด
	Brand Microchip
	Family Name ATtiny416
	Package Type SOIC
	Mounting Type Surface Mount
	Pin Count 20
	Device Core AVR
	Data Bus Width 8bit
	Program Memory Size 4 kB
	Maximum Frequency 20MHz
	RAM Size 256 B
	USB Channels 0
	Number of PWM Units 1
	Number of SPI Channels 1
	Number of UART Channels 1
	Typical Operating Supply Voltage 1.8 → 5.5 V
	Number of USART Channels 0
	Number of CAN Channels 0
	Number of I2C Channels 1
	Maximum Operating Temperature +105 °C
	ADCs 12 x 10 bit
	Length 13mm
	Number of ADC Units 1
	Maximum Number of Ethernet Channels 0
	Minimum Operating Temperature -40 °C
	Instruction Set Architecture RISC
	Pulse Width Modulation 1 (2 Channel)
	Dimensions 13 x 7.6 x 2.35mm
	Width 7.6mm
	Height 2.35mm
	Number of LIN Channels 0
	Number of Ethernet Channels 0
	Number of PCI Channels 0
	Program Memory Type Flash

Datasheet ATTINY416-SN

The ATtiny416 is a microcontroller using the 8-bit AVR® processor with hardware multiplier, running at up to 20MHz and 4KB Flash, 256B SRAM and 128 bytes of EEPROM in a 24-pin package. The series uses the latest technologies from Microchip with a flexible and low power architecture including Event System and SleepWalking, accurate analog features and advanced peripherals.

135 instructions
Hardware multiplier
Ultra Low Power (ULP)
Idle
Standby
Power Down
6 Channels Event System
Configurable Custom Logic (CCL)
12 Channel 10-bit ADC with Voltage Reference
8-bit Digital to Analog Converter (DAC)
Comparators
1x 12-bit Timers (TCD)
2x 16-bit Timer (TCA / TCB)
Cyclical Redundancy Check (CRC/SCAN)
Watchdog Timer (WDT)
Power-On Reset (POR)
Brown-Out Detection (BOD)
Single pin programming and debugging interface (UPDI)
Operation Voltage: 1.8V – 5.5V

Microchip, 8bit AVR, ATtiny416 Microcontroller, 20MHz, 4 kB Flash, 20-Pin SOIC
