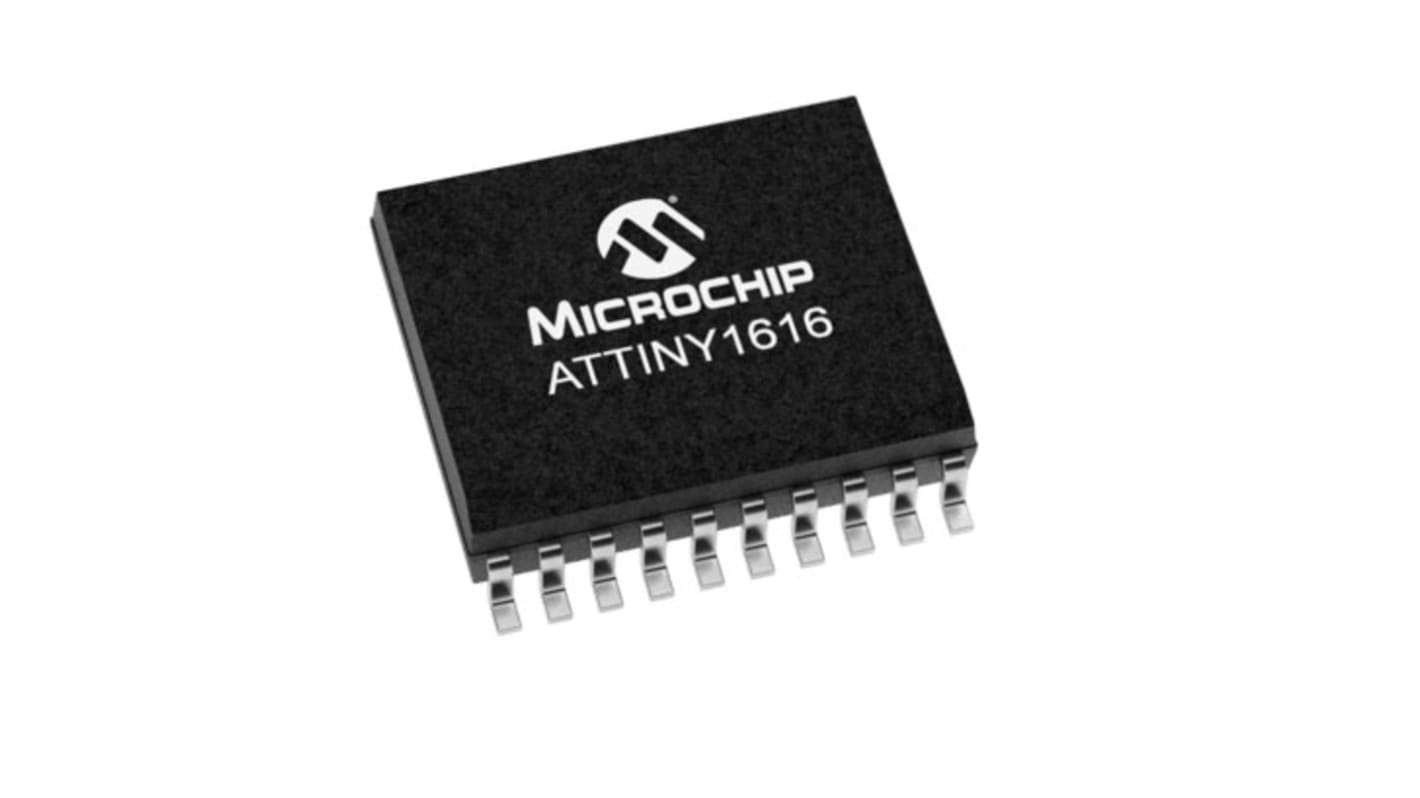

Microchip, 8bit AVR, ATtiny1616 Microcontroller, 20MHz, 16 kB Flash, 20-Pin SOIC
- RS Stock No.:
- 193-6206
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY1616-SF
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 หลอด หลอดละ 38 ชิ้น)*
THB1,819.326
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,946.664
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- เพิ่มอีก 304 ชิ้นจะส่งได้หลังจากวันที่ 08 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
- 2,432 ชิ้นสุดท้ายส่งจากวันที่ 15 ธันวาคม 2568
ชิ้น | ต่อหน่วย | ต่อหลอด* |
|---|---|---|
| 38 - 38 | THB47.877 | THB1,819.33 |
| 76 - 114 | THB46.823 | THB1,779.27 |
| 152 + | THB45.817 | THB1,741.05 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 193-6206
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY1616-SF
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATtiny1616 | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 20 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 2.048 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 1 | |
| Number of I2C Channels | 1 | |
| Number of USART Channels | 1 | |
| Typical Operating Supply Voltage | 2.7 → 5.5 V | |
| Number of UART Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of ADC Units | 1 | |
| Length | 13mm | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | RISC | |
| ADCs | 16 x 10 bit | |
| Pulse Width Modulation | 1 (6 x 16 bit) | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 1 | |
| Number of Ethernet Channels | 0 | |
| Number of LIN Channels | 0 | |
| Height | 2.35mm | |
| Dimensions | 13 x 7.6 x 2.35mm | |
| Width | 7.6mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name ATtiny1616 | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 20 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 2.048 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 x 16 bit | ||
Number of SPI Channels 1 | ||
Number of I2C Channels 1 | ||
Number of USART Channels 1 | ||
Typical Operating Supply Voltage 2.7 → 5.5 V | ||
Number of UART Channels 1 | ||
Number of CAN Channels 0 | ||
Number of ADC Units 1 | ||
Length 13mm | ||
Maximum Operating Temperature +125 °C | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture RISC | ||
ADCs 16 x 10 bit | ||
Pulse Width Modulation 1 (6 x 16 bit) | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash | ||
Number of PCI Channels 1 | ||
Number of Ethernet Channels 0 | ||
Number of LIN Channels 0 | ||
Height 2.35mm | ||
Dimensions 13 x 7.6 x 2.35mm | ||
Width 7.6mm | ||
Three sleep modes:
Idle
Standby
Power Down
Event System
Watchdog Timer (WDT)
Power-On Reset (POR)
Brown-Out Detection (BOD)
Single pin programming and debugging interface (UPDI)
12 Channel 10-bit ADC with Voltage Reference
Peripheral Touch Controller (PTC)
8-bit Digital to Analog Converter (DAC)
Comparators
Configurable Custom Logic (CCL)
1x 12-bit Timers (TCD)
2x 16-bit Timer (TCA / TCB)
Cyclical Redundancy Check (CRC/SCAN)
12 channels self-capacitance
36 mutual-capacitance buttons supported
SPI / I2C / USART
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
