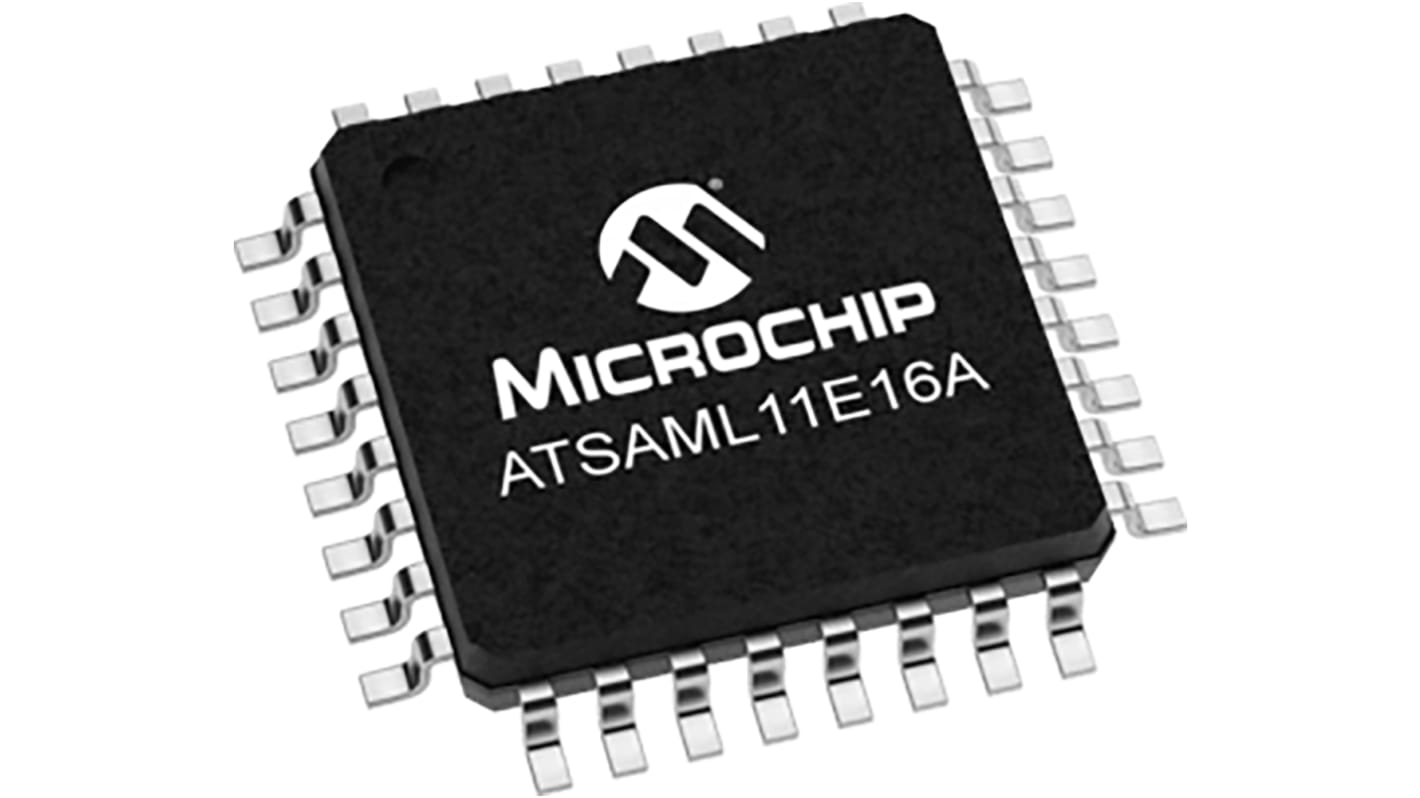

Microchip, 32bit ARM Cortex M23, SAM L11 Microcontroller, 32kHz, 64 kB Flash, 32-Pin TQFP
- RS Stock No.:
- 190-4957
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAML11E16A-AFKPH
- ผู้ผลิต:
- Microchip
- RS Stock No.:
- 190-4957
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAML11E16A-AFKPH
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | SAM L11 | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 32 | |
| Device Core | ARM Cortex M23 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 64 kB | |
| Maximum Frequency | 32kHz | |
| RAM Size | 16 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 3 | |
| Number of I2C Channels | 2 | |
| Number of UART Channels | 0 | |
| Typical Operating Supply Voltage | 1.62 → 3.63 V | |
| Number of USART Channels | 1 | |
| Number of CAN Channels | 0 | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Number of Ethernet Channels | 0 | |
| ADCs | 10 x 12 bit | |
| Number of ADC Units | 1 | |
| Instruction Set Architecture | MCU | |
| Automotive Standard | AEC-Q100 | |
| Length | 7.1mm | |
| Number of LIN Channels | 1 | |
| Minimum Operating Temperature | -40 °C | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Height | 1.05mm | |
| Width | 7.1mm | |
| Dimensions | 7.1 x 7.1 x 1.05mm | |
| Pulse Width Modulation | 1 (2 Channel) | |
| Program Memory Type | Flash | |
เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name SAM L11 | ||
Package Type TQFP | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Device Core ARM Cortex M23 | ||
Data Bus Width 32bit | ||
Program Memory Size 64 kB | ||
Maximum Frequency 32kHz | ||
RAM Size 16 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 3 | ||
Number of I2C Channels 2 | ||
Number of UART Channels 0 | ||
Typical Operating Supply Voltage 1.62 → 3.63 V | ||
Number of USART Channels 1 | ||
Number of CAN Channels 0 | ||
Maximum Operating Temperature +125 °C | ||
Maximum Number of Ethernet Channels 0 | ||
ADCs 10 x 12 bit | ||
Number of ADC Units 1 | ||
Instruction Set Architecture MCU | ||
Automotive Standard AEC-Q100 | ||
Length 7.1mm | ||
Number of LIN Channels 1 | ||
Minimum Operating Temperature -40 °C | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
Height 1.05mm | ||
Width 7.1mm | ||
Dimensions 7.1 x 7.1 x 1.05mm | ||
Pulse Width Modulation 1 (2 Channel) | ||
Program Memory Type Flash | ||
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
