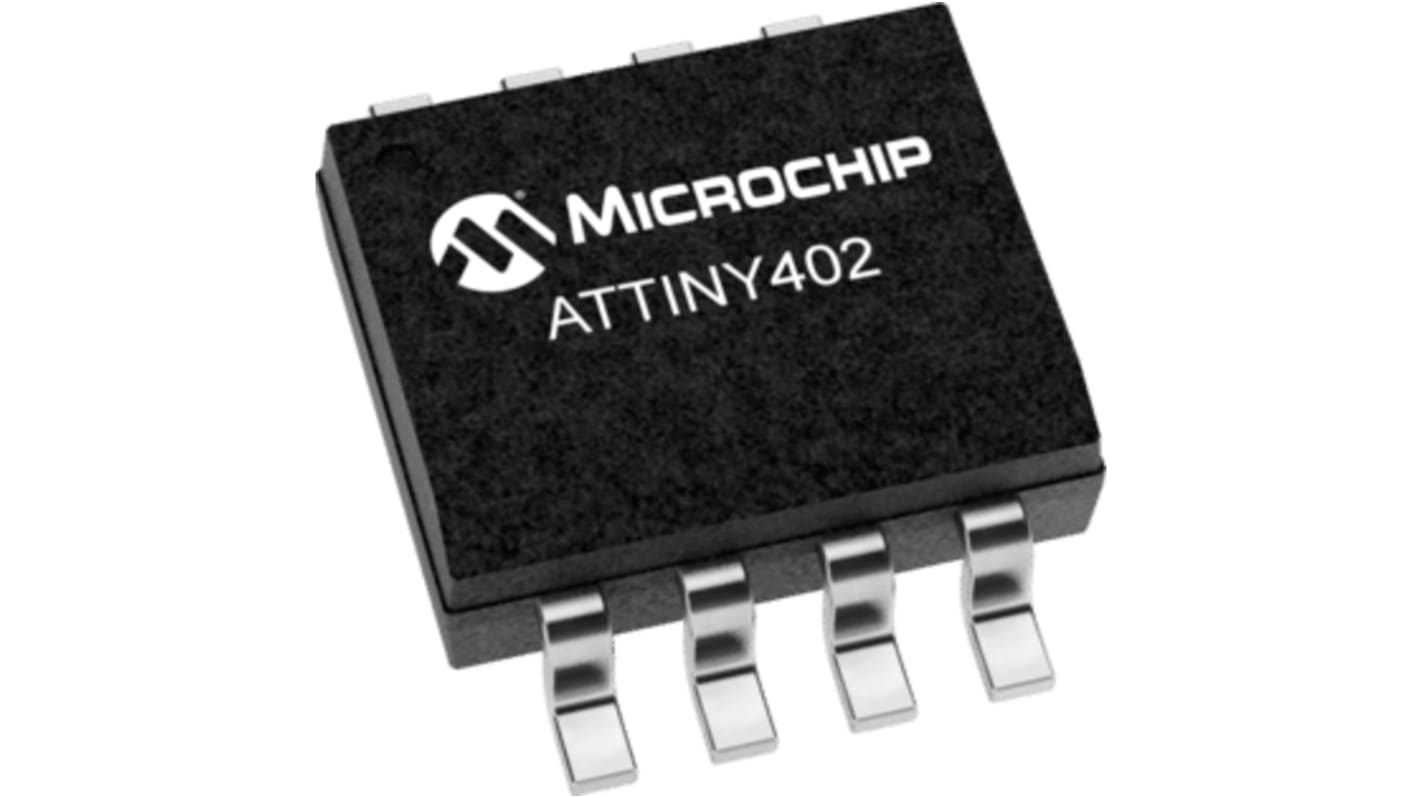

Microchip, 8bit AVR, ATtiny402 Microcontroller, 20MHz, 4 kB Flash, 8-Pin SOIC
- RS Stock No.:
- 187-1559
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY402-SSNR
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 รีล รีลละ 4000 ชิ้น)*
THB72,808.00
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB77,904.00
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- จะส่งได้หลังจากวันที่ 14 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย | ต่อม้วน* |
|---|---|---|
| 4000 - 4000 | THB18.202 | THB72,808.00 |
| 8000 - 12000 | THB17.802 | THB71,208.00 |
| 16000 + | THB17.419 | THB69,676.00 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 187-1559
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY402-SSNR
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATtiny402 | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 4 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 256 B | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 1 | |
| Number of USART Channels | 1 | |
| Number of UART Channels | 1 | |
| Number of I2C Channels | 1 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Number of CAN Channels | 0 | |
| Maximum Operating Temperature | +105 °C | |
| Number of Ethernet Channels | 0 | |
| Number of ADC Units | 1 | |
| Length | 5.05mm | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of LIN Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Number of PCI Channels | 0 | |
| Instruction Set Architecture | RISC | |
| Program Memory Type | Flash | |
| ADCs | 6 x 10 bit | |
| Width | 3.99mm | |
| Pulse Width Modulation | 1 (2 Channel) | |
| Dimensions | 5.05 x 3.99 x 1.5mm | |
| Height | 1.5mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name ATtiny402 | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 4 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 256 B | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 1 | ||
Number of USART Channels 1 | ||
Number of UART Channels 1 | ||
Number of I2C Channels 1 | ||
Typical Operating Supply Voltage 1.8 → 5.5 V | ||
Number of CAN Channels 0 | ||
Maximum Operating Temperature +105 °C | ||
Number of Ethernet Channels 0 | ||
Number of ADC Units 1 | ||
Length 5.05mm | ||
Maximum Number of Ethernet Channels 0 | ||
Number of LIN Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Number of PCI Channels 0 | ||
Instruction Set Architecture RISC | ||
Program Memory Type Flash | ||
ADCs 6 x 10 bit | ||
Width 3.99mm | ||
Pulse Width Modulation 1 (2 Channel) | ||
Dimensions 5.05 x 3.99 x 1.5mm | ||
Height 1.5mm | ||
135 instructions
Hardware multiplier
Ultra Low Power (ULP)
Three sleep modes:
Idle
Standby
Power Down
6 Channels Event System
Configurable Custom Logic (CCL)
12 Channel 10-bit ADC with Voltage Reference
Comparators
2x 16-bit Timer (TCA / TCB)
Cyclical Redundancy Check (CRC/SCAN)
Watchdog Timer (WDT)
Power-On Reset (POR)
Brown-Out Detection (BOD)
Single pin programming and debugging interface (UPDI)
Operation Voltage: 1.8V – 5.5V
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
