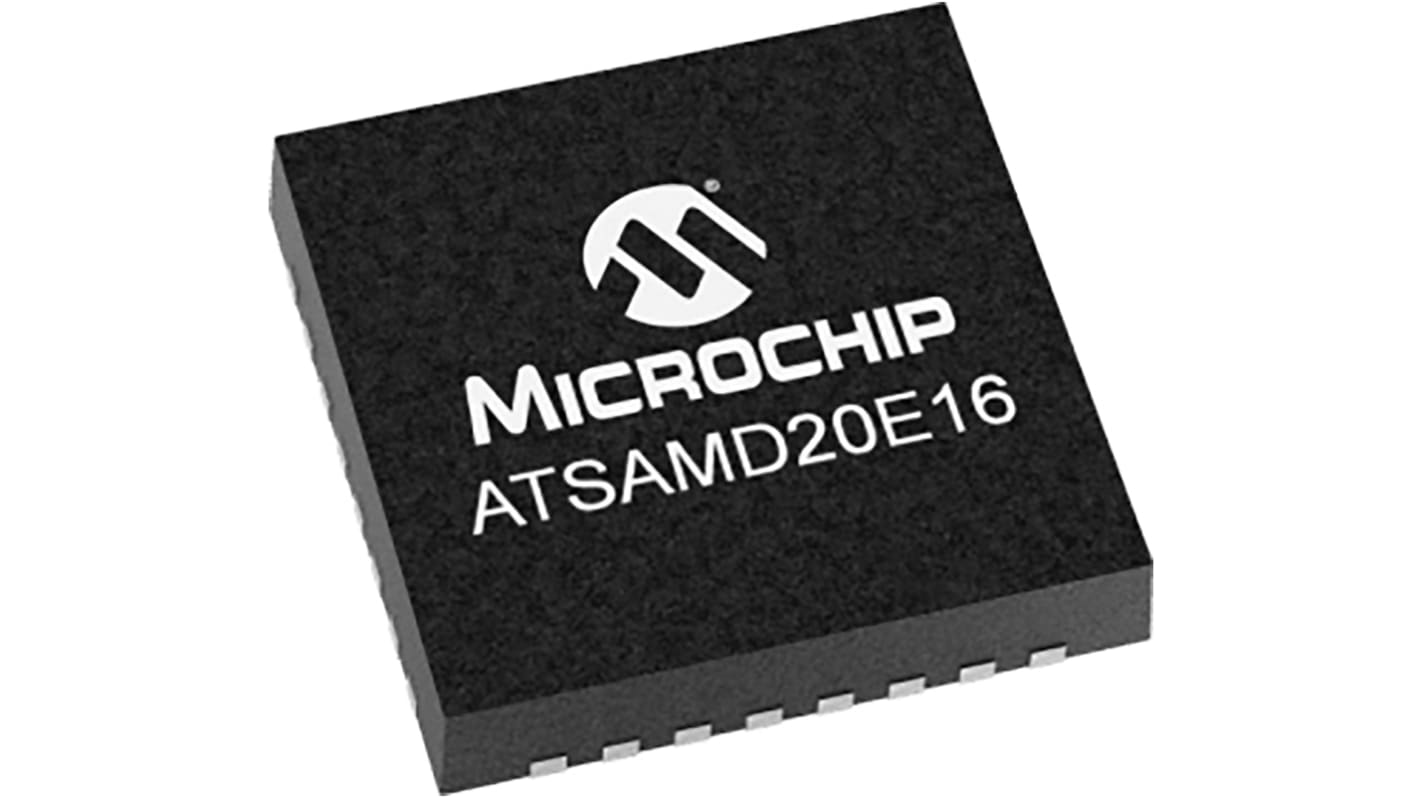

Microchip, 32bit ARM Cortex M0+, ATSAMD Microcontroller, 48MHz, 64 kB Flash, 32-Pin QFN
- RS Stock No.:
- 177-3697
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAMD20E16A-MU
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*
THB462.10
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB494.45
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- 635 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
---|---|---|
5 - 120 | TMB92.42 | TMB462.10 |
125 - 240 | TMB90.11 | TMB450.55 |
245 + | TMB88.724 | TMB443.62 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 177-3697
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAMD20E16A-MU
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
---|---|---|
Brand | Microchip | |
Family Name | ATSAMD | |
Package Type | QFN | |
Mounting Type | Surface Mount | |
Pin Count | 32 | |
Device Core | ARM Cortex M0+ | |
Data Bus Width | 32bit | |
Program Memory Size | 64 kB | |
Maximum Frequency | 48MHz | |
RAM Size | 8 kB | |
USB Channels | 0 | |
Number of PWM Units | 1 | |
Number of SPI Channels | 4 | |
Number of CAN Channels | 0 | |
Number of UART Channels | 6 | |
Number of USART Channels | 6 | |
Number of I2C Channels | 4 | |
Typical Operating Supply Voltage | 3.3 V | |
Automotive Standard | AEC-Q100 | |
Length | 5mm | |
Maximum Operating Temperature | +85 °C | |
Width | 5mm | |
Instruction Set Architecture | ARM | |
Height | 0.95mm | |
Number of LIN Channels | 0 | |
Maximum Number of Ethernet Channels | 0 | |
ADCs | 10 x 12 bit | |
Number of ADC Units | 1 | |
Program Memory Type | Flash | |
Number of PCI Channels | 0 | |
Number of Ethernet Channels | 0 | |
Minimum Operating Temperature | -40 °C | |
Pulse Width Modulation | 1 (10 Channel) | |
Dimensions | 5 x 5 x 0.95mm | |
เลือกทั้งหมด | ||
---|---|---|
Brand Microchip | ||
Family Name ATSAMD | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Device Core ARM Cortex M0+ | ||
Data Bus Width 32bit | ||
Program Memory Size 64 kB | ||
Maximum Frequency 48MHz | ||
RAM Size 8 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 4 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 6 | ||
Number of USART Channels 6 | ||
Number of I2C Channels 4 | ||
Typical Operating Supply Voltage 3.3 V | ||
Automotive Standard AEC-Q100 | ||
Length 5mm | ||
Maximum Operating Temperature +85 °C | ||
Width 5mm | ||
Instruction Set Architecture ARM | ||
Height 0.95mm | ||
Number of LIN Channels 0 | ||
Maximum Number of Ethernet Channels 0 | ||
ADCs 10 x 12 bit | ||
Number of ADC Units 1 | ||
Program Memory Type Flash | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Pulse Width Modulation 1 (10 Channel) | ||
Dimensions 5 x 5 x 0.95mm | ||
- COO (Country of Origin):
- TH
Up to 48MHz operating frequency
Four serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, six 16-bit timer/counters, 32-bit Real Time clock and calendar, 10 PWM channels, one 10-channel 12-bit ADC, one 10-bit DAC
Support for up to 60 touch channels
1.62V to 3.63V power supply
Easy pin migration to SAMD20G and SAMD20J devices
Supported by Atmel Studio, ASF and the SAM D20 Xplained Pro kit
Additional Features
Processor
ARM Cortex-M0+ CPU running at up to 48MHz
Single-cycle hardware multiplier
Memories
64KB in-system self-programmable Flash
8KB SRAM memory
System
Power-on Reset and brown-out detection (BOR)
Internal and external clock options with 48MHdigital frequency locked loop (DFLL48M) and 48MHto 96MHz
fractional digital phase locked loop
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
