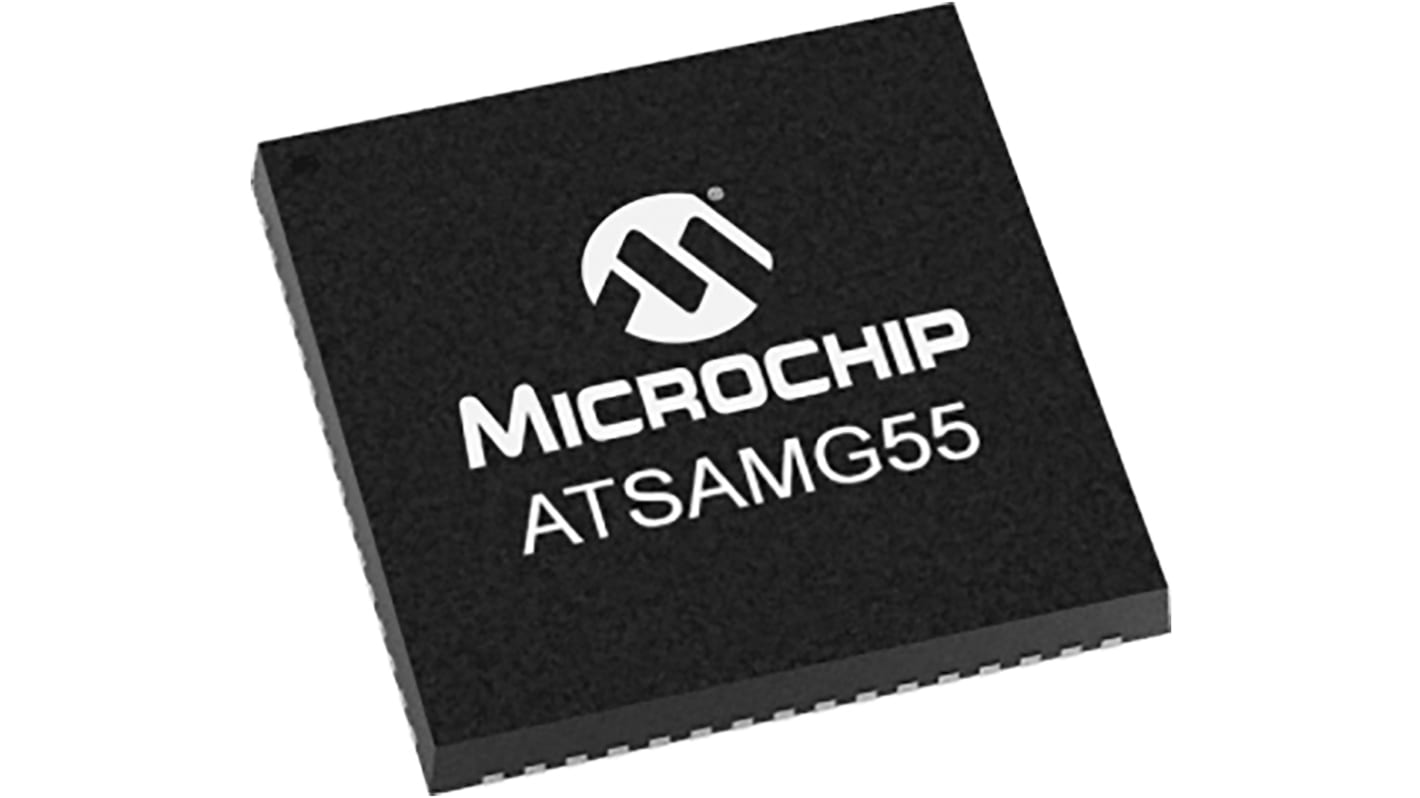

Microchip, 32bit ARM Cortex M4, ATSAM Microcontroller, 120MHz, 512 kB Flash, 64-Pin QFN
- RS Stock No.:
- 177-3488
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAMG55J19A-AU
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 ถาด ถาดละ 160 ชิ้น)*
THB30,770.40
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB32,924.32
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- จะส่งได้หลังจากวันที่ 17 กุมภาพันธ์ 2569 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย | ต่อถาด* |
|---|---|---|
| 160 - 160 | THB192.315 | THB30,770.40 |
| 320 - 480 | THB188.084 | THB30,093.44 |
| 640 + | THB184.046 | THB29,447.36 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 177-3488
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAMG55J19A-AU
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATSAM | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | ARM Cortex M4 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 512 kB | |
| Maximum Frequency | 120MHz | |
| RAM Size | 176 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 8 | |
| Number of I2C Channels | 2 | |
| Number of UART Channels | 0 | |
| Typical Operating Supply Voltage | 3.3 V | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 8 | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Pulse Width Modulation | 1 (2 Channel) | |
| Dimensions | 7.5 x 7.5 x 0.85mm | |
| Width | 7.5mm | |
| Height | 0.85mm | |
| Length | 7.5mm | |
| Number of ADC Units | 1 | |
| Automotive Standard | AEC-Q100 | |
| Maximum Operating Temperature | +85 °C | |
| ADCs | 8 x 12 bit | |
| Program Memory Type | Flash | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | Harvard | |
| Minimum Operating Temperature | -40 °C | |
| Number of PCI Channels | 8 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name ATSAM | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core ARM Cortex M4 | ||
Data Bus Width 32bit | ||
Program Memory Size 512 kB | ||
Maximum Frequency 120MHz | ||
RAM Size 176 kB | ||
USB Channels 1 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 8 | ||
Number of I2C Channels 2 | ||
Number of UART Channels 0 | ||
Typical Operating Supply Voltage 3.3 V | ||
Number of CAN Channels 0 | ||
Number of USART Channels 8 | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Pulse Width Modulation 1 (2 Channel) | ||
Dimensions 7.5 x 7.5 x 0.85mm | ||
Width 7.5mm | ||
Height 0.85mm | ||
Length 7.5mm | ||
Number of ADC Units 1 | ||
Automotive Standard AEC-Q100 | ||
Maximum Operating Temperature +85 °C | ||
ADCs 8 x 12 bit | ||
Program Memory Type Flash | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture Harvard | ||
Minimum Operating Temperature -40 °C | ||
Number of PCI Channels 8 | ||
- COO (Country of Origin):
- TW
ARM Cortex-M4 with up to 16Kb SRAM on I/D bus providing 0 wait state execution at up to
120MHz
MPU
DSP Instructions
FPU Thumb®-2 instruction set
Note: 1. 120MHz with VDDCOREXT120 or with VDDCORE trimmed by regulator.
Memories
Up to 512Kb embedded Flash
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
