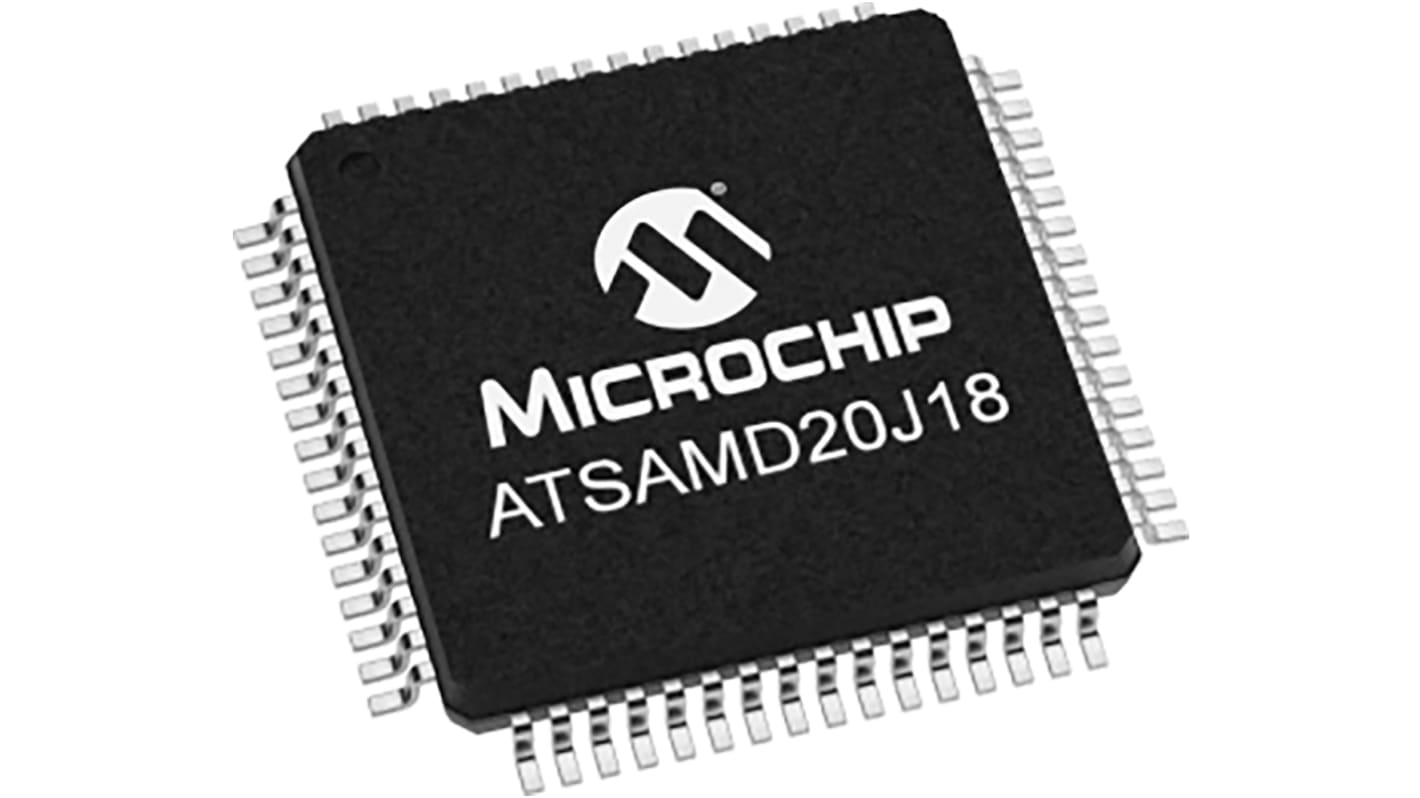

Microchip, 32bit ARM Cortex M0+, ATSAMD Microcontroller, 48MHz, 256 kB Flash, 64-Pin TQFP
- RS Stock No.:
- 177-3473
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAMD20J18A-AU
- ผู้ผลิต / Manufacturer:
- Microchip
ราคา / Price Each (In a Tray of 160)**
THB117.019
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB125.21
(รวมภาษีมูลค่าเพิ่ม)
* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ
ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)
ชิ้น | ต่อหน่วย | ต่อถาด** |
|---|---|---|
| 160 - 160 | THB117.019 | THB18,723.04 |
| 320 - 480 | THB114.445 | THB18,311.20 |
| 640 + | THB111.987 | THB17,917.92 |
**ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 177-3473
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAMD20J18A-AU
- ผู้ผลิต / Manufacturer:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATSAMD | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | ARM Cortex M0+ | |
| Data Bus Width | 32bit | |
| Program Memory Size | 256 kB | |
| Maximum Frequency | 48MHz | |
| RAM Size | 32 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 6 | |
| Typical Operating Supply Voltage | 3.3 V | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 6 | |
| Number of I2C Channels | 6 | |
| Number of UART Channels | 6 | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | ARM | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Automotive Standard | AEC-Q100 | |
| Number of ADC Units | 1 | |
| Length | 10mm | |
| ADCs | 20 x 12 bit | |
| Number of LIN Channels | 0 | |
| Height | 1.05mm | |
| Width | 10mm | |
| Dimensions | 10 x 10 x 1.05mm | |
| Pulse Width Modulation | 1 (16 Channel) | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name ATSAMD | ||
Package Type TQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core ARM Cortex M0+ | ||
Data Bus Width 32bit | ||
Program Memory Size 256 kB | ||
Maximum Frequency 48MHz | ||
RAM Size 32 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 6 | ||
Typical Operating Supply Voltage 3.3 V | ||
Number of CAN Channels 0 | ||
Number of USART Channels 6 | ||
Number of I2C Channels 6 | ||
Number of UART Channels 6 | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture ARM | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Automotive Standard AEC-Q100 | ||
Number of ADC Units 1 | ||
Length 10mm | ||
ADCs 20 x 12 bit | ||
Number of LIN Channels 0 | ||
Height 1.05mm | ||
Width 10mm | ||
Dimensions 10 x 10 x 1.05mm | ||
Pulse Width Modulation 1 (16 Channel) | ||
Program Memory Type Flash | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
