Microchip, 8 bit PIC, PIC12F683 Microcontroller, 20 MHz, 3.5kB FLASH, 8-Pin SOIC
- RS Stock No.:
- 177-2949
- Mfr. Part No.:
- PIC12F683T-I/SN
- Brand:
- Microchip

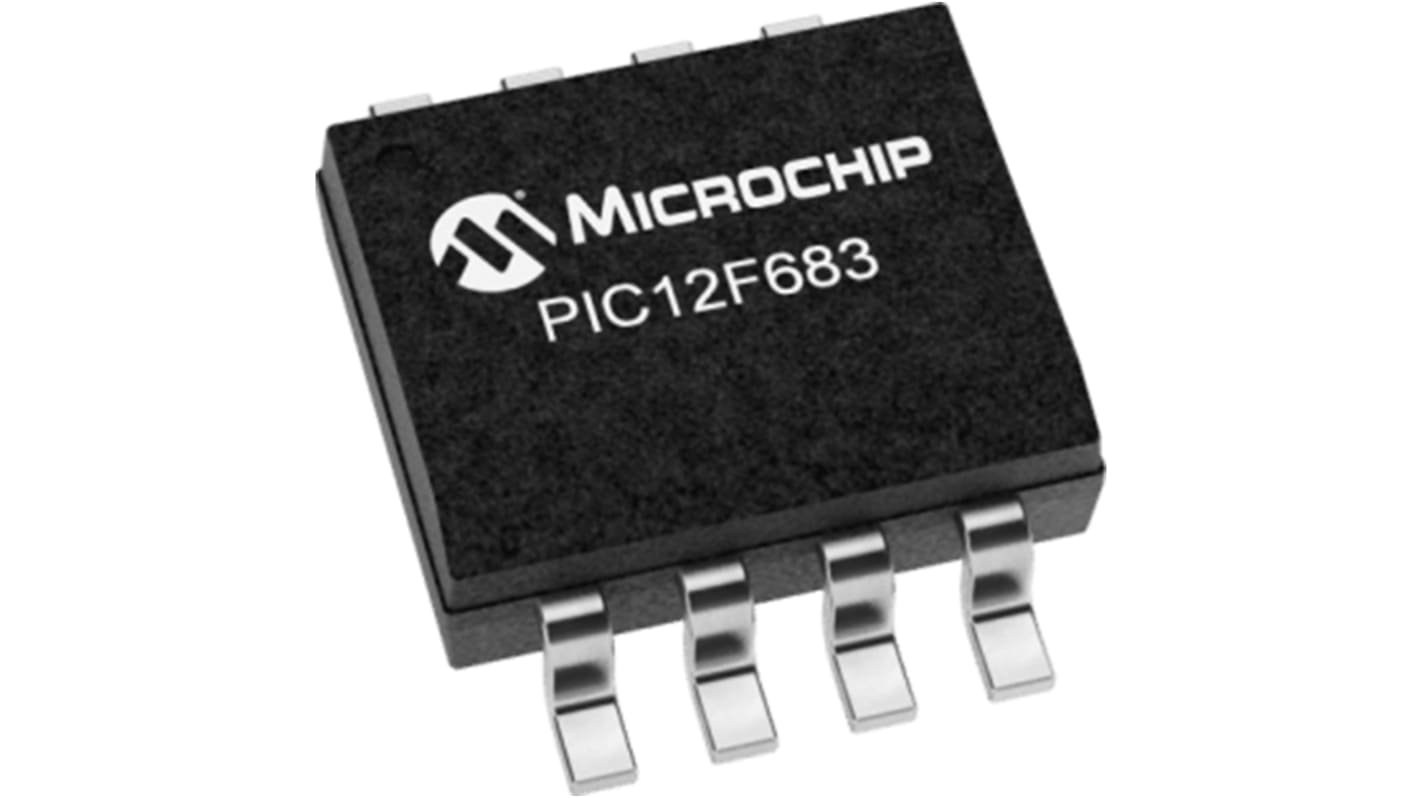

Image representative of range
Bulk discount available
Subtotal (1 reel of 3300 units)*
THB252,456.60
(exc. VAT)
THB270,128.10
(inc. VAT)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- จะส่งได้หลังจากวันที่ 12 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units | Per unit | Per Reel* |
|---|---|---|
| 3300 - 3300 | THB76.502 | THB252,456.60 |
| 6600 - 9900 | THB74.819 | THB246,902.70 |
| 13200 + | THB73.212 | THB241,599.60 |
*price indicative
- RS Stock No.:
- 177-2949
- Mfr. Part No.:
- PIC12F683T-I/SN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Series | PIC12F683 | |
| Product Type | Microcontroller | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 3.5kB | |
| Maximum Clock Frequency | 20MHz | |
| RAM Size | 128bit | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Power Dissipation Pd | 800mW | |
| Minimum Operating Temperature | -40°C | |
| Analogue Comparators | 1 | |
| Number of Programmable I/Os | 6 | |
| Maximum Operating Temperature | 85°C | |
| Length | 4.9mm | |
| Height | 1.5mm | |
| Width | 3.9 mm | |
| Standards/Approvals | RoHS | |
| Minimum Supply Voltage | 4.5V | |
| Number of Timers | 2 | |
| Instruction Set Architecture | RISC | |
| Automotive Standard | ISO/TS 16949 | |
| Program Memory Type | FLASH | |
| ADCs | 4 x 10 Bit | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Series PIC12F683 | ||
Product Type Microcontroller | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 8 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 3.5kB | ||
Maximum Clock Frequency 20MHz | ||
RAM Size 128bit | ||
Maximum Supply Voltage 5.5V | ||
Maximum Power Dissipation Pd 800mW | ||
Minimum Operating Temperature -40°C | ||
Analogue Comparators 1 | ||
Number of Programmable I/Os 6 | ||
Maximum Operating Temperature 85°C | ||
Length 4.9mm | ||
Height 1.5mm | ||
Width 3.9 mm | ||
Standards/Approvals RoHS | ||
Minimum Supply Voltage 4.5V | ||
Number of Timers 2 | ||
Instruction Set Architecture RISC | ||
Automotive Standard ISO/TS 16949 | ||
Program Memory Type FLASH | ||
ADCs 4 x 10 Bit | ||
The Low Pin-count (8) PIC® Flash microcontroller products offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0-5.5 volts, on-board EEPROM Data Memory, and nanoWatt Technology. Standard analog peripherals include up to 4 channels of 10-bit A/D, an analog comparator module with a single comparator, programmable on-chip voltage reference and a Standard Capture/Compare/PWM (CCP) module.
256 bytes of EEPROM data memory
Extended WDT
Precision internal oscillator – software selectable 8 MHz – 32 KHz.
nanoWatt Technology
Software selectable BOR
