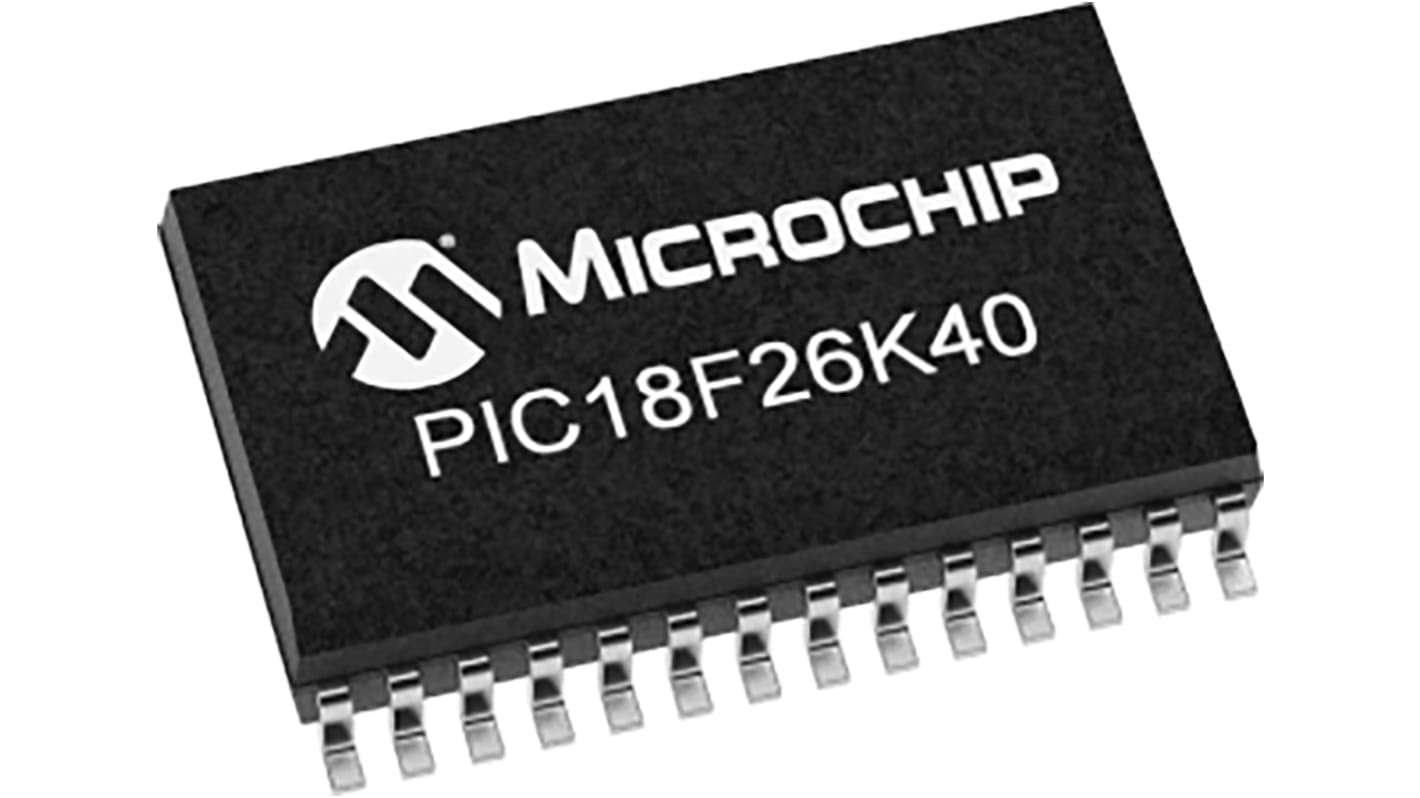

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 64 kB Flash, 28-Pin SOIC

RS Stock No.:: 177-2717
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC18F26K40-I/SO
ผู้ผลิต:: Microchip

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 64 kB Flash, 28-Pin SOIC

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*

THB352.44

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB377.11

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้

ชิ้น	ต่อหน่วย	ต่อแพ็ค*
5 - 5	THB70.488	THB352.44
10 - 10	THB68.726	THB343.63
15 +	THB67.668	THB338.34

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 177-2717
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC18F26K40-I/SO
ผู้ผลิต:: Microchip

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Family Name	PIC18F
	Package Type	SOIC
	Mounting Type	Surface Mount
	Pin Count	28
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	64 kB
	Maximum Frequency	64MHz
	RAM Size	3.615 kB
	USB Channels	0
	Number of PWM Units	1 x 10 bit
	Number of SPI Channels	2
	Number of UART Channels	2
	Number of CAN Channels	0
	Typical Operating Supply Voltage	5.5 (Maximum) V
	Number of USART Channels	2
	Number of I2C Channels	2
	Maximum Number of Ethernet Channels	0
	Pulse Width Modulation	1 (2 x 10 bit)
	Dimensions	17.9 x 7.5 x 2.35mm
	Width	7.5mm
	Height	2.35mm
	Number of LIN Channels	0
	Instruction Set Architecture	RISC
	Number of ADC Units	1
	Minimum Operating Temperature	-40 °C
	ADCs	24 x 10 bit
	Program Memory Type	Flash
	Length	17.9mm
	Maximum Operating Temperature	+85 °C
	Number of PCI Channels	0
	Number of Ethernet Channels	0

	เลือกทั้งหมด
	Brand Microchip
	Family Name PIC18F
	Package Type SOIC
	Mounting Type Surface Mount
	Pin Count 28
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 64 kB
	Maximum Frequency 64MHz
	RAM Size 3.615 kB
	USB Channels 0
	Number of PWM Units 1 x 10 bit
	Number of SPI Channels 2
	Number of UART Channels 2
	Number of CAN Channels 0
	Typical Operating Supply Voltage 5.5 (Maximum) V
	Number of USART Channels 2
	Number of I2C Channels 2
	Maximum Number of Ethernet Channels 0
	Pulse Width Modulation 1 (2 x 10 bit)
	Dimensions 17.9 x 7.5 x 2.35mm
	Width 7.5mm
	Height 2.35mm
	Number of LIN Channels 0
	Instruction Set Architecture RISC
	Number of ADC Units 1
	Minimum Operating Temperature -40 °C
	ADCs 24 x 10 bit
	Program Memory Type Flash
	Length 17.9mm
	Maximum Operating Temperature +85 °C
	Number of PCI Channels 0
	Number of Ethernet Channels 0

Datasheet

COO (Country of Origin):: TH

PIC18(L)F25K40 microcontrollers combine large Flash/EE/RAM memory, rich peripheral integration, XLP and 5V support to suit a variety of general purpose applications. These 28-pin devices deliver Core Independent Peripherals such as CWG, WWDT, CRC/Memory Scan, Hardware CVD, Zero-Cross Detect and Peripheral Pin Select, providing for increased design flexibility and lower system cost.

PIC18 Core with 83 Instructions, 31 Stack Levels

Internal 64MHz oscillator

Operating Voltage Range:- ’F’ Version (2.3V – 5.5V)- Low Power ’LF’ variant (1.8V –3.6V)

Temperature Range:- Industrial Version (-40C to 85C)- Extended Version (-40C to 125C)

MEMORIES:

16 KB Flash Program Memory with self read/write capability

1024 Bytes Data SRAM Memory

256 Bytes of EEPROM

INTELLIGENT ANALOG:

24 x 10-bit ADC channels

1 x 5-bit DAC

2 x Comparators

Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels

Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders

1 x Zero-Cross Detect

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 64 kB Flash, 28-Pin SOIC
