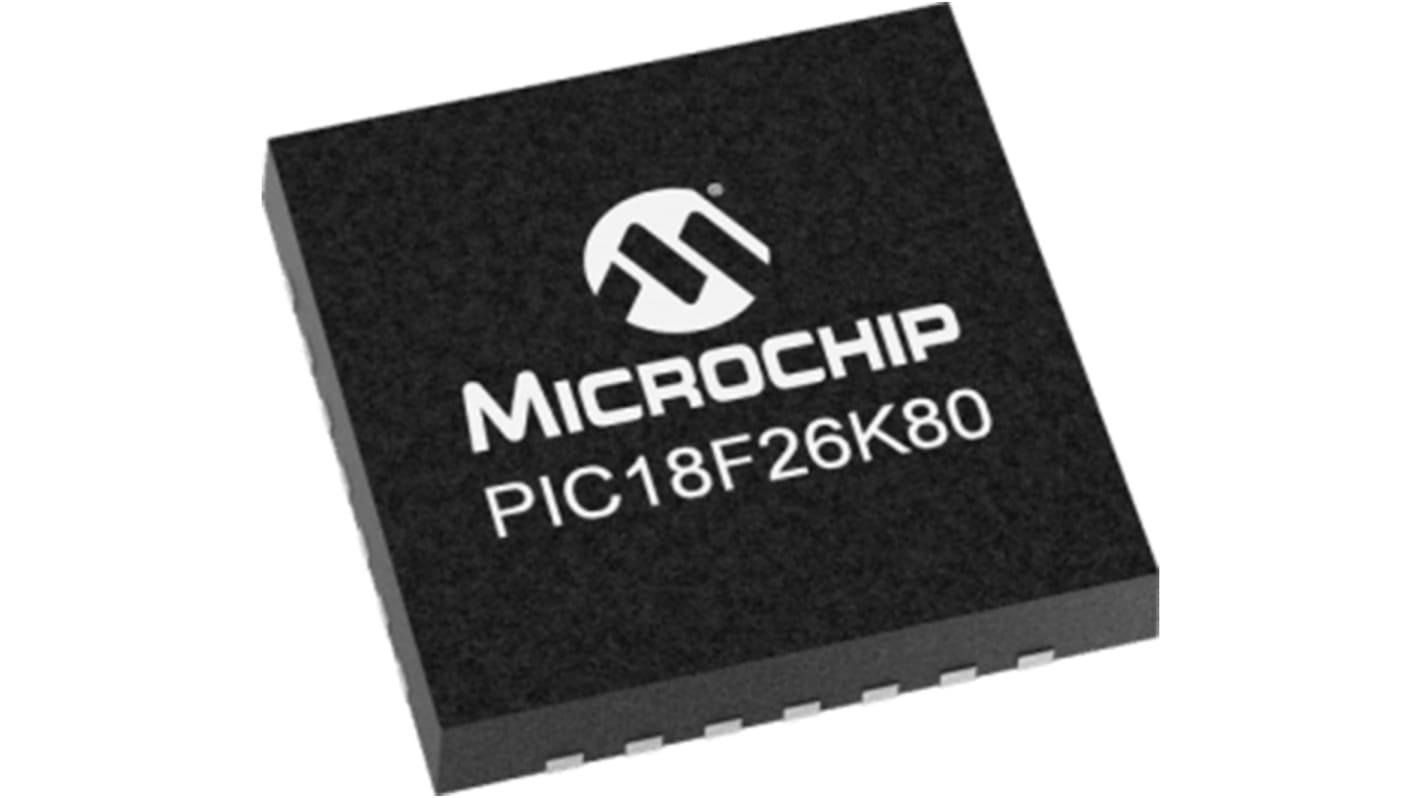

Microchip, 8bit PIC, PIC18LF Microcontroller, 64MHz, 64 kB Flash, 28-Pin QFN

RS Stock No.:: 177-2538
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC18LF26K80-I/MM
ผู้ผลิต:: Microchip

Microchip, 8bit PIC, PIC18LF Microcontroller, 64MHz, 64 kB Flash, 28-Pin QFN

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 แพ็ค แพ็คละ 2 ชิ้น)*

THB295.47

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB316.152

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้

ชิ้น	ต่อหน่วย	ต่อแพ็ค*
2 - 14	THB147.735	THB295.47
16 - 28	THB144.045	THB288.09
30 +	THB141.825	THB283.65

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 177-2538
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC18LF26K80-I/MM
ผู้ผลิต:: Microchip

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Family Name	PIC18LF
	Package Type	QFN
	Mounting Type	Surface Mount
	Pin Count	28
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	64 kB
	Maximum Frequency	64MHz
	RAM Size	3.684 kB
	USB Channels	0
	Number of PWM Units	1 x 16 bit
	Number of SPI Channels	1
	Number of USART Channels	2
	Typical Operating Supply Voltage	5.5 (Maximum) V
	Number of I2C Channels	1
	Number of UART Channels	2
	Number of CAN Channels	1
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	Harvard
	Number of ADC Units	1
	Maximum Operating Temperature	+85 °C
	ADCs	8 x 12 bit
	Data Rate	16Mbit/s
	Height	0.95mm
	Number of LIN Channels	0
	Number of Ethernet Channels	0
	Pulse Width Modulation	1 (4 x 16 bit)
	Dimensions	6 x 6 x 0.95mm
	Width	6mm
	Number of PCI Channels	0
	Program Memory Type	Flash
	Minimum Operating Temperature	-40 °C
	Length	6mm

	เลือกทั้งหมด
	Brand Microchip
	Family Name PIC18LF
	Package Type QFN
	Mounting Type Surface Mount
	Pin Count 28
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 64 kB
	Maximum Frequency 64MHz
	RAM Size 3.684 kB
	USB Channels 0
	Number of PWM Units 1 x 16 bit
	Number of SPI Channels 1
	Number of USART Channels 2
	Typical Operating Supply Voltage 5.5 (Maximum) V
	Number of I2C Channels 1
	Number of UART Channels 2
	Number of CAN Channels 1
	Maximum Number of Ethernet Channels 0
	Instruction Set Architecture Harvard
	Number of ADC Units 1
	Maximum Operating Temperature +85 °C
	ADCs 8 x 12 bit
	Data Rate 16Mbit/s
	Height 0.95mm
	Number of LIN Channels 0
	Number of Ethernet Channels 0
	Pulse Width Modulation 1 (4 x 16 bit)
	Dimensions 6 x 6 x 0.95mm
	Width 6mm
	Number of PCI Channels 0
	Program Memory Type Flash
	Minimum Operating Temperature -40 °C
	Length 6mm

Datasheet

COO (Country of Origin):: TH

PIC18F26K80 is a high performance 8-bit MCU with Integrated ECAN™ featuring eXtreme Low Power consumption. New features in PIC18F25K80 include low sleep current for low power application, 1.8V to 5.5V operating voltage for automotive, building control, elevator control and industrial application, Timers/Enhanced Compare/Capture/PWMs for precision timing control.

20 nA Sleep mode (Watch Webinar)

300nA Watch Dog Timer operation in Sleep modes

Integrated ECAN™ conforming to CAN 2.0B active specification

Extreme Low Power Sleep mode ideal for battery applications

Operating voltage 1.8V – 5.5V

Charge Time Measurement Unit (CTMU) supports Touch sensing and advanced sensing applications

8 ch, 12-bit ADC

4 Capture / Compare / PWM modules and 1 Enhanced Capture / Compare / PWM modules

1 MSSP serial ports for SPI or I2C™ communication

2 Enhanced USART modules

Two analog comparators

Self programming Flash supports 10k erase/write cycles & 20 years retention

Microchip, 8bit PIC, PIC18LF Microcontroller, 64MHz, 64 kB Flash, 28-Pin QFN
