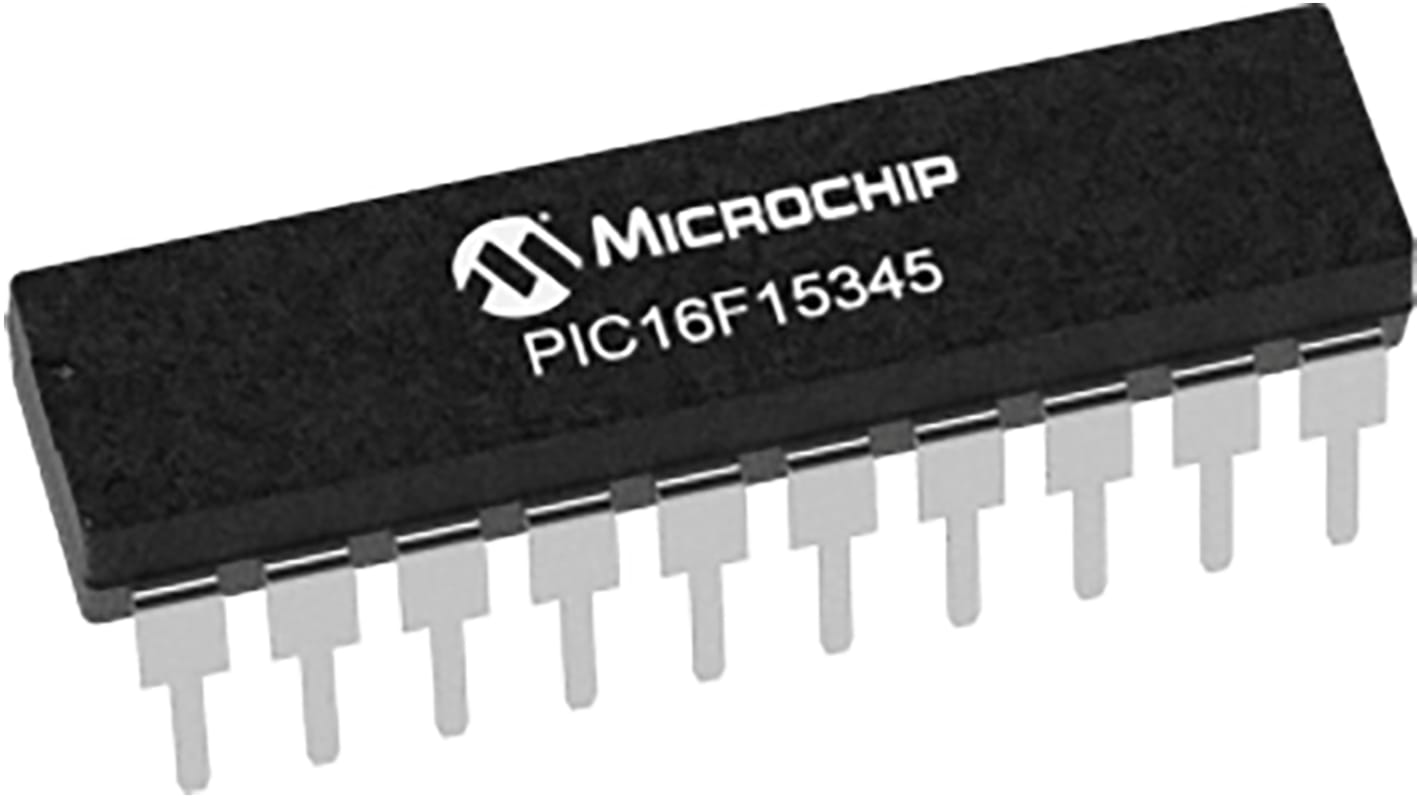

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 14 kB Flash, 20-Pin PDIP

Brand

Microchip

Family Name

PIC16F

Package Type

PDIP

Mounting Type

Through Hole

Pin Count

20

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

14 kB

Maximum Frequency

32MHz

RAM Size

1 kB

USB Channels

0

Number of PWM Units

1 x 10 bit

Number of SPI Channels

1

Number of I2C Channels

1

Typical Operating Supply Voltage

5.5 (Maximum) V

Number of CAN Channels

0

Number of UART Channels

2

Number of USART Channels

2

Number of ADC Units

1

ADCs

17 x 10 bit

Maximum Operating Temperature

+85 °C

Maximum Number of Ethernet Channels

0

Instruction Set Architecture

RISC

Pulse Width Modulation

1 (4 x 10 bit)

Length

26.92mm

Width

7.11mm

Minimum Operating Temperature

-40 °C

Height

4.83mm

Number of LIN Channels

1

Program Memory Type

Flash

Dimensions

1.06 x 0.28 x 0.19in

Number of Ethernet Channels

0

Number of PCI Channels

0
